L322 Fast Ethernet Media Converters 4-8
4.7 Alarm Configuration
Use the Alarm Output Configuration screen to set alarms to Major, Minor, or Off. See Figure 14. To
configure alarms:
Note: You must enable the Alarm Output option on the System Status & Configuration screen for
these settings to take effect.
Step 1. From the Main Menu, type "3," Alarm Configuration and press . The Alarm Output
Configuration screen appears.
Step 2. Select the number for the alarm you want to set and press .
Step 3. Press to cycle to Major, Minor, or Off and press .

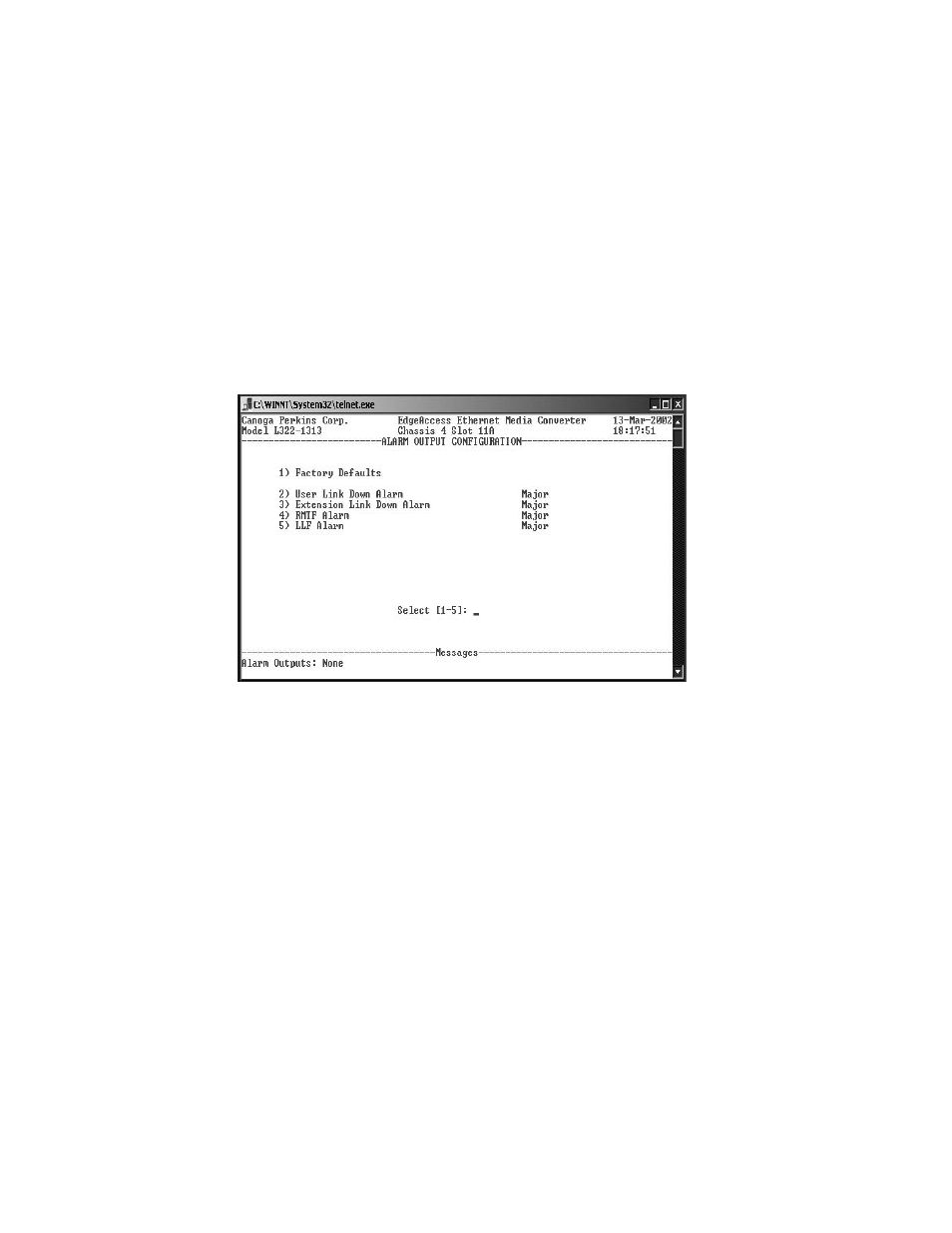

Figure 14. Alarm Output Configuration Screen
4.8 System Status and Alarms
Use the System Alarms screen to view alarms and faults on the CLIM. See Figure 15. To view alarm
status:
Step 1. From the Main Menu, type "4," System status, and press . The System Alarms screen
appears.
Step 2. When you finish checking the Alarm status, press to return to the Main Menu.
