L322 Fast Ethernet Media Converters 4-4
4.3.1 General Screen Format

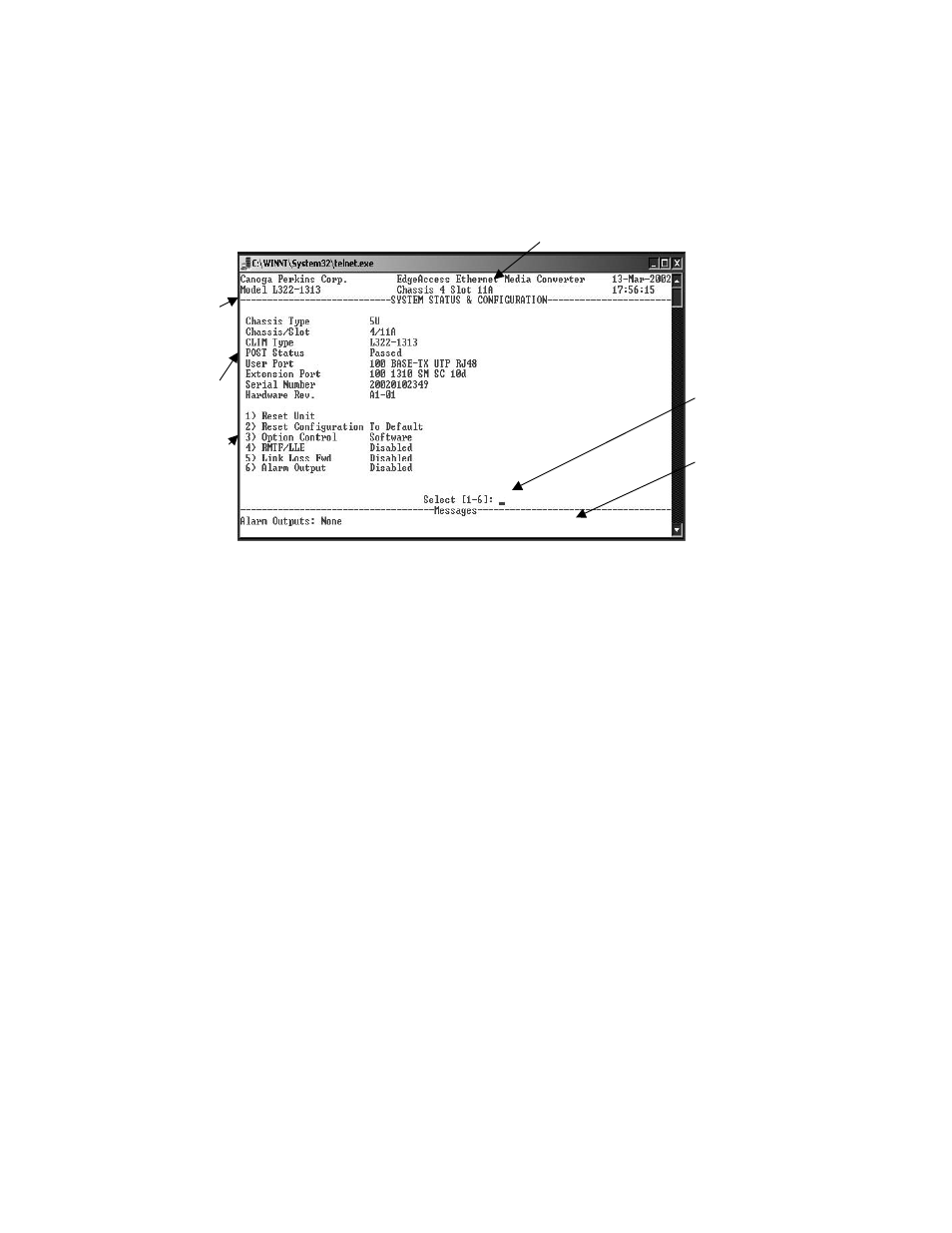

A typical screen, shown in Figure 9, includes standard descriptions and reference designations. Use
this and other screens to configure the system, set operational parameters, and verify the system
status. All screens use a common method for navigation.
Chassis and slot numbers
Screen navigation
instructions
Messages and
urgent status
Model number
Status reports
Change options
Figure 9. General Screen Format
Not all screens and menus provide options that you can change. Some menu items reach screens that
only report status, such as revision numbers, module type, or alarms. On other screens, you can move
through and select options, and enter data.
Use these keys to navigate the screens:
• Space bar When a menu item is highlighted, press to cycle through all options for that
item.
• Tab Press to move the highlight to the next column to the right.
• Enter Press to select the highlighted option for a menu item.
• Escape Press to return to the previous screen.
4.3.2 Login Menu
The first screen is the Login Menu. If this is your initial setup and no password has been set, type
"admin" and press at the prompt for the user name, then type "admin" and press at
the prompt for password. Otherwise, type your user name for Supervisor, Manager, or User level,
and press , then type your password and press .
