EdgeAccess Universal Chassis System
L322 Fast Ethernet Media Converters 2-2
SW1

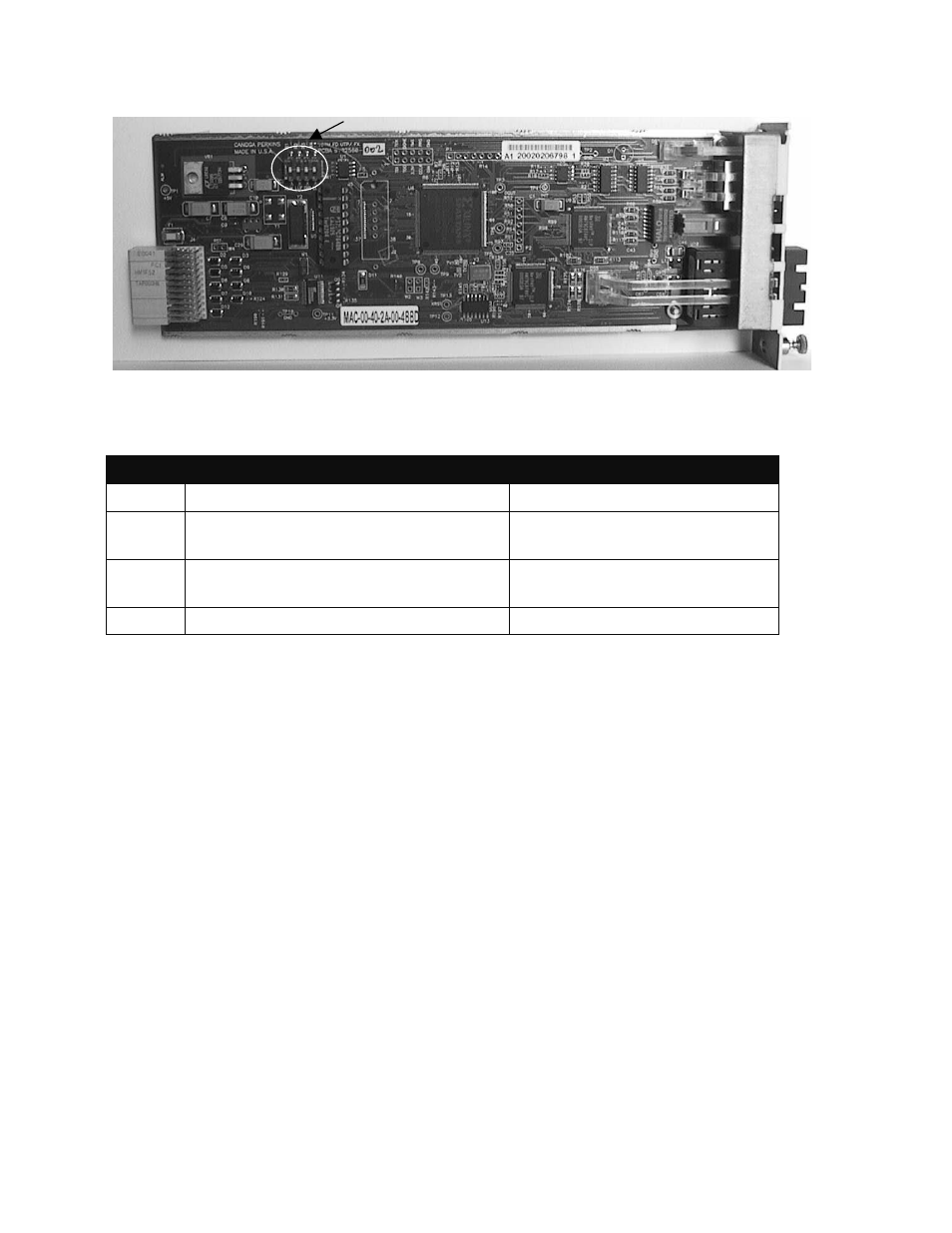

Figure 3. SW1 Location
Table 1. SW1 Functions
Function On Off
ALM Enable Alarm Disable Alarm
EXT Enable Link Loss Forwarding (LLF)
propagating from Extension Port to User Port Disable LLF propagating from
Extension Port to User Port
USR Enable LLF propagating from User Port to
Extension Port Disable LLF propagating from User
Port to Extension Port
LLE Enable Link Loss Echo (LLE) Disable LLE
2.3.3 Install a CLIM in a BAM Host
Each BAM can hold up to two CLIMs. See Figure 4.
Follow these steps to install the BAM and the CLIM:
Step 1. Insert a BAM into an available slot. Slide the BAM into the rails and push it firmly into the
backplane, then tighten the captive screws. If you encounter resistance, pull the BAM out and
check that no connector pins are bent on the BAM or the chassis backplane.
Step 2. Insert a CLIM into an unused slot in the BAM. Slide the CLIM into the rails and push it
firmly into the backplane, then tighten the captive screw. If you encounter resistance, pull it out
and check that no connector pins are bent on the CLIM or the BAM backplane.
If you encounter more difficulty, contact Canoga Perkins at (818) 718-6300 for technical assistance.
Note: BAMs are hot-swappable and can be inserted or removed without disrupting data transfer in
other application modules.
