4.3.3 DMM Main Menu
After you log in, the Main Menu for the DMM appears; see Figure 10. This is the main management
screen for the DMM. for details on all menu options, see the Model 1500 Domain Management
Module Users Manual (for UCS 1000) or Model 1502 Domain Management Module Users Manual
(for UCS 1002). From this screen, you can access the CLIM by either of two methods.

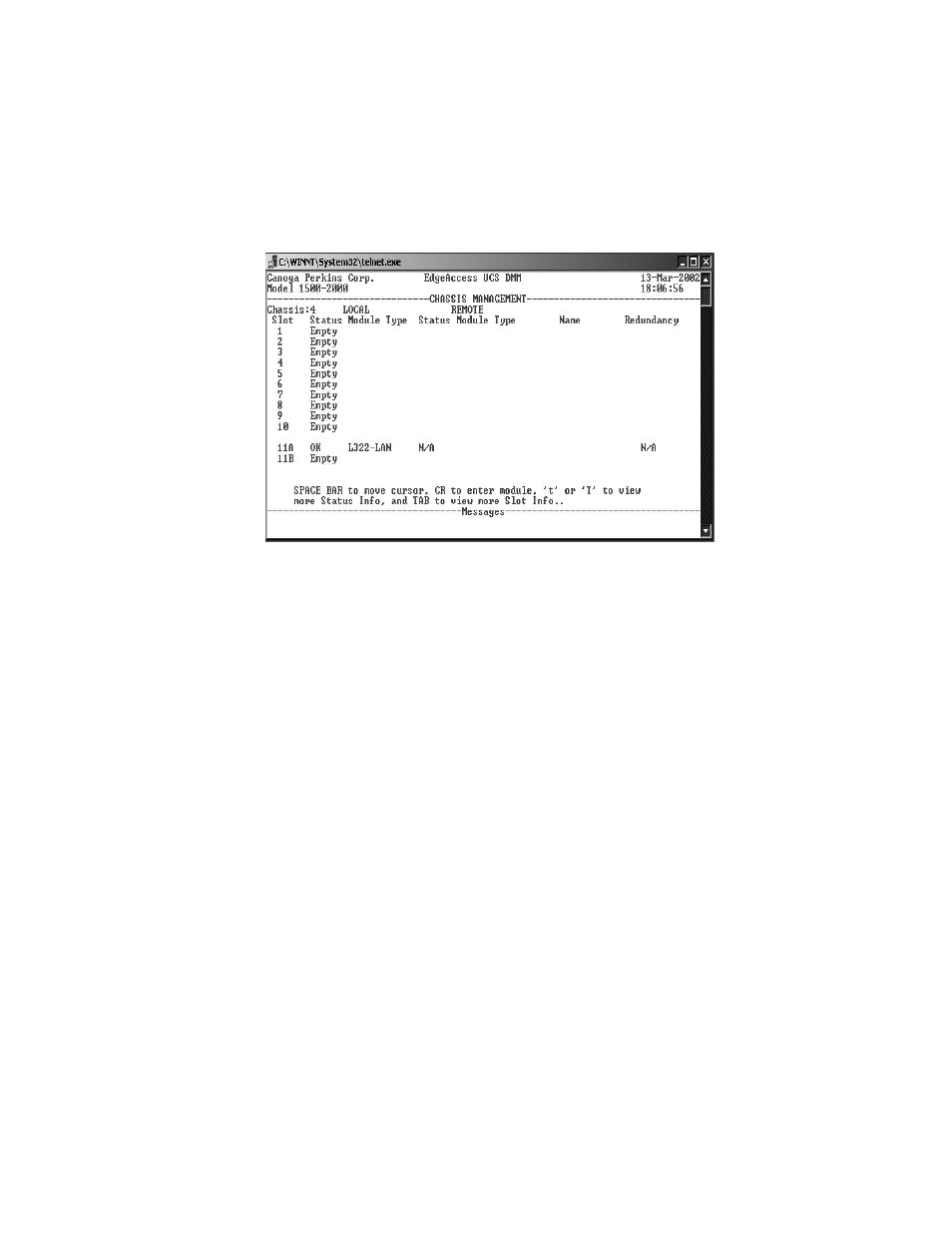

Figure 10. DMM Chassis Management Screen
• To access the CLIM directly, follow these steps:
a. Type 4, "Manage or access a specific Module," and press .
b. Type the slot and chassis numbers with a slash, such as "1/4" for chassis 1, slot 4, and then
press .
c. At the Module Menu, type 4, "Access User Interface," then press to reach the Main
Menu screen for the CLIM.
• To access the chassis, and then select the CLIM, follow these steps:
a. Type 3, "Manage or access a specific Chassis," and press , press to cycle
between the chassis in the domain, and then press to select the chassis.
b. At the Chassis Management screen (see Figure 10), press to cycle to the slot number
for the CLIM, then press to reach the Main Menu screen for the CLIM.
Note: In a UCS 1000 chassis, the slots in the BAM appear as A and B for the slot that the BAM is
in.
