Page 21
EdgeAccess Universal Chassis System
L322 Fast Ethernet Media Converters
4-3

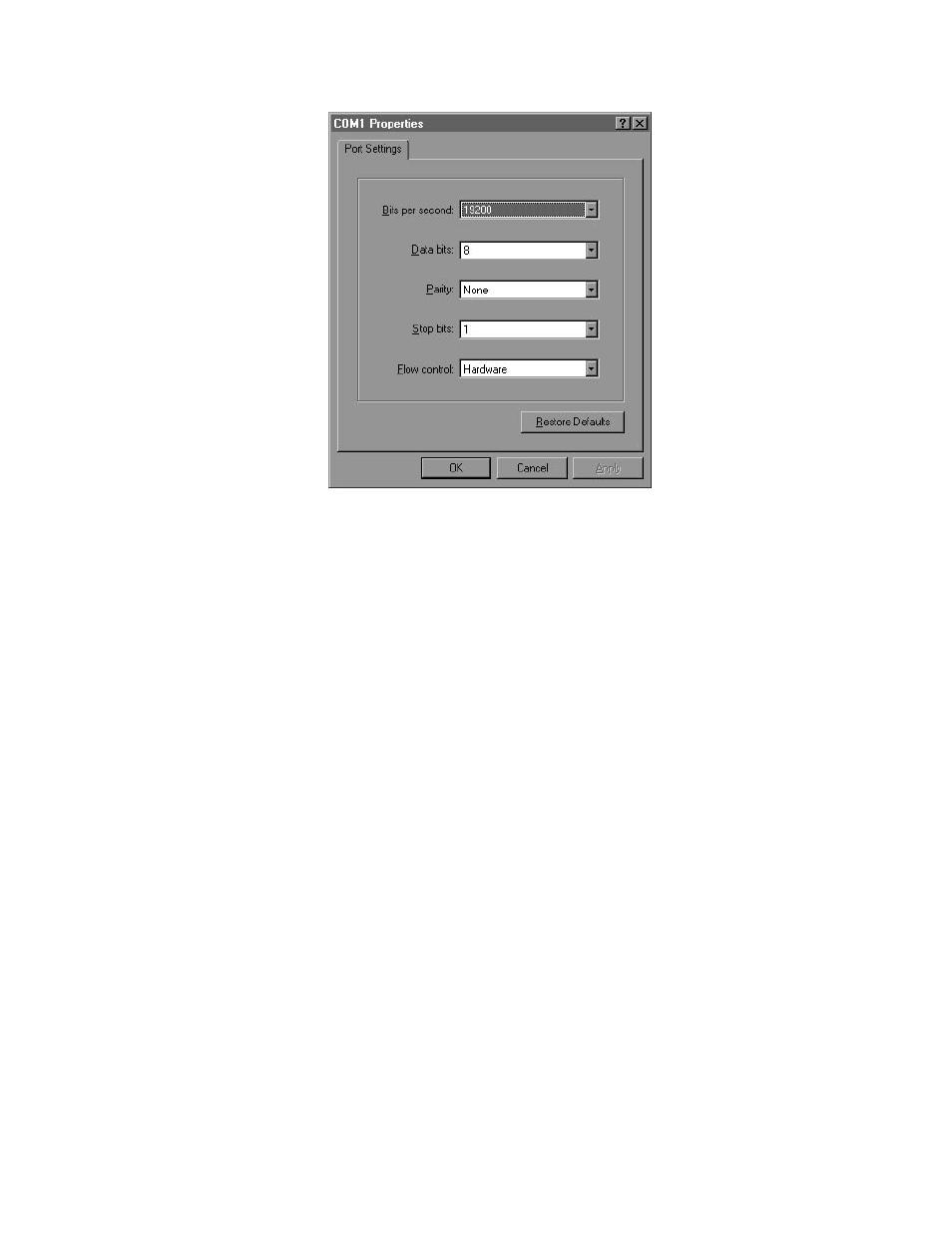

Figure 8. COM1 Properties Dialog
Step 6. Click OK. HyperTerminal connects to the system and the VT100 terminal emulation starts.
4.3
Management User Interface
The Management User Interface for the L322 provides screens for setup, monitoring, and diagnostics.
You can access the screens directly by connecting to the serial port of the DMM in the chassis or by
establishing a Telnet session with the DMM. For details, see the Model 1500 Domain Management
Module Users Manual (for UCS 1000) or Model 1502 Domain Management Module Users Manual
(for UCS 1002).
These sections discuss the screens for the CLIM, using a Telnet session for access.
