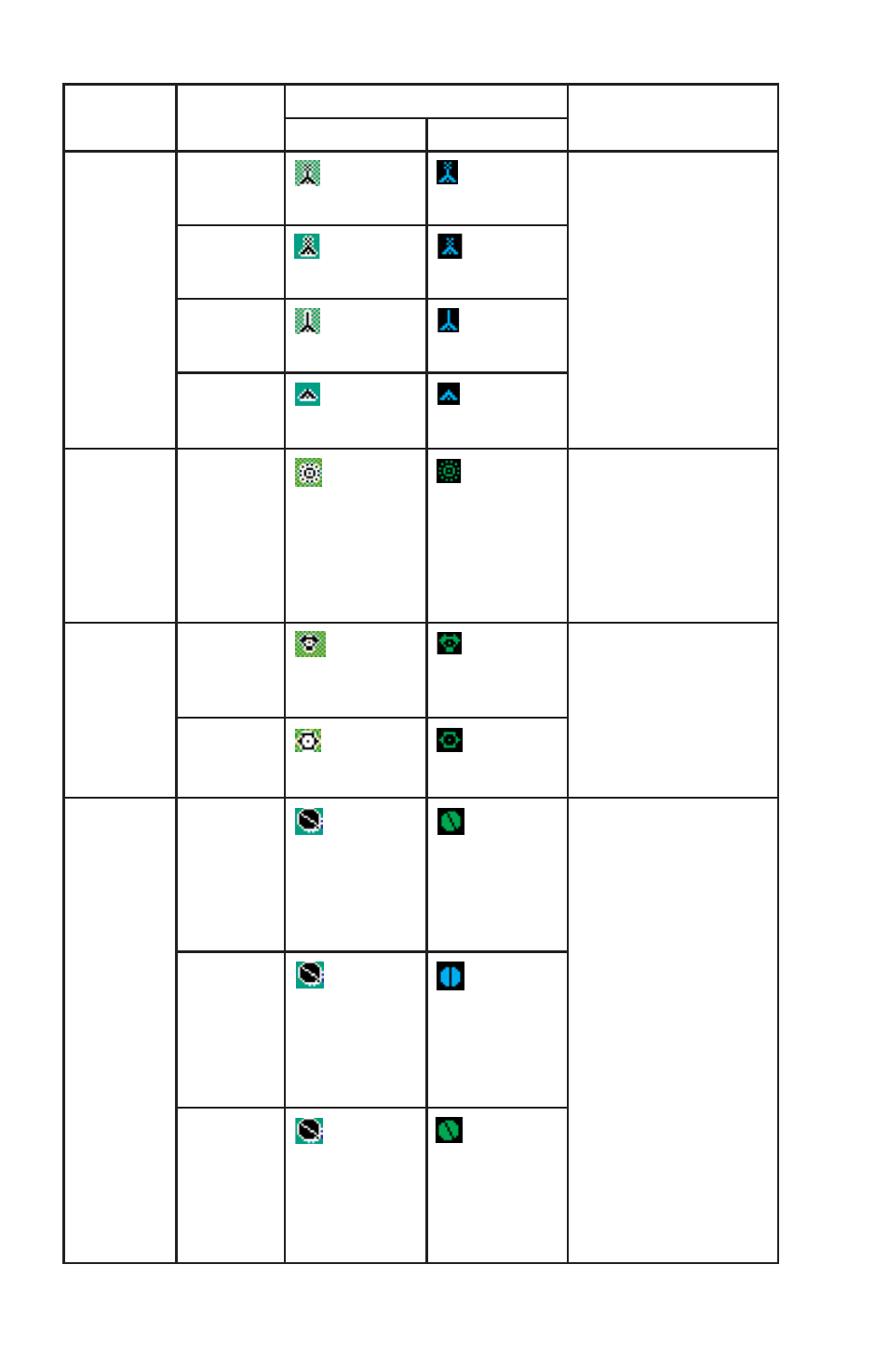

KMD 550/850 Appendix A
Feature
Conditions
Icon / Colors
Other Characteristics
TOPO on
TOPO off
Obstacles
Lighted -
Tall
Black icon
with white
on black label
Cyan icon
with white
on black label
May be enabled or dis-
abled based on Map
Setup page (2) setting.
The label will indicate
the MSL elevation fol-
lowed by the AGL eleva-
tion in parentheses (e.g.
“1546 (590)”).
Highlighted when the
icon is designated with
the joystick pointer.
Lighted -
Short
Black icon
with white
on black label
Cyan icon
with white
on black label
Unlighted -
Tall
Black icon
with white
on black label
Cyan icon
with white
on black label
Unlighted -
Short
Black icon
with white
on black label
Cyan icon
with white
on black label
NDBs
Black icon
with white
on black label
Green icon
with white
on black label
May be enabled or dis-
abled based on Map
Setup page (2) setting.
The label will indicate
the NDB’s identifier.
Highlighted when the
icon is designated with
the joystick pointer.
VORs
With DME
Black icon
with white
on black label
Green icon
with white
on black label
May be enabled or dis-
abled based on Map
Setup page (2) setting.
The label will indicate
the VOR’s identifier.
Highlighted when the
icon is designated with
the joystick pointer.
Without
DME
Black icon
with white
on black label
Green icon
with white
on black label
Airports
Has hard
runway +
IFR
approach
Solid black
circle with
line repre-
senting primary
runway and
white on black
label
Solid green
circle with
black line repre-
senting primary
runway and
white on black
label
May be enabled or dis-
abled based on Map
Setup page (2) setting.
When enabled, the air-
port label will identify the
ICAO code, city name or
airport name based on
the Map Setup page (1)
setting. Highlighted
when the icon is desig-
nated with the joystick
pointer. If the database
does not have runways
for the airport, then the
icon will not indicate a
runway (no line will be
shown).
Has hard
runway, no
IFR
approach
Solid black
circle with
line repre-
senting primary
runway and
white on black
label
Solid cyan
circle with
black line repre-
senting primary
runway and
white on black
label
IFR
approach
available
Solid black
circle with
line repre-
senting primary
runway and
white on black
label
Solid green
circle with
black line repre-
senting primary
runway and
white on black
label
