LINE MAX: This field can be set to the maximum range, in nautical
miles, that this item’s symbol is displayed on the map display.
NAME MAX: This field can
be set to the maximum range,
in nautical miles, that the text
name of this item is displayed
on the map display.
MIN: This field can be set to
the minimum range, in nau-
tical miles, that this item’s
symbol and text name is dis-
played on the map display.
Press NEXT to display Figure
25. Again, use the joystick to
select and change the desired
fields. The previous field descriptions also apply to this display. After
making all desired changes, press the SAVE & EXIT Key to save all
changes and exit the setup function. Figure 21 will again be displayed.
At any time the RESET VALUES key can be pressed to return to the
default setings on that partic-
ular display.
Note: Temporary Flight
Restrictions (TFR) will only
be displayed when there is a
valid XM subscription.
TEMPORARY FLIGHT
RESTRICTIONS
Temporary Flight Restrictions,
(TFR), are part of the products
received from the XM weather
service. If there is not an
active XM subscription TFR’s
will not be displayed. They will
only be displayed on the Map
Page of the KMD 550/
850. TFR’s are enabled from
the MAP Setup Page (4) as
shown in Figure 26. Changing
the settings for TFR’s is the
same as changing settings on
the map display.
An example of a TFR is
shown in Figure 27.
System Setup

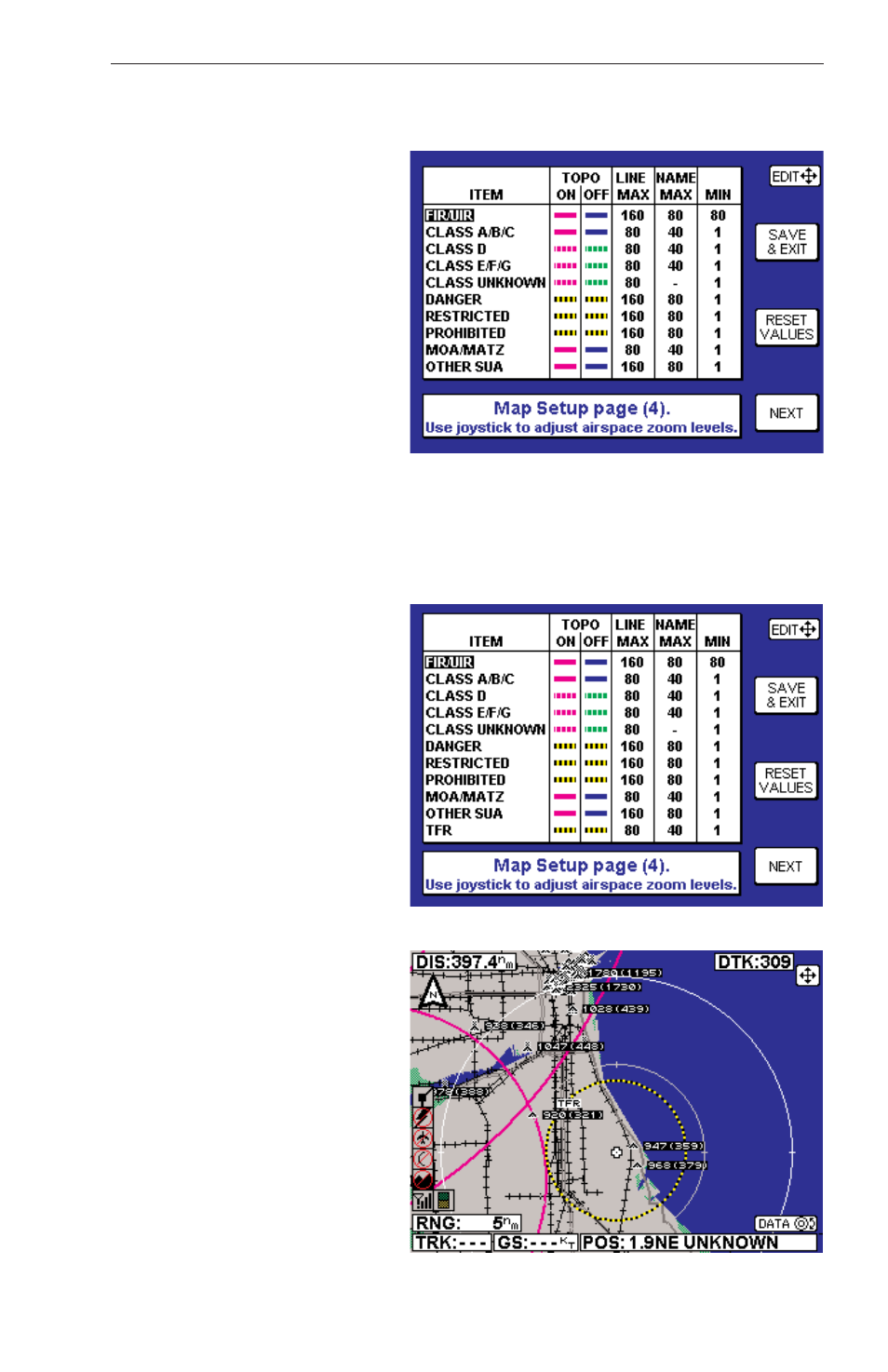

Figure 25
Figure 26
Figure 27
