24
KMD 550/850 Pilot's Guide

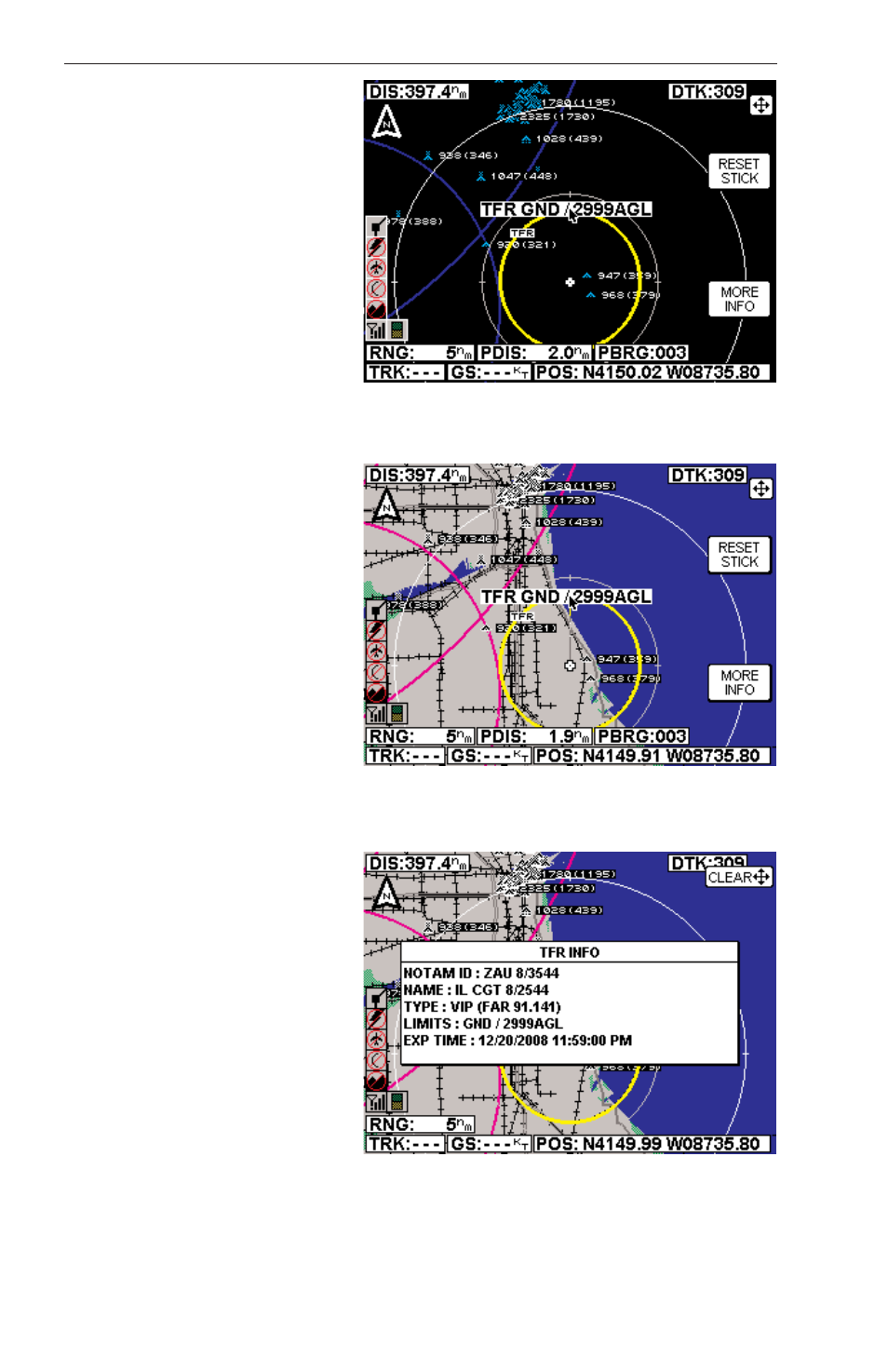

Use the joystick to cursor
over the boundary of the
TFR. A popup window will
display TFR and the floor
and ceiling of the restricted
area. Figure 28a shows the
display with the topo map off
and Figure 28b shows the
display with the topo map on.
Press the MORE INFO soft
key and another popup
window will display the pub-
lished detail on the restricted
area. See Figure 29.
Moving the joystick will clear
the popup windows.
Rev 9 Feb/2009
System Setup
Figure 28a
Figure 29
Figure 28b
