A-2
Rev 9 Feb/2009
KMD 550/850 Appendix A

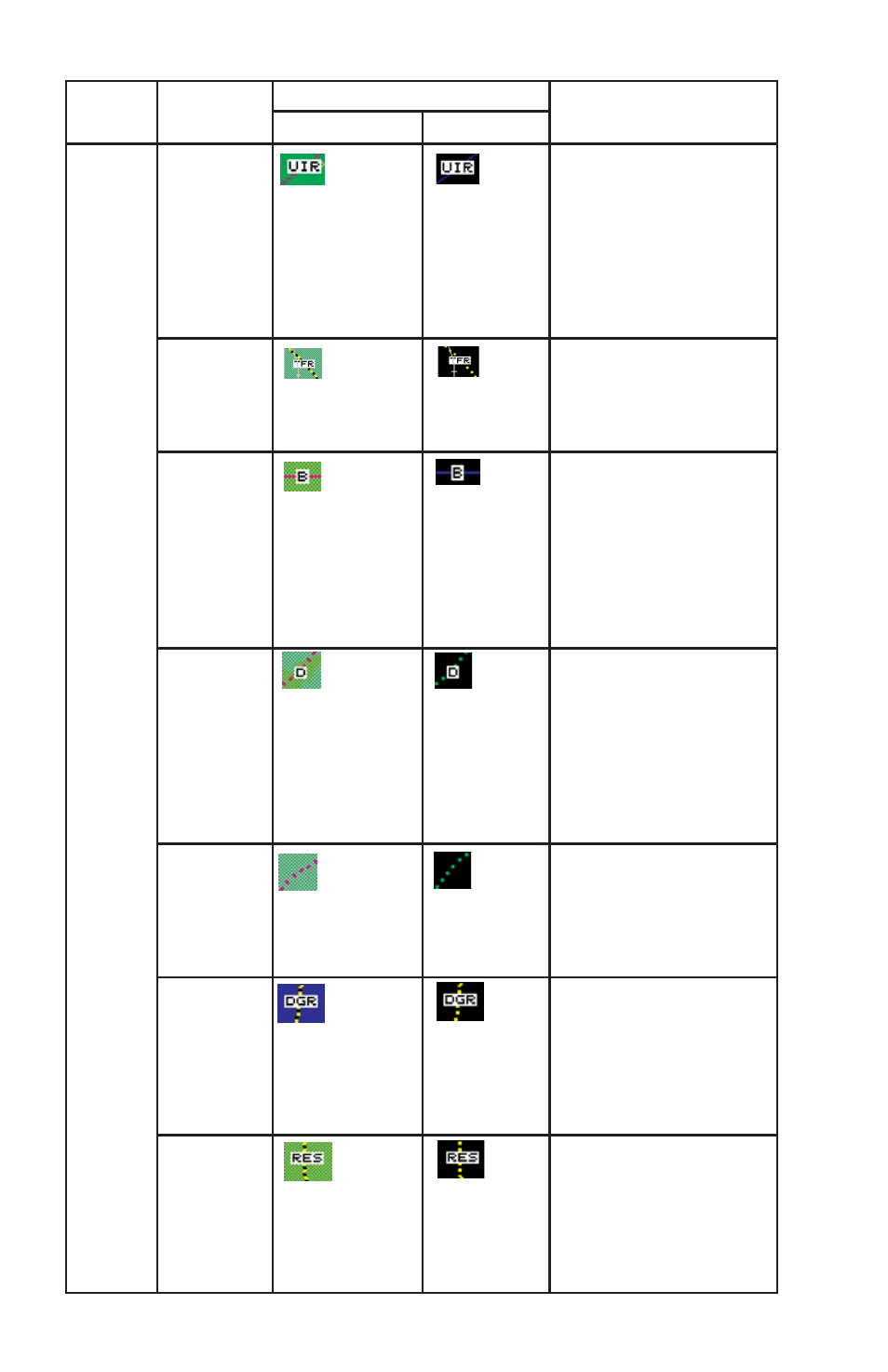

Feature
Conditions
Icon / Colors
Other Characteristics
TOPO on
TOPO off
Airspace
Boundary
FIR/UIR
Solid
magenta
line with black on
white label
Solid
blue
line with black
on white label
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer. The boundary
label will be “FIR”, “UIR” or
“F/U” as appropriate for the
airspace type.
Temporary
Flight
Restrictions
Yellow and
black
dashed line with
black on white
label
Yellow
and
black dashed
line with black
on white label
Boundary Label will be
TFR.
Class A/B/C
Solid
magenta
line with black on
white label
Solid
blue
line with black
on white label
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer. The boundary
label will be “A”, “B” or “C”
as appropriate for the air-
space type.
Class
D/E/F/G
Dashed
magenta
line with black on
white label
Green
dashed
line with black
on white label
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer. The boundary
label will be “D”, “E”, “F” or
“G” as appropriate for the
airspace type.
Class
Unknown
Dashed
magenta
line (no
label)
Green
dashed
line (no
label)
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer.
Danger
Yellow
and black
dashed
line with black on
white label
Yellow
and
black
dashed line
with black on
white label
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer. The boundary
label will be “DGR”.
Restricted
Yellow
and black
dashed
line with black on
white label
Yellow and
black dashed
line with black
on white label
May be enabled or dis-
abled based on Map Setup
page (4) setting.
Highlighted when the line
is designated with the joy-
stick pointer. The boundary
label will be “RES”.
