Rev 9 Feb/2009 KMD 550/850 Pilot's Guide
19
Operation
OVERLAY TYPE
M MO OD DE E F FL LIIG GH HT T P PL LA AN N S ST TO OR RM MS SC CO OP PE E ® ® T TR RA AF FF FIIC C M ME ET TA AR R D DA AT TA A L LIIN NK K S SC CIIT T T TF FR R
L LIIG GH HT TN NIIN NG G
MAP - TOPO ON Yes Yes1 Yes2 Yes No No Yes5
MAP - TOPO OFF Yes Yes1 Yes2 Yes No No Yes5
WX - Weather Radar Yes1 Yes Yes3 No No No No
WX - Stormscope ® Yes1 N/A No No No No No
WX - NEXRAD Yes Yes1 Yes No Yes Yes No
WX - Precipitation Type5 Yes No No No Yes Yes No
WX - Freezing Levels5 Yes No No No No No No
WX - Winds Aloft5 Yes No No No No No No
WX - Graphical METAR Yes No No N/A No No No
WX - Graphical AIRMET Yes Yes1 No No No No No
WX - Graphical SIGMET Yes Yes1 No No No No No
WX - Graphical Convective Yes Yes1 No No No No No
SIGMET
WX - Graphical Wx Watches Yes4 Yes1, 4 No No No No No
TERR Yes Yes1 Yes2 No No No No
TRFC Yes1 No N/A No No No No
1 Requires remote heading input
2 TCAS/TAS requires remote heading input
3 TIS requires remote heading input
4 Not available with XM
5 Not available with VHF Datalink FIS

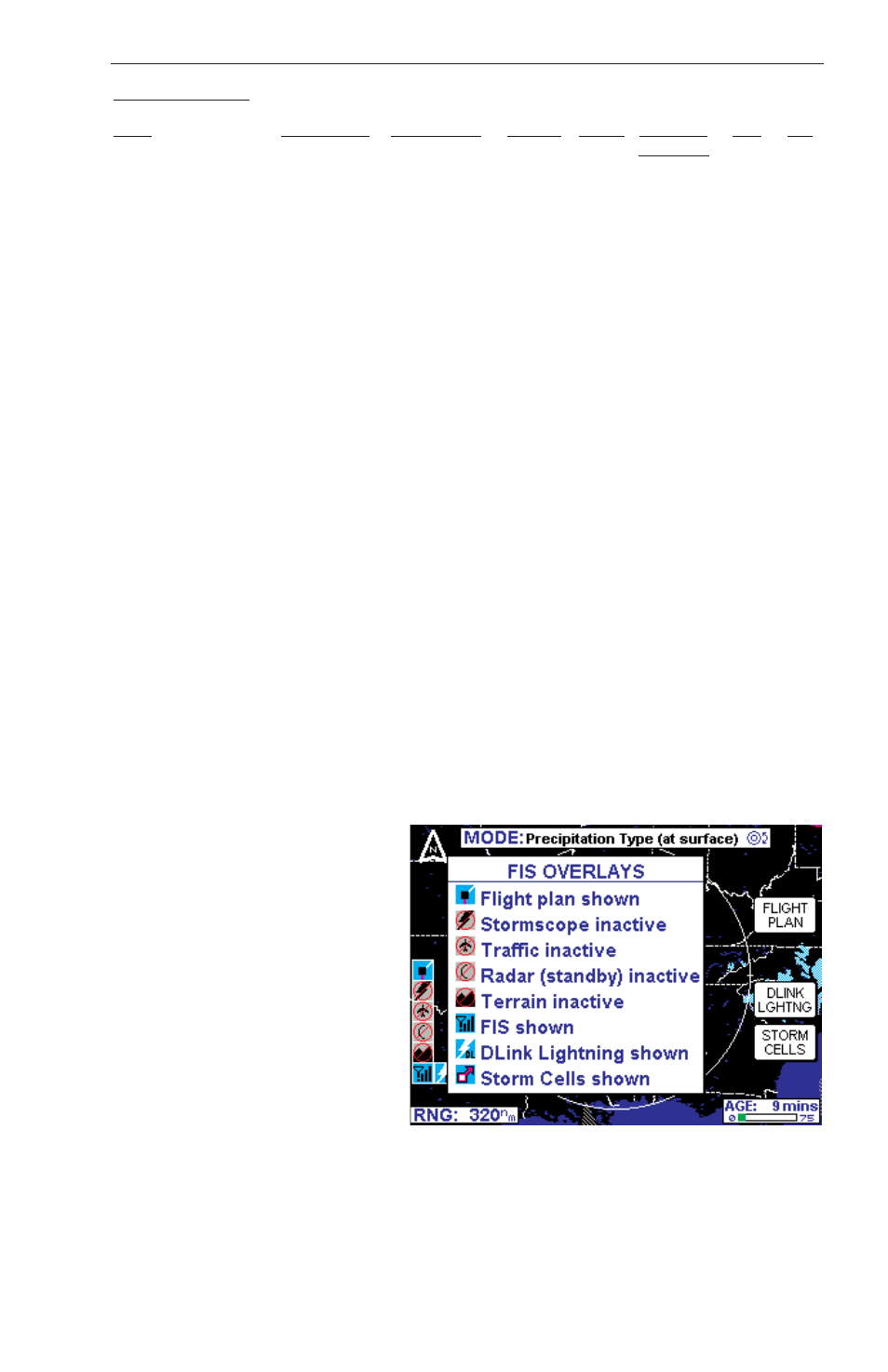

Pressing and holding the
OVERLAY key while in one
of the FIS Modes will display
the FIS Overlays windows as
show in the figure below.
This window displays the
status of the overlays of the
current mode that is being
displayed. The window will
no longer be displayed when
the overlay key is released.
