Maintenance Mode Displays
6-2
FPD 500 FLAT PANEL DISPLAY SYSTEM
Rev. 0
Jan/97
A
6.1 MAINTENANCE PAGE 1
The following is the definition of
the states for the page:
Parameter
States
A/C TYPE
B-727/DC-10
A/C SIDE
CAPT/FO
DISPLAY TYPE
ADI/HSI
CM ANNUN
ON/OFF
FD CMD IN VIEW HI/LO
PITCH CMD
150/120
ROLL CMD
150/66
6.2 MAINTENANCE PAGE 2
The following is the definition of
the states for the page:
Parameter
States
LAMP HEATER
ON/OFF
LCD HEATER
ON/OFF
A red flashing “FREEZE” annun-
ciation indicates that the status
annunciations are static with no
update, frozen by pressing the
Mode (M) button.
N
M
R
I
DIM
TEST
BRT
DU OPERATING PARAMS
PG 02
INTERNAL TEMPERATURE
38
°
C
EXTERNAL LIGHT LEVEL
120
DISPLAY BRIGHTNESS
25.46
FL
BURST CONTROL OUTPUT
23.50
%
DIM/HV OUTPUT
0.00
V
LAMP HEATER
OFF
LCD HEATER
OFF
TOTAL POWER CYCLES
303
TOTAL TIME
64
HRS
POWER CYCLE TIME
0
HRS
11
MINS

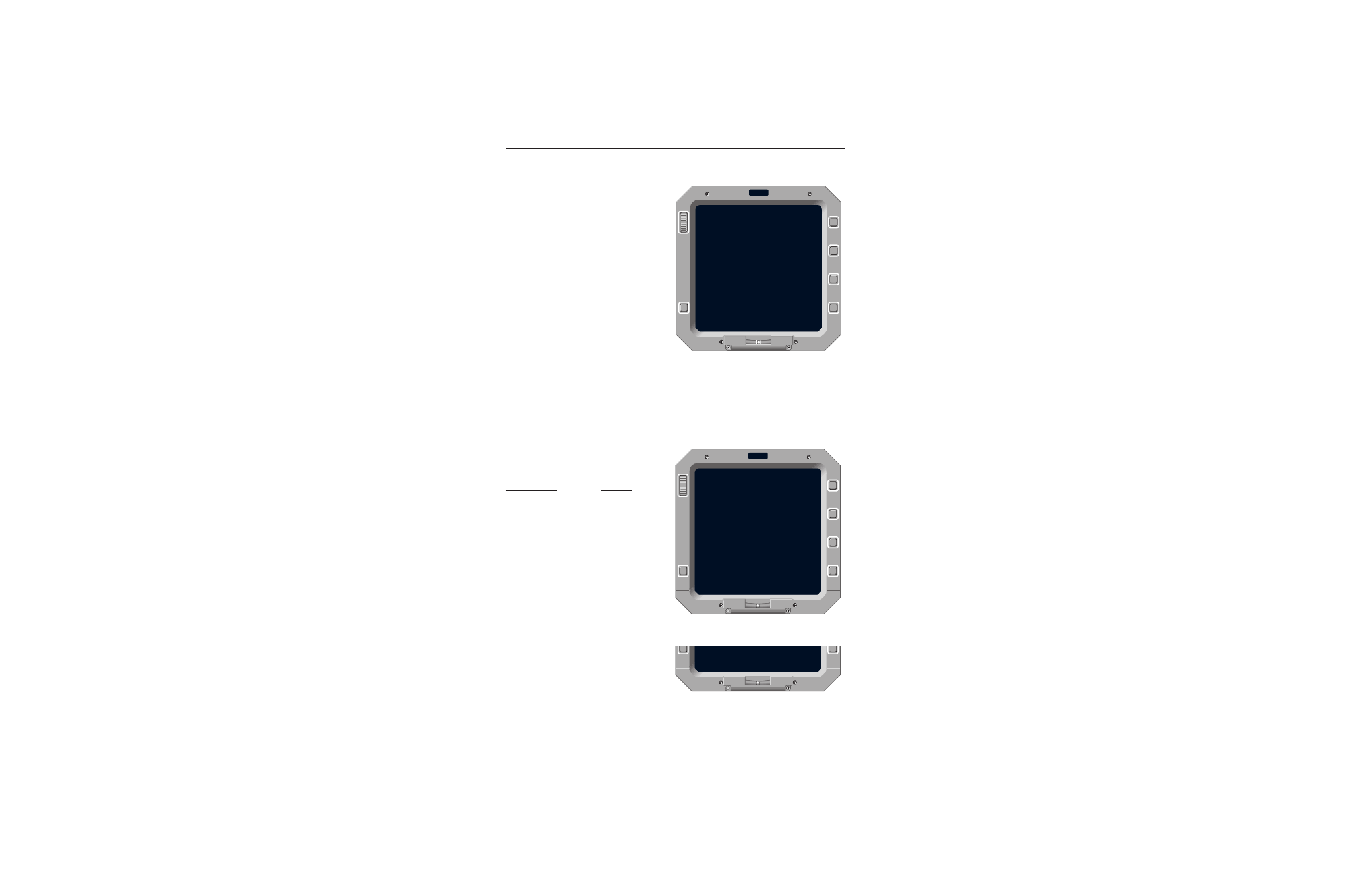

Figure 5.2-1
Maintenance Page 2
I
TEST
FREEZE
Figure 6.2-2
Frozen Maintenance Page 2
N
M
R
I
DIM
TEST
BRT
FPI-3501B MAINTENANCE PG 01
COPYRIGHT
ALLIEDSIGNAL AVIONICS INC. 1995
SW RELEASE
01/2H
ID
1230960925
BOOT RELEASE
01/02
S/N 0021
P/N 066-50017-0101
INSTALL/CONFIGURATION OPTIONS
A/C TYPE
DC-10
A/C SIDE
CAPT
DISPLAY TYPE
HSI
CM ANNUNCIATIONS
OFF
FD CMD IN VIEW
HI
PITCH CMD
150
ROLL CMD
150
Figure 6.1-1
Maintenance Page 1
