3.3 INTEGRATE MODE
The EADI and the EHSI both can
provide the Integrated display as
a reversionary mode, and the
integrated display is identical on
either an ADI or HSI. The ADI
and HSI display functions are the
same as they would be on an ADI
or HSI alone, except that the rate
of turn display and the rising run-
way are not displayed, and the
to/from pointer is duplicated on
both sides of the symbolic air-
craft. Off scale symbols (heading
bug and course pointer) are dis-
played as in the ARC HSI mode.
On a display configured as an
ADI, a pitch value of more than 23 degrees up or down will result in
the display reverting to the ADI presentation. The display will not
automatically return to Integrate mode when pitch value is reduced to
less than 23 degrees. The Integrate mode must be manually rese-
lected. On a display configured as an HSI, pitch value does not
cause the display to revert to HSI mode.
3.3.1 INTEGRATE MODE FAILURE ANNUNCIATIONS
External failures are annumci-
ated in the same way as on
the ADI and HSI, except
“RWY” and “R/T”, because
the rising runway and the rate
of turn indicator are not
shown on the integrate dis-
play.
3.3.2 INTEGRATE MODE
QUICK REFERENCE
The following foldout pages
provide a quick guide to the
Integrate Mode displays.
EADI/EHSI Displays
3-24 FPD 500 FLAT PANEL DISPLAY SYSTEM
Rev. 0
Jan/97
A
N
M
R
I
DIM
TEST
BRT
10
20 20
10
5 5
5 5
10 10
20 20
F
S
FD DH
GS
0
33
30
27
9
6
3
TRU
NAV 1

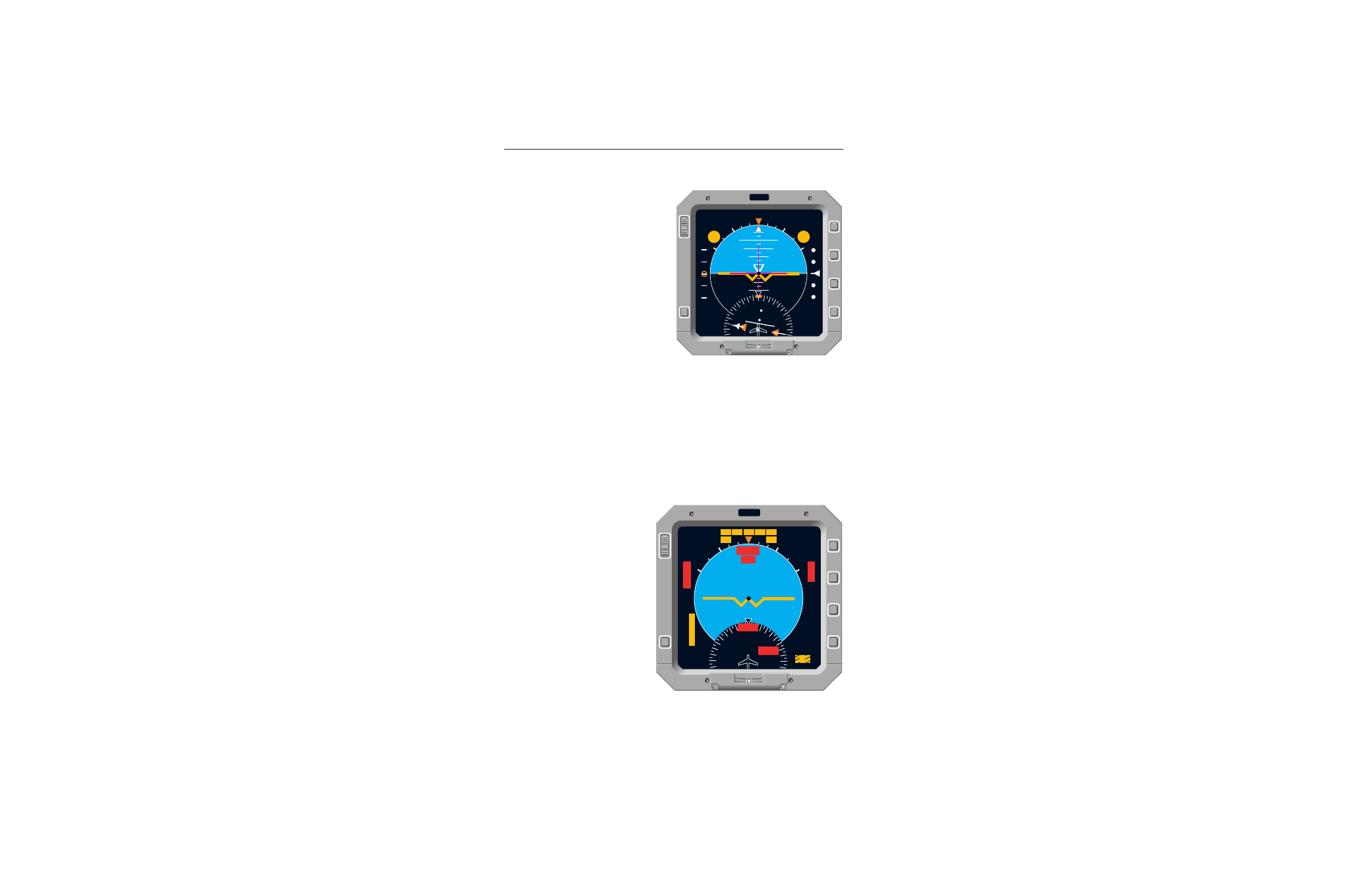

Figure 3.3-1
Integrate Display
N
M
R
I
DIM
TEST
BRT
0
33
30
27
9
6
3
S
P
D
GYRO
FD
HDG
N A V
G
S
2
A
L
E
R
T
MON
HDG PIT ROL GS LOC
ALT
Figure 3.3-2
Integrate Mode Failure Annunciation
