3.2.1.3 Selected Heading
An orange notched heading bug is manual-
ly rotated around the azimuth card by an
external heading select knob. The heading
bug indicates selected heading, and once
set, rotates with the azimuth card.
3.2.1.4 Selected Course
A white selected course pointer is manual-
ly rotated around the azimuth card by an
external course select knob. The pointer
indicates the desired navigation course,
and once set, rotates with the azimuth
card. When the primary navigation source
is an INS (NAV annunciated) desired track
from the INS is used to position the course
pointer.
3.2.1.5 Course Deviation Display
The course deviation scale (five white
dots) provides a reference for the course
deviation bar. The course deviation bar is
the center bar of the selected course
pointer. The course deviation bar indicates
the centerline of the selected navigation
course or localizer course in relation to the
symbolic aircraft. The course deviation
scale and pointer rotate with the azimuth
card when set.
3.2.1.6 Bearing Pointer(s)
Not currently implemented.
0
000
34 13

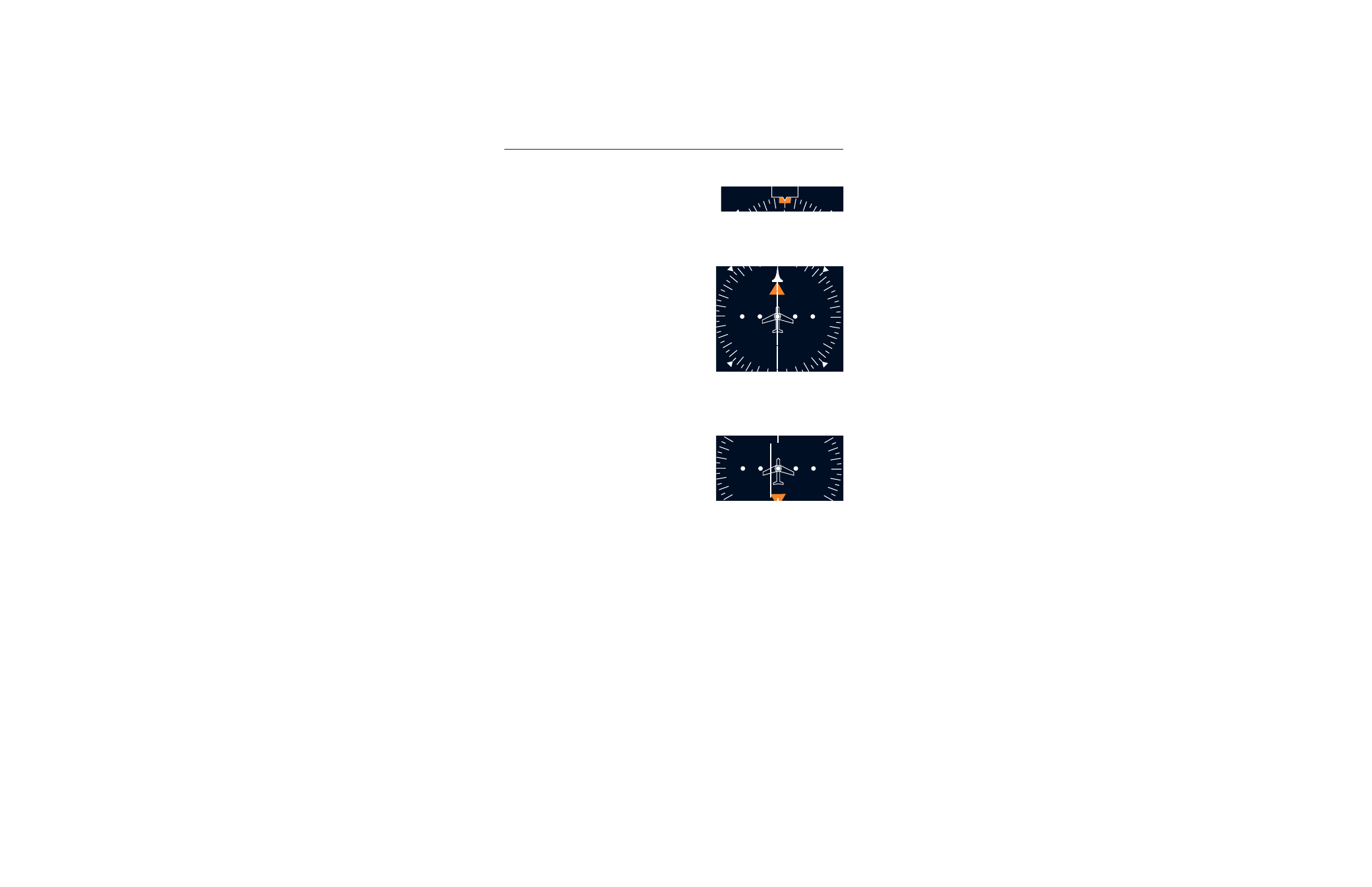

Figure 3.2-3
Selected Heading Bug
0
33
30
27
24
21
15
12
9
6
3
18
Figure 3.2-4
Selected Course Pointer
30
27
24
12
9
6
Figure 3.2-5
Course Deviation Display
