FPD 500 FLAT PANEL DISPLAY SYSTEM
5. OPERATING INSTRUCTIONS
Consult Aircraft Flight Manual Supplement for specific procedures
and limitations in operation.
5.1 START UP
When power is initially applied to
the EADI/EHSI system, various
flags may be annunciated on the
displays, representing systems
not yet operational. If all flags do
not clear, then recheck the
annunciated system.
Adjust brightness control on the
EADI and EHSI to desired bright-
ness.
5.2 SELF TEST
Performing the Self Test is not
required at any time. If a failure was to occur or exist, the failure
would be annunciated. This test is intended to familiarize the operator
with the various flagging methodology used and a quick check for
proper color presentation.
Self Test is inhibited during ILS mode if both glideslope and localizer
are valid.
Operating Instructions
5-1
Rev. 0
Jan/97
A
N
M
R
I
DIM
TEST
BRT

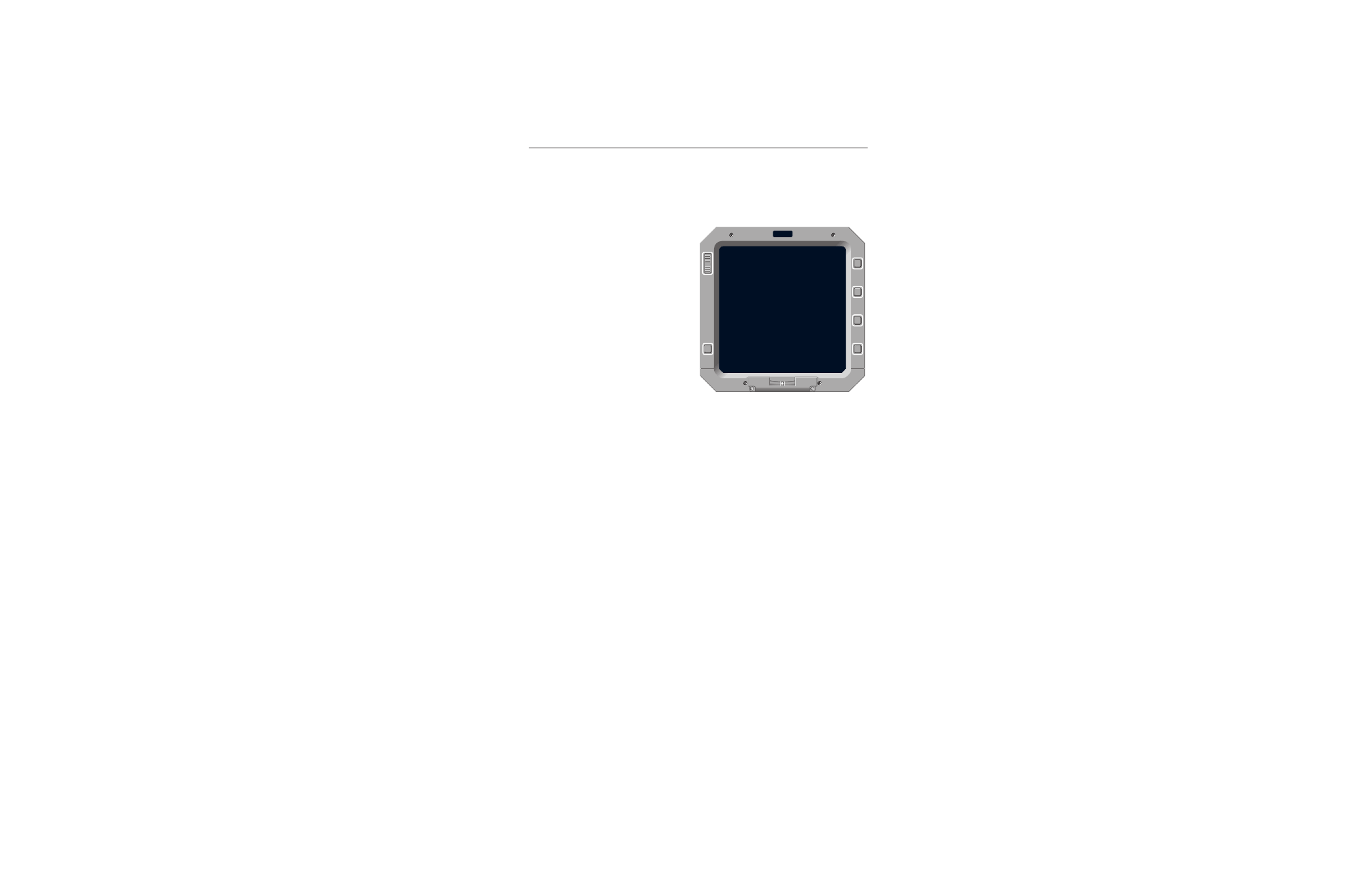

Figure 5.1-1
Bezel
