FPD 500 FLAT PANEL DISPLAY SYSTEM
3.2.2.7 Distance Display
Same as Normal mode.
3.2.2.8 To/From Display
Same as Normal mode.
3.2.2.9 Glideslope Display
Same as Normal mode.
3.2.2.10 Drift Angle Display
Not currently implemented.
3.2.2.11 Ground Speed Display
Not currently implemented.
3.2.3 MAP HSI DISPLAY
The MAP format provides for increased resolution of the displayed
navigation data due to the enlarged scale. It also provides range
information. The MAP mode display is the same as ARC except as
noted in the following paragraphs.
3.2.3.1 Range Rings
The azimuth card forms the outer
range ring. The inner range ring
represents half the distance to the
outer range ring. The half-range
distance is annunciated at the
bottom right end of the inner ring.
The full map range is annunciat-
ed in the lower left corner of the
display, directly under the mode
annunciation. Currently, the range
is annunciated as dashes only.
3.2.3.2 MAP Waypoints
Not currently implemented.
EADI/EHSI Displays
3-15
Rev. 0
Jan/97
A
N
M
R
I
DIM
TEST
BRT
0
33
30
6
3
000
GS
TRU
ILS 1
INS1
1234
INS2
1324
MAP
- - -
- -

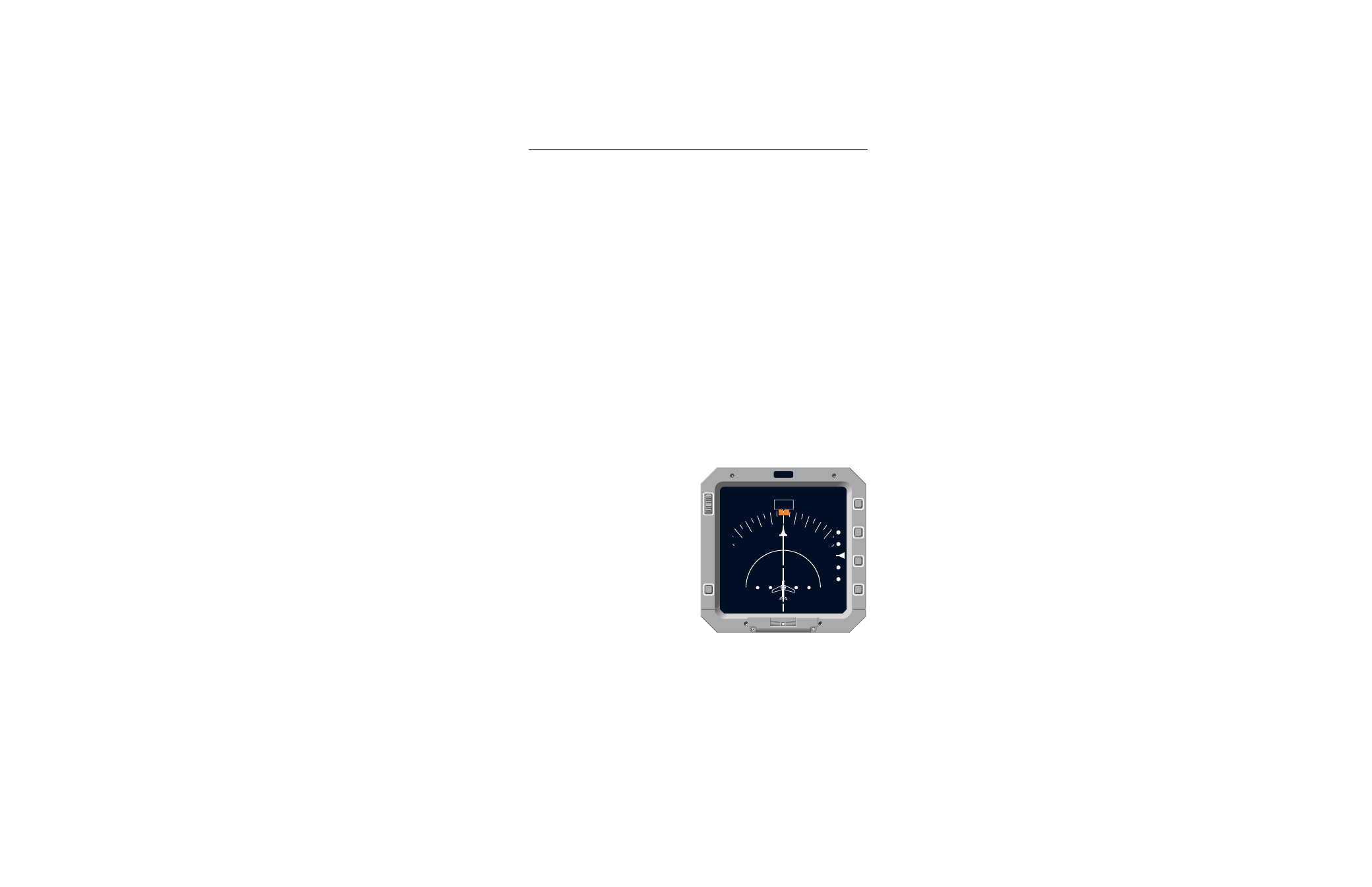

Figure 3.2-14
MAP Display
