OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 9
31020
Brake Disc.
31020
Brake Disc.

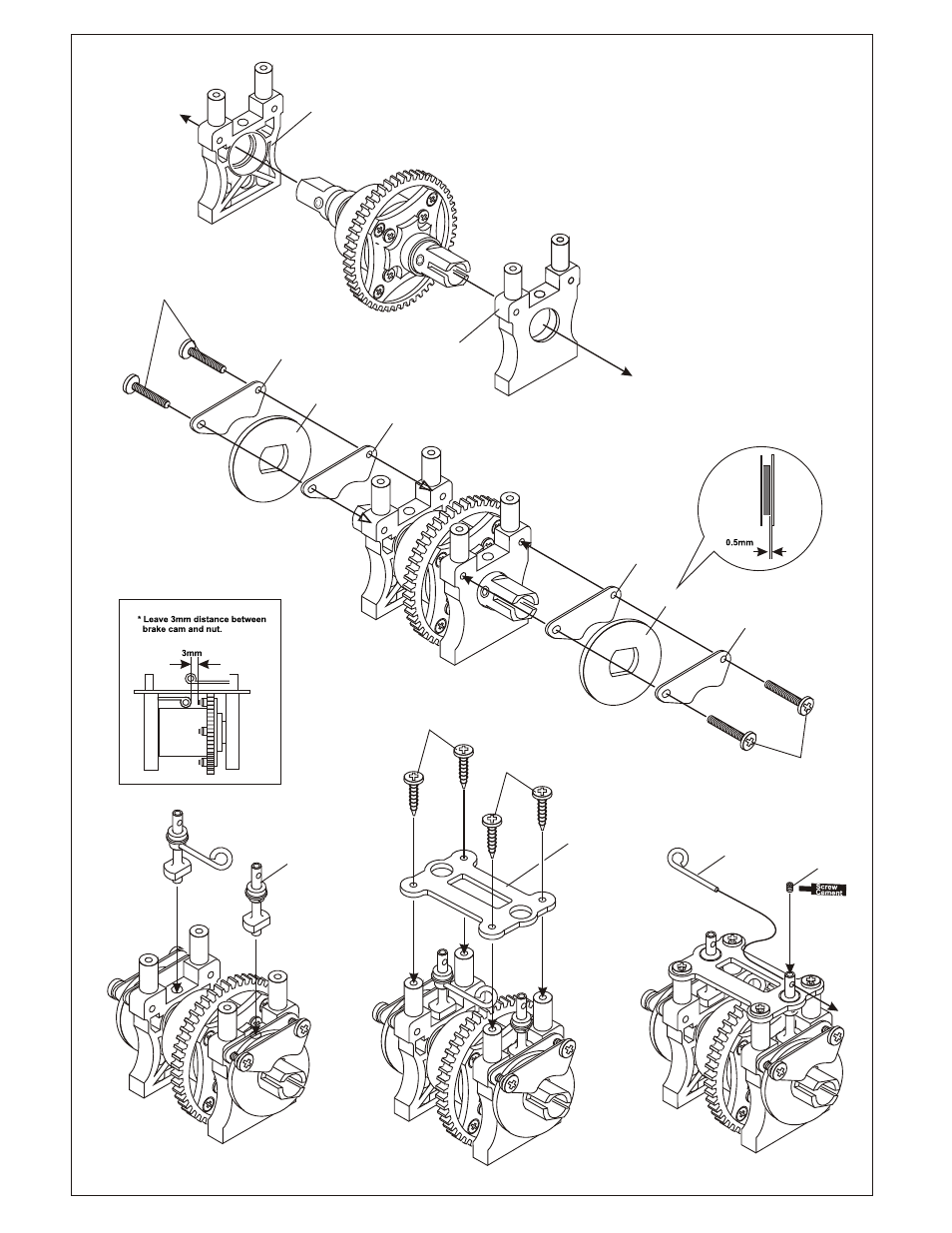

ASSEMBLY OF THE CENTER DIFF. MOUNT
30201
Center Diff. Mount
30201
Center Diff. Mount
3x15mm
Screws
3x15mm
Screws
30180
Brake Pads
30180
Brake Pads
30180
Brake Pads
30180
Brake Pads
Note:
Adjust brake pads for a o.5mm gap. If gap is
to big, the lever not move enough to apply
braking.
Rear Cam
Lower Hole Used
Front Cam
M3x12
Tapping Screws
M3x12
Tapping Screws
30652
Center Plate
Front
30171
Lever, Rod
3x3mm
Hex Screw
Diff must turn freely.
Check brake pad
spacing.
