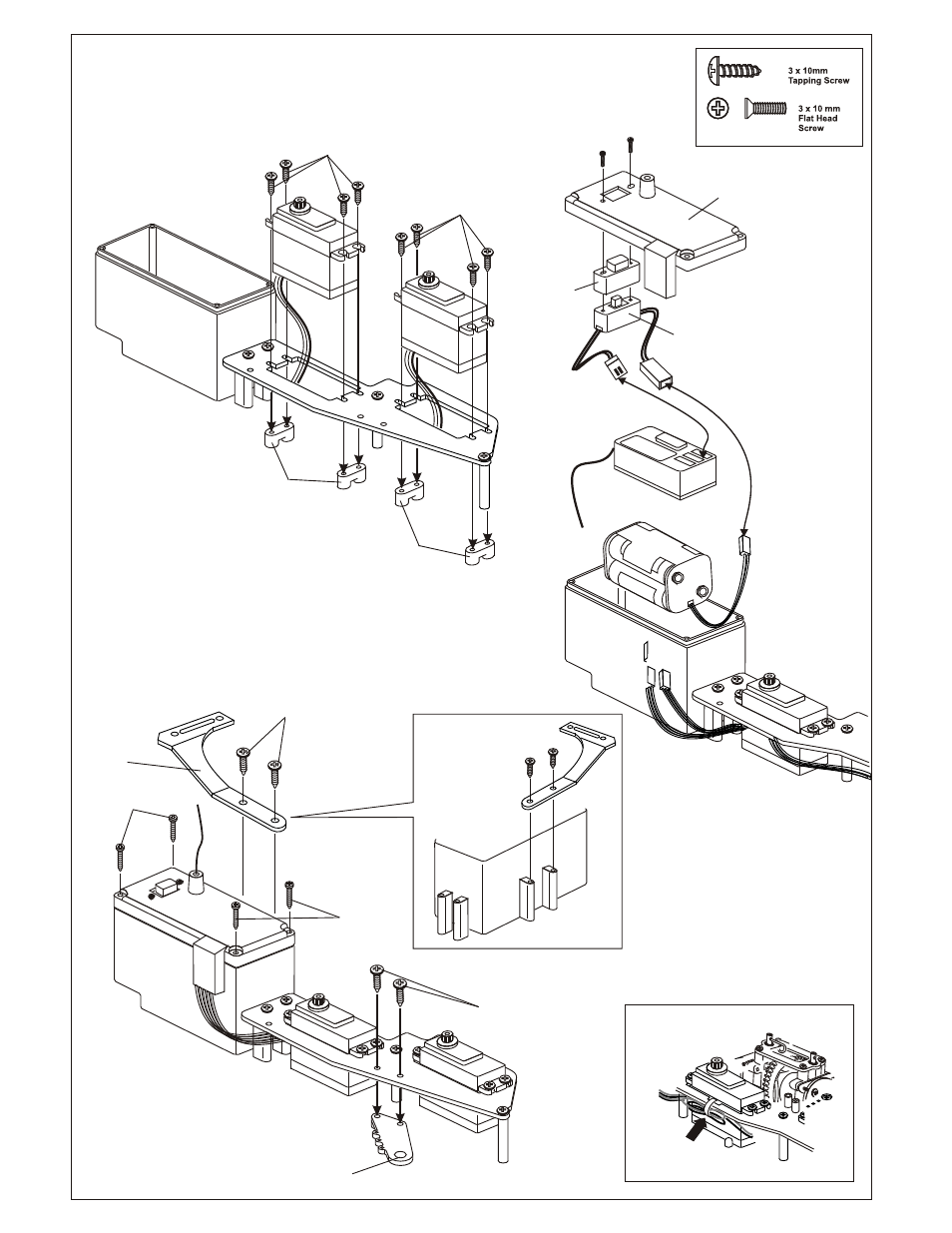

Page 25

Switch

10280

Switch

Cover

* Use the screw provided
with your witch.

* Connect the wire to
receiver.

* Connect battery case
wire to switch.

* Connect switch wire
to receiver.

Receiver

Battery Case

3 x 10mm

Screw

3 x 10mm

Screw

ASSEMBLY OF THE REAR STIFFENER

34070

Rear

Stiffener

2.6x10

Tapping Screw

2.6x10

Tapping Screw

* Use the small strap tp
secure the servo wire.

3 x 10mm

Tapping Screw

3 x 10mm

Tapping Screw

34020

Servo Mount

34020

Servo Mount

Throttle Servo

Steering Servo

ASSEMBLY OF THE SERVO AND RECEIVER

34049

Sensor

Support

Receiver Box
Cover

Note:

It is best to not use the

switch, switch can fail. All

racers plug directly into

receiver for power.

Body Clip

Storage

Transponder
