OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 26
* Use the screw provided
with your radio.
30172
2mm Rod
* Use the screw provided
with your radio.
10768
Steering
Servo Horn

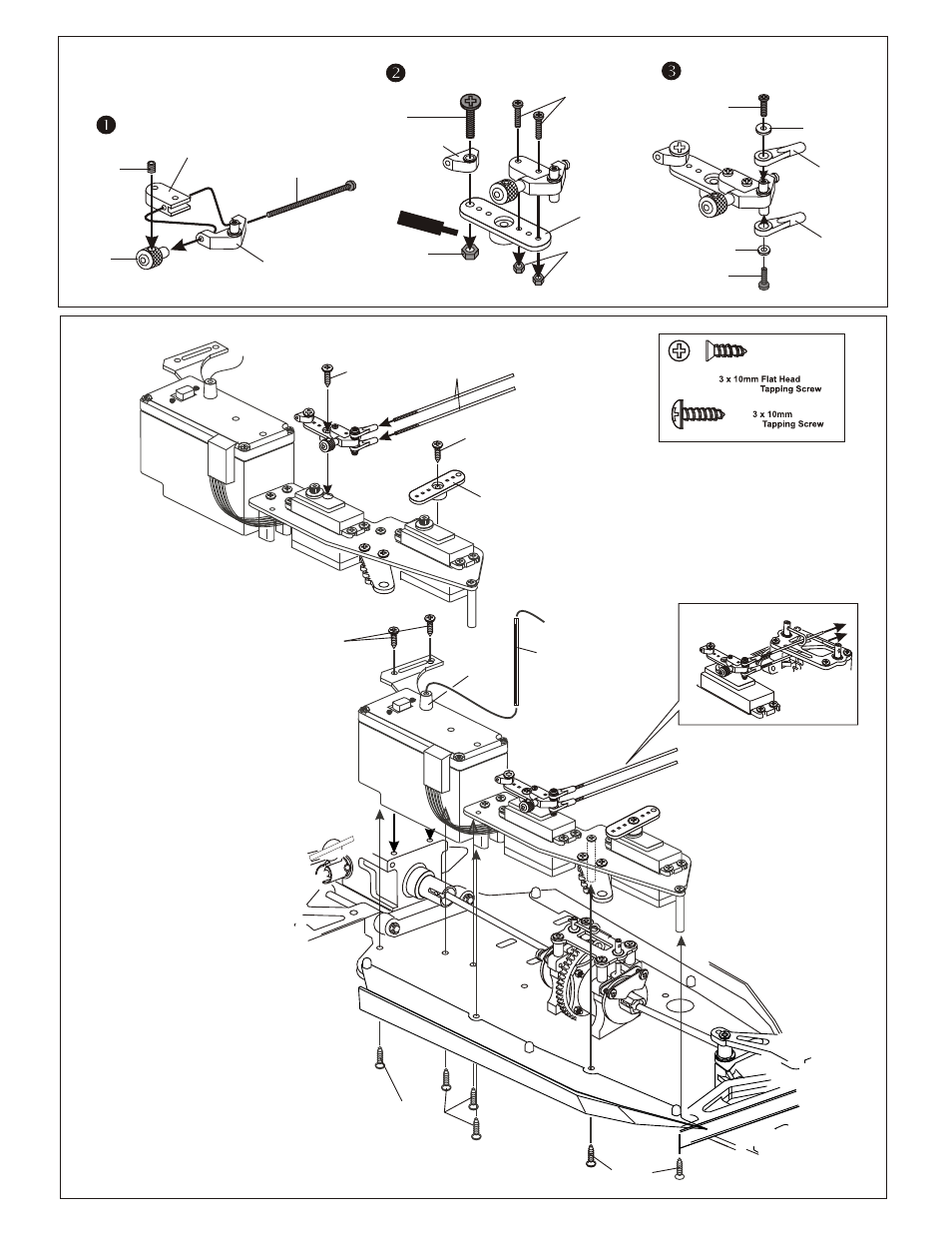

ASSEMBLY OF THE SERVO HORN LINKAGE
INTO SERVO
30560
Antenna Tube
* Push 30560 into
antenna post.
3x10mm
Tapping Screw
*Insert the 2mm brake rod through
brake lever.
Antenna Post
3x10mm
Flat Head
Tapping Screw
3x10mm
Flat Head
Tapping Screw
ASSEMBLY OF THE BRAKE SYSTEM
3X3mm
Set Screw
36140
2mm
Adjust Nut
Servo Mount
2x25mm
Screw
30800
Brake & Linkage Kit
Adjust
Mount
3mm
Nut
Slider
3x12mm
Screw
2x8mm
Screw
2mm Nut
2mm
Tie-Rod End
2mm
Tie-Rod End
2x6mm
Washer
2x6mm
Washer
2x4mm
Screw
2x4mm
Screw
Screw
Cement
10768
Servo Horn
