OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 17

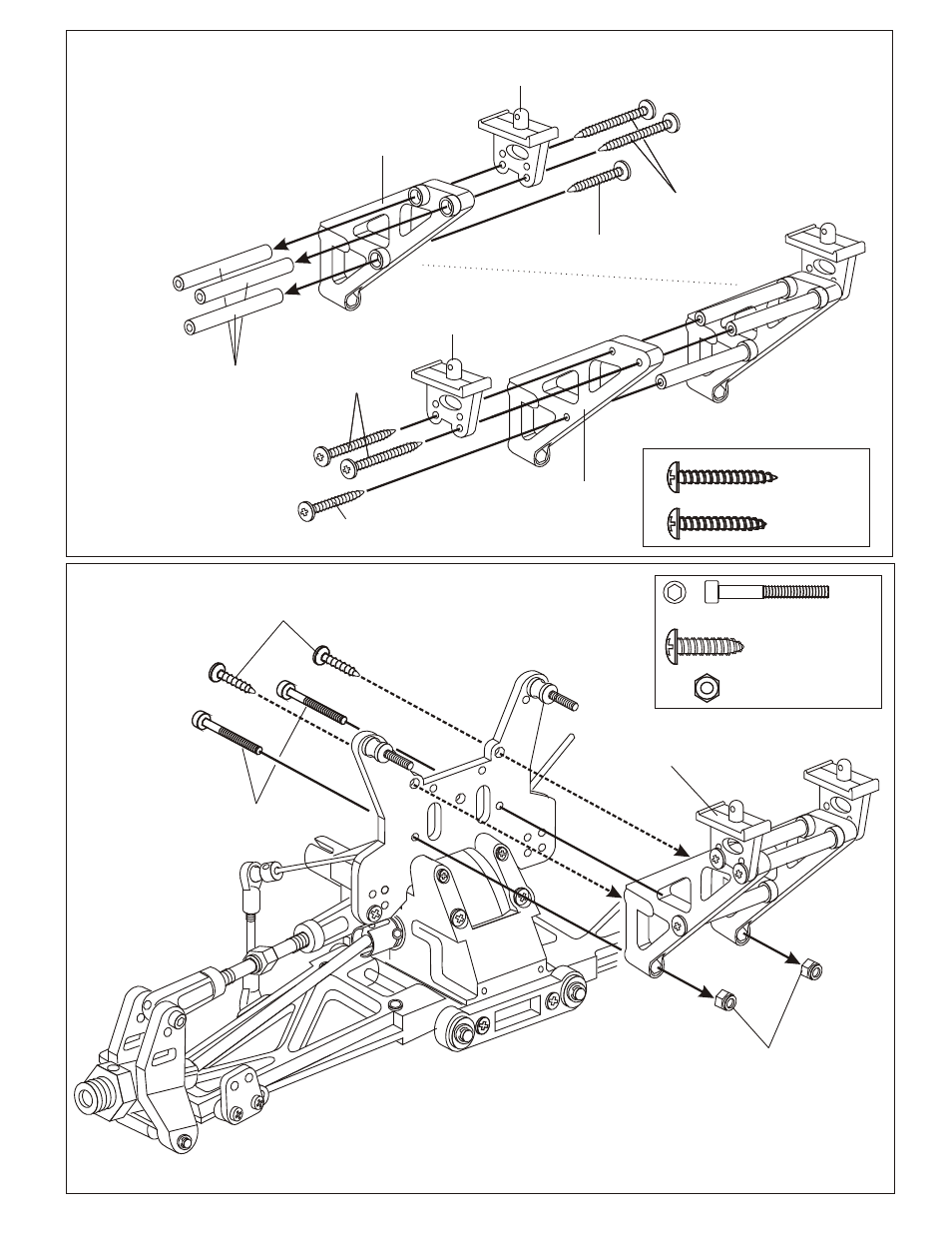

ASSEMBLY OF THE WING SUPPORT
3 x25mm
Tapping Screw
3 x25mm
Tapping Screw
3 x 20mm
Tapping screw
3 x 20mm
Tapping screw
30271
Wing Support
30270
Wing Support
30271
Wing Support
30270
Wing Support
30270
Plastic Post
3 x 25mm
Tapping Screw
3 x 20mm
Tapping Screw
3 x 25mm
Tapping Screw
3 x 20mm
Tapping Screw
ASSEMBLY OF THE WING SUPPORT ONTO THE SHOCK TOWER
90019
3 x 25mm
Cap Screw
3mm
Nylon Lock Nut
30700
4 x 15mm
Tapping Screw
3 X 25mm Cap Screw
4 x 15mm Tapping Screw
M3 Nylon Locknut
30270
Wing Support
Assembly
30270
Rear Wing Support Kit
