Assembly of the bevel gear – OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 10

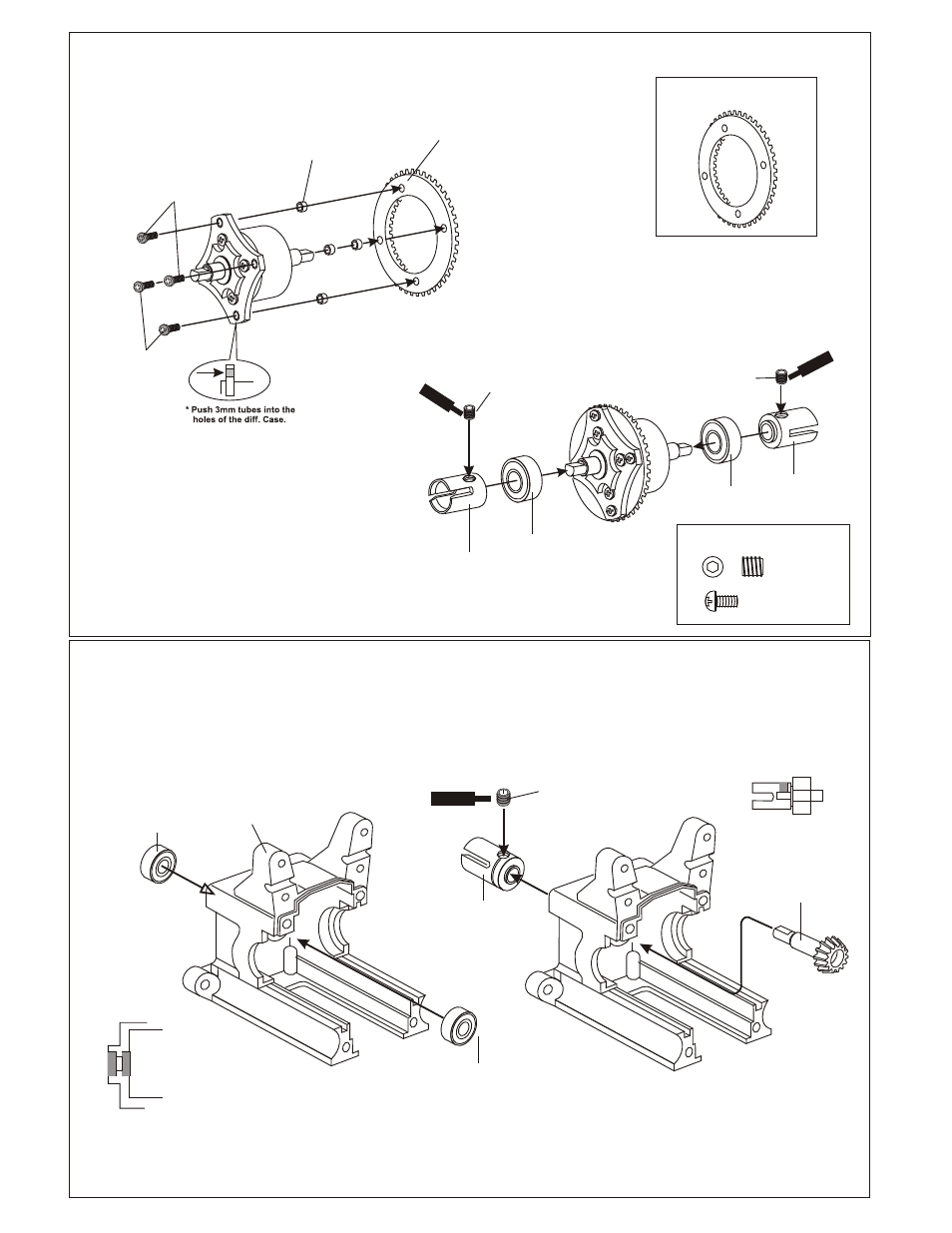

ASSEMBLY OF THE GEAR BOX
( Assemble two gear boxes, front and rear. )
90026
5 x 5mm
Set Screw
30630
6 x 13 x 5mm
Ball Bearing
30630
6 x 13 x 5mm
Ball Bearing
The Pinion Gear is held in place
by two bearings.
30082
Cap Joint
30130
Pinion Gear,
Harden Steel
Screw
Cement
1
2
30010
Gear Box
Scr
ew
Cem
en
t
Sc
re
w
Ce
m
en
t
ASSEMBLY OF THE BEVEL GEAR
30121
Mounting Hardware
30121
Mounting Hardware
30121
Mounting Hardware
insert tubes, 4 pcs.
30120
Bevel Gear. Large
31010
Bevel Gear. Large, Harden
90026
5x5mm
Hex Screw
90026
5x5mm
Hex Screw
90026
5x5mm
Hex Screw
30082
Joint Cap
30082
Joint Cap
30620
7x10mm
Ball Bearing
Tighten hex screw on
flat of shaft.
