OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 13
0
1
Assembly of the right and left hand side
are the same.
Assembly of the right and left hand side
are the same.
30102
Front Body
Post
* Cut the sharded area
as shown.
3x8mm
Tapping Screw
90021
3mm
E-Ring
90021
3mm
E-Ring
90021
3mm
E-Ring
90021
3mm
E-Ring
30151
4mm
Upper Arm Rod
30061
4x25mm
Flat Head
Screw
30061
4x25mm
Flat Head
Screw

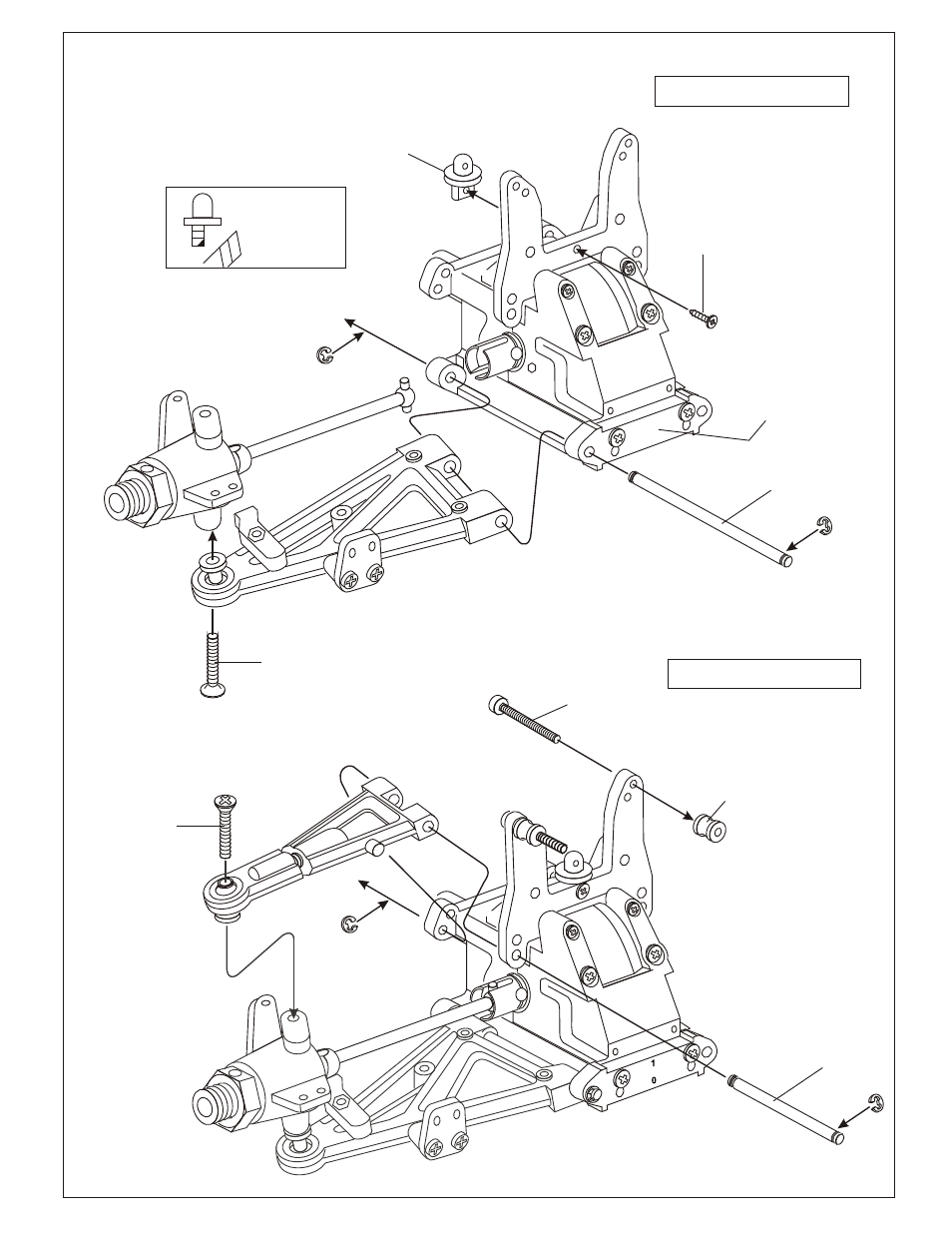

ASSEMBLY OF THE FRONT ARMS INTO GEAR BOX
30151
Front Lower arm
Rodl
90018
3 x 25mm
Hex Cap Screw
36610
Shock Spacer
Steel
Option
36507
Alum. CNC
Shock Spacer
Note
1 Degree
0 Degree
Angle of Lower Arm Pin
