OFNA Racing Ultra LX Pro (GT LX) User Manual
Page 15
Assembly of the right and left hand side
are the same.
90021
3mm
E-Ring
90021
3mm
E-Ring
90021
3mm
E-Ring
30151
Arm Shaft (Long)
30351
Rear Wheel Toe-in
Adjuster
1
Degree
1.5
Degree
* Set triangle marks in
the direction shown
in Fig.1.
Fig.1
* Don't over tighten tapping screw.
36810
Rear Shock
Tower
* Insert stabilizer before
assembly of the shock stay.

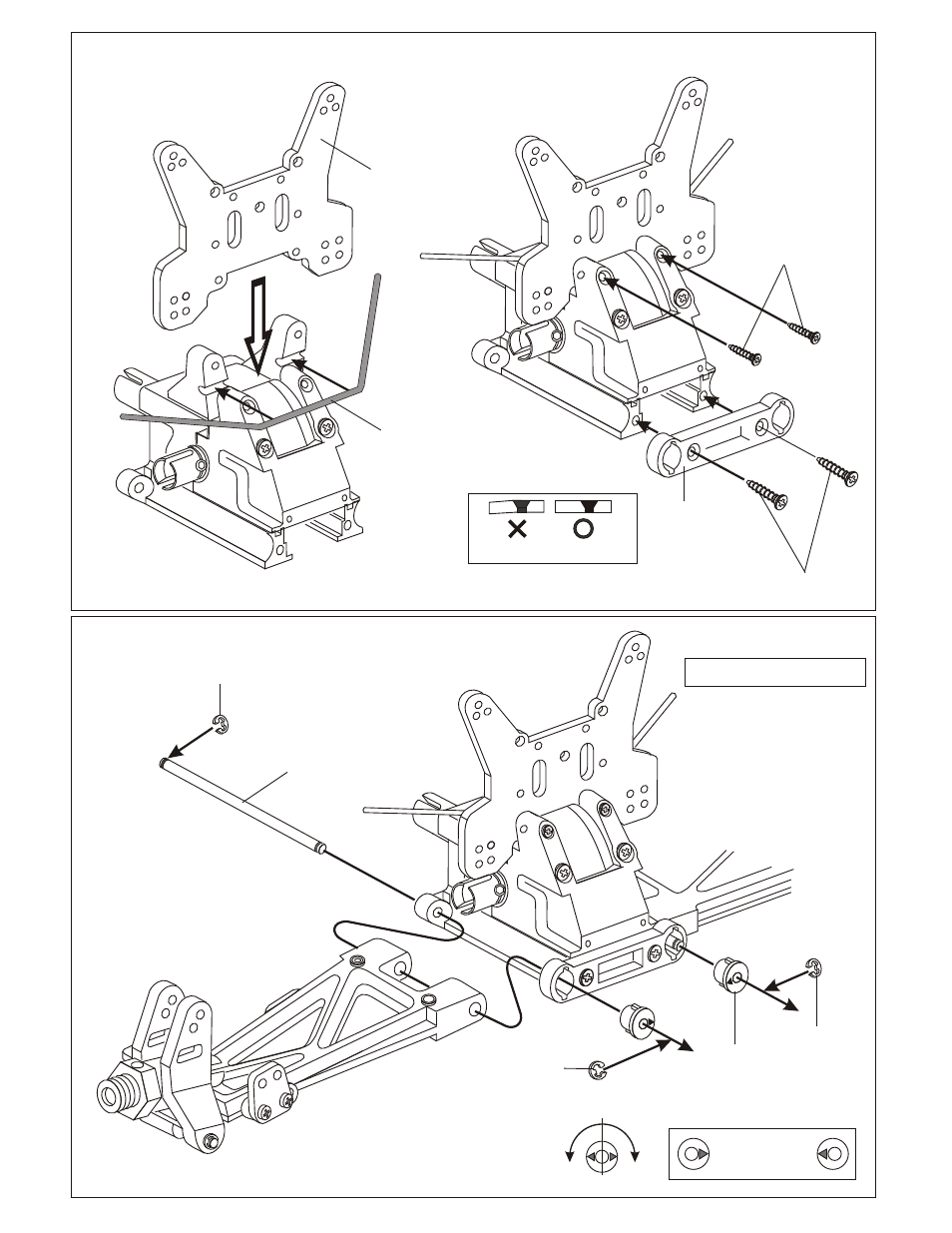

ASSEMBLY OF THE REAR SHOCK TOWER
ASSEMBLY OF THE REAR LOWER ARMS
4x16mm
Flat Head
Tapping Screw
3 x 20mm
Flat Head
Screw
30350
Rear Lower Arm
Holder
30340
Anti-roll Bar
