OFNA Racing Ultra LX Pro (GT LX) - Manual (Page 24)

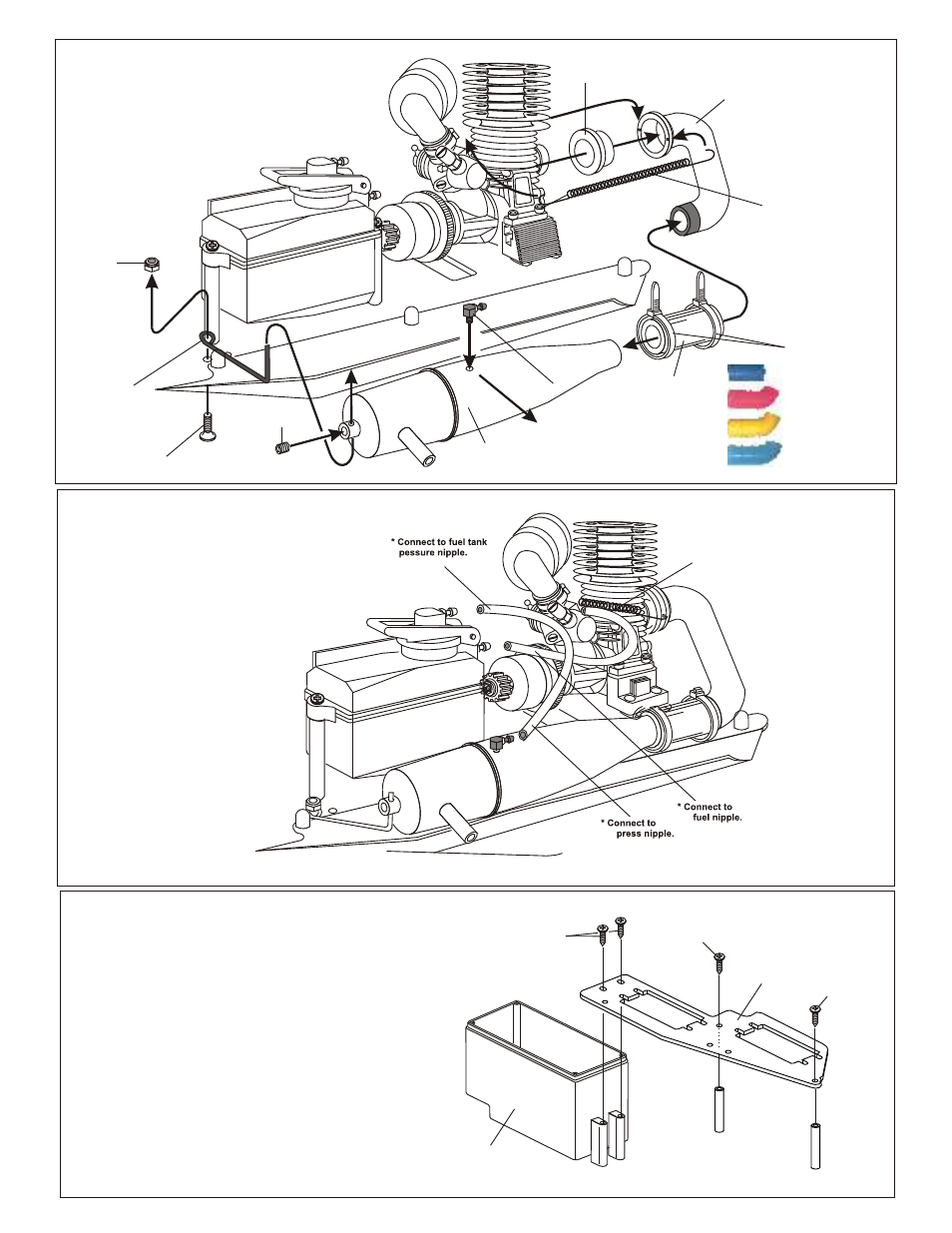

ASSEMBLY OF THE FUEL TUBE
3 x 10mm
Tapping Screw
3 x 10mm
Tapping Screw
3 x 10mm
Tapping Screw
34032
Receiver Box
34061
Radio Tray
ASSEMBLY OF THE RADIO TRAY AND RECEIVER BOX
*Tighten the strap
and cut off the excess.
10180
Silicone Tube
10068
Manifold Adapter
( Red Silicone )
10120
Manifold
Spring
5x5mm
Set Screw
4x10mm
Flat Head
Screw
30491
Muffler Wire
4mm
Nylon
Lock Nut
Nylon Strap
( middle )
10060
Manifold
10079
Pressure Nipple
30490
Muffler
* Drill a hole (Size 3.5mm)
in the place and align as shown.
Use a two part epoxy glue to
full seal the nipple base to the
nipple.
ASSEMBLY OF THE MANIFOLD AND
MUFFLER
* Read this page with very carefully.
To Carburetor
34031
Posts
Option:
10078
Pipe Mounting
Post, Alum.
Option:
31991
Polished, Manifold
31992
Polished, Tuned Pipe
Option:
10182
Silicone Tube, Red
10183
Silicone Tube, Yel.
10184
Silicone Tube, Blue
