Screw
Cement
Sc
rew Ce
men
t

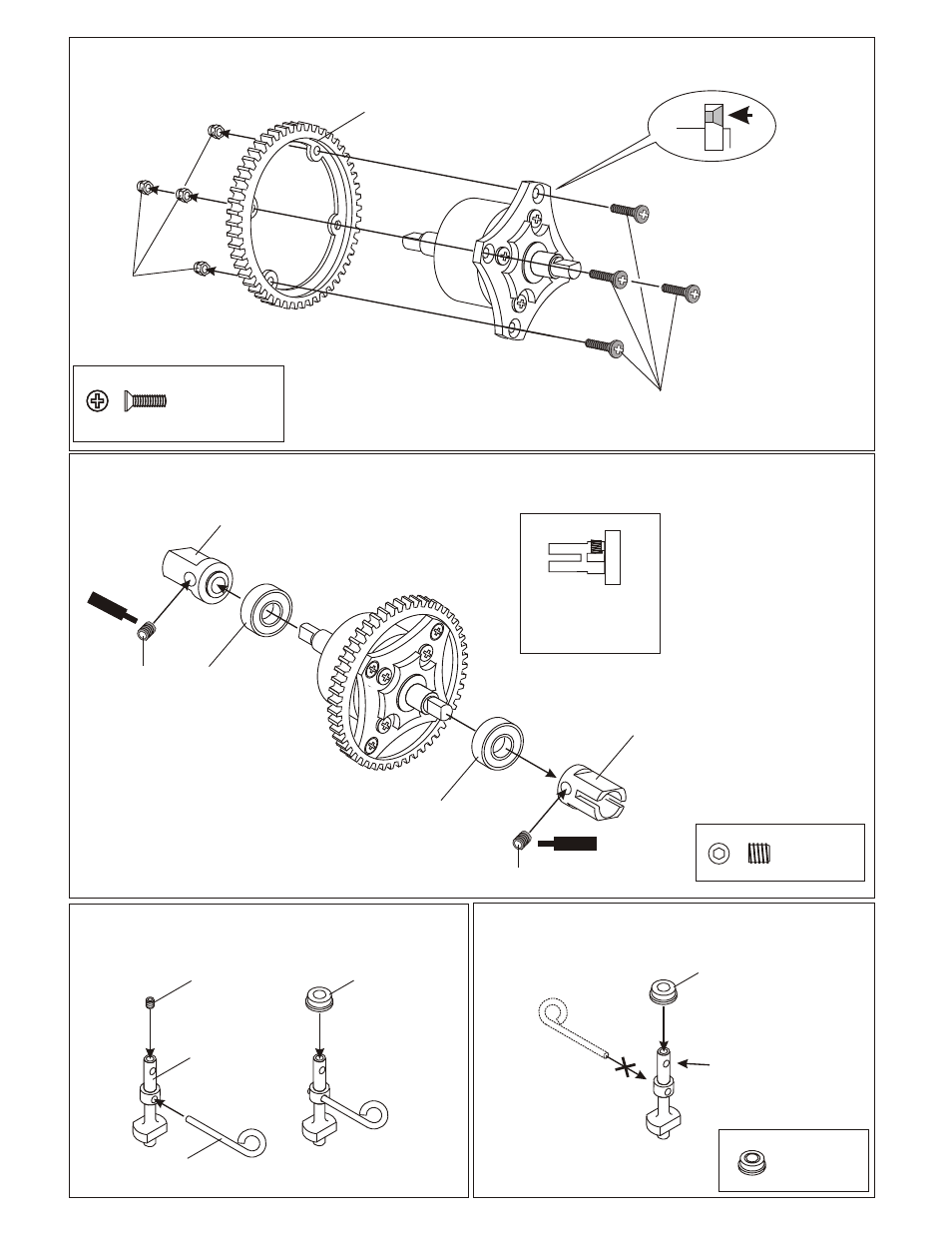

ASSEMBLY OF THE SPUR GEAR
ASSEMBLY OF THE CENTER BRAKE CAP JOINT
ASSEMBLY OF THE BRAKE CAM FOR FRONT ASSEMBLY OF THE BRAKE CAM FOR REAR
31040
Spur Gear, Steel
35314
M3 Nylok Nut
30111
Spur Gear Mount
Hardwares
30111
3X10mm
Screws
30111
3X10mm
Screws
Note case direction for screw head.
30170
Joint Cap, Flat,
Center Brake Disc.
30170
Joint Cap, Flat,
Center Brake Disc.
30620
7x19x5mm
Ball Bearing
30620
7x19x5mm
Ball Bearing
30620
7x19x5mm
Ball Bearing
30711
Misc. Hex Screw
Bag
30711
Misc. Hex Screw
Bag
30701
Misc. Hex Screw
Bag
Tighten hex screw on
flat of shaft. Always
check, if not sure. Car
will move if loose.
Joint cap
30701
M3x3
Hex Screw
30213
Cam, Brake
30171
Lever, Brake Cam
30171
Lever, Brake Cam
30211
5x8x2.5mm
Bushing
30212 (option)
5x8x2.5mm
Ball Bearing
30212 (option)
5x8x2.5mm
Ball Bearing
30211
5x8x2.5mm
Bushing
30212 (option)
5x8x2.5mm
Ball Bearing
Use top hole in cam for lever.
Place bearing and plate first
before tightening lever.
