OFNA Racing Ultra LX Pro (GT LX) - Manual (Page 16)

Assembly of the right and left hand side
are the same.
* Insert rear drive shaft
before assembly.
35314
3mm
Nylon Lock Nut
90019
3 x 25mm
Cap Screw
* Insert into rear hub.
90018
3 x 25mm
Cap Screw
36610
Shock Support

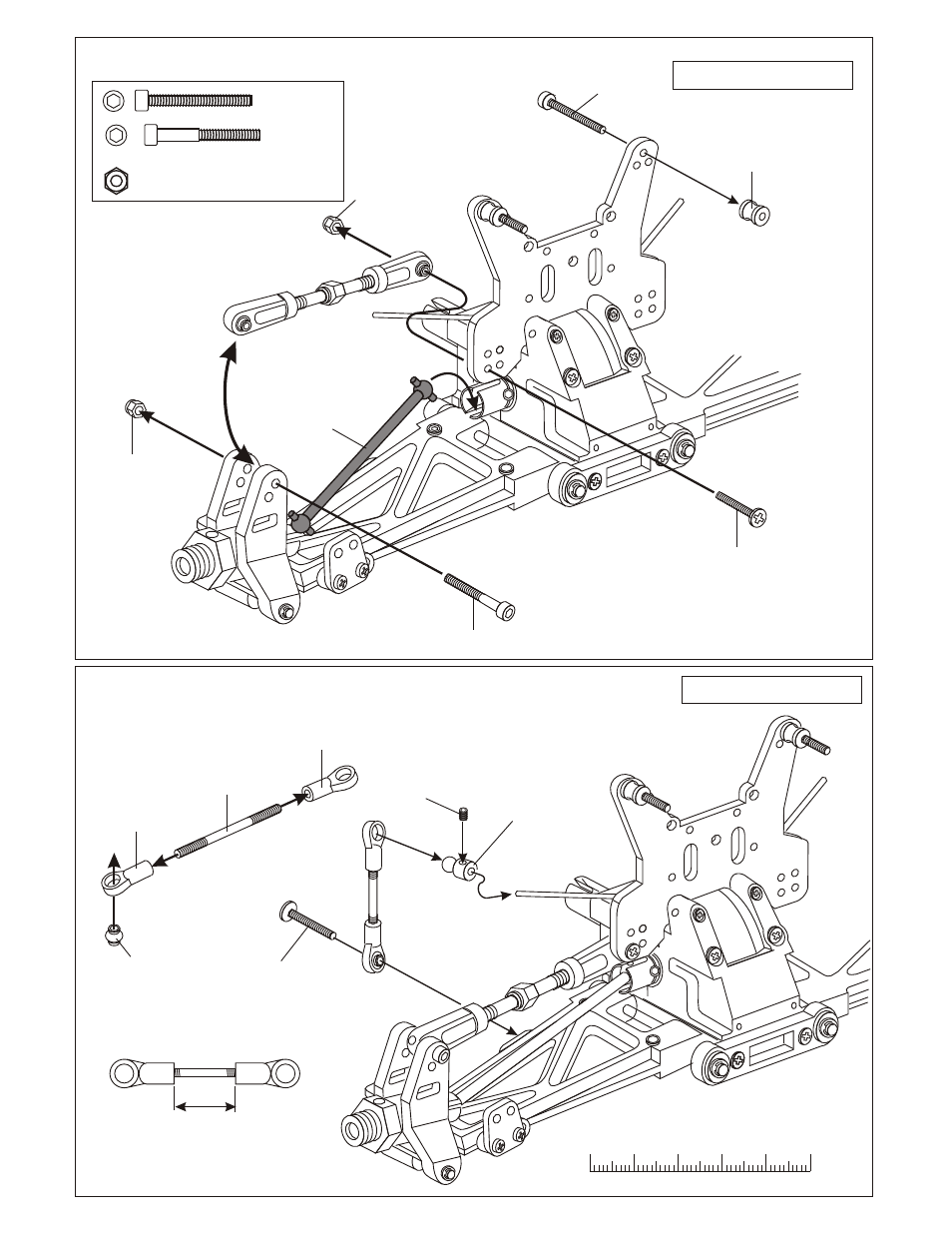

ASSEMBLY OF THE REAR UPPER ARM ROD
90018
3 x 25mm
Cap Screw
90019
3 X 25mm
Cap Screw
3 x 15mm
Screw
35314
M3
Nylon Lock Nut
35314
M3 Nylon Lock Nut
30402
3 X 30mm
Tie Rod
30401
6mm
Ball Joint
30401
6mm
Stabilizer
Ball End
30401
6mm
Stabilizer
Ball End
3 x 15mm
Screw
30701
3 x 3mm
Set Screw
30340
6mm
Stabilizer
Ball End
Assembly of the right and left hand side
are the same.
0 10 20 30 40 50
mm
15mm
ASSEMBLY OF THE REAR ANTI-ROLL BAR
36110
Dog Bone, Rear
30340
Anti-roll Bar Kit
