OFNA Racing Ultra LX Pro (GT LX) - Manual (Page 27)

A-41
6mm
Ball & Socket
30410
6mm
Stabilizer
Ball End
30410
6mm
Stabilizer
Ball End
30402
3 X 30mm
Tie Rod
30411
6mm
Ball & Socket
30411
6mm
Ball & Socket

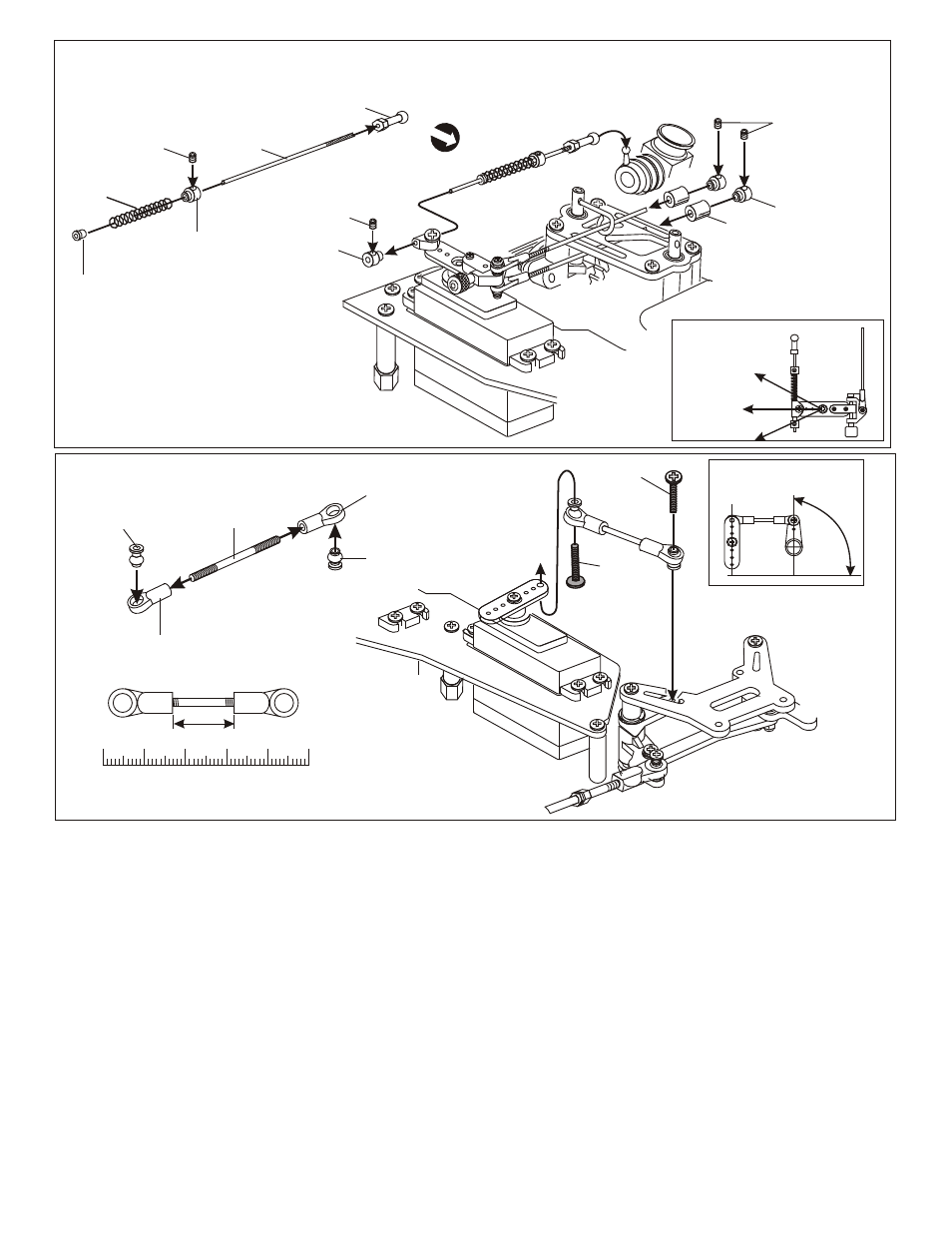

ASSEMBLY OF THE FRONT STEERING ROD
* To the steering
servo saver.
3x12mm
Screw
3x12mm
Screw
0 10 20 30 40 50
mm
17mm
* Align the steering
servo as shown.
ASSEMBLY OF THE THROTTLE LINKAGE SYSTEM
* Take the plastic collar
from brake system plastic
parts.
3X3mm
Set Screw
10300
Alum.Stopper Fuel
Tube
( 6mm )
* Snap On.
3X3mm
Set Screw
10300
Alum.Stopper
3X3mm
Set Screw
Plastic Collar
Throttle
Spring
30172
2mm Rod
10300
Alum.Stopper
30530
Throttle
Ball Joint
* Align throttle servo same
as shown.
Brake
Idle
Position
Full Throttle
(Part of 30800 linkage kit)
