OFNA Racing Ultra Comp2 - Manual (Page 26)

40083
Wing
Countersunk
Plastic Washer
14150
Body Clips
*Drill two 7mm holes
for mounting.
0 5 10 15 20 25 5 10 15 20 25
Check the hole spacing on the underside.
¨
М ¾ Ъ © w - · Á l - I - ± « ь ¥ Ь ¤ Ш ¤ o ° µ ¥ X ¥ ¿ ½ T ¤ Х ¦ м .
10179
Fuel Tube
Tire and Wheel
assembly.

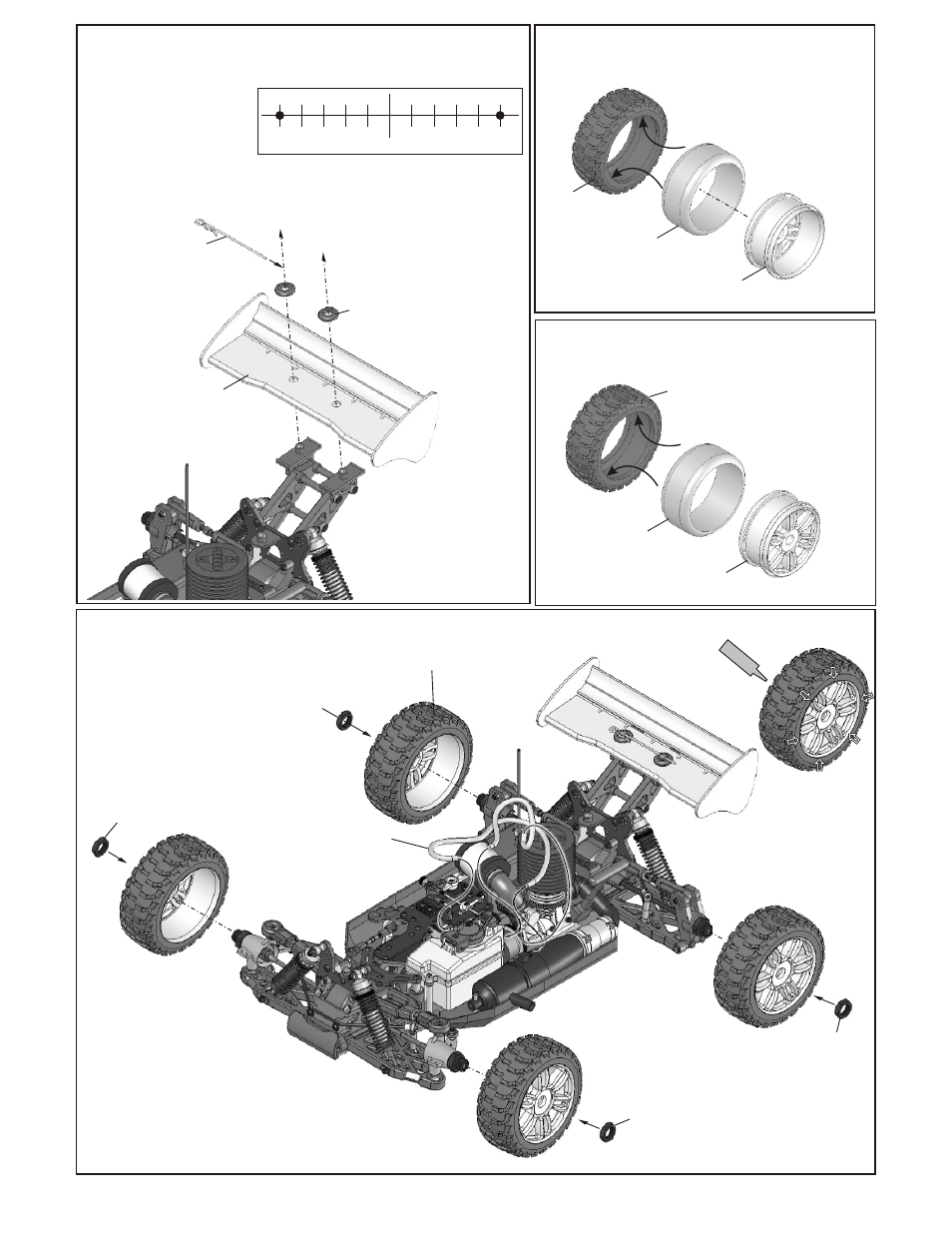

ASSEMBLY OF THE TIRE ONTO FRONT
KNUCKLE AND REAR HUB
ASSEMBLY OF THE WING ASSEMBLY OF THE TIRES AND WHEELS(Right)
ASSEMBLY OF THE TIRES AND WHEELS(Left)
86082
Comic Tires
86082
Comic Tires
81092
Inner sponge
81092
Inner sponge
86034
Wheel
86034
Wheel
* Make two tires for right hand side.
* Notice the direction of the tires.
* Make two tires for left hand side.
* Notice the direction of the tires.
15072
Blue
Wheel Nut
15072
Blue
Wheel Nut
15072
Blue
Wheel Nut
15072
Blue
Wheel Nut
IN
ST
A
N T
L
G
U E
Apply instant glue into the groove of the wheel.
