OFNA Racing Ultra Comp2 - Manual (Page 22)

10330
7mm
Tapper Corn
10330
7mm
Tapper Corn
Step1 Step2
Step 6 Step 5
Fit the flywheel using
a cross wrench or
10mm socket.
10040
3 Pin
Flywheel
10098
SG Clutch Nut
*Place the clutch shoes with
the clutch springs over the
3 pins of the flywheel.
*Using a phillips screw driver
or needle nose pliers and
bend the small end ln the
clutch spring behind the
pilot shaft 10091 or 10098
than press down.
10099
5x9x0.3mm
Washer
Step3
34110
5x10x4mm
Ball bearing
10400
Clutch Bell
(14T)
10099
3x10mm
Cap Screw
31989
Manifold
¡ -1 3 9 M a n ifo ld S p rin g
10068
Manifold Adapter
31990
Muffler
10180
Sillcone Tube
Nylon Straps
(Middle)
35313
M3 Nylon Nut
X4
30481
3x16mm Cap Screw
10099
3x10mm Cap Screw
X1
X4

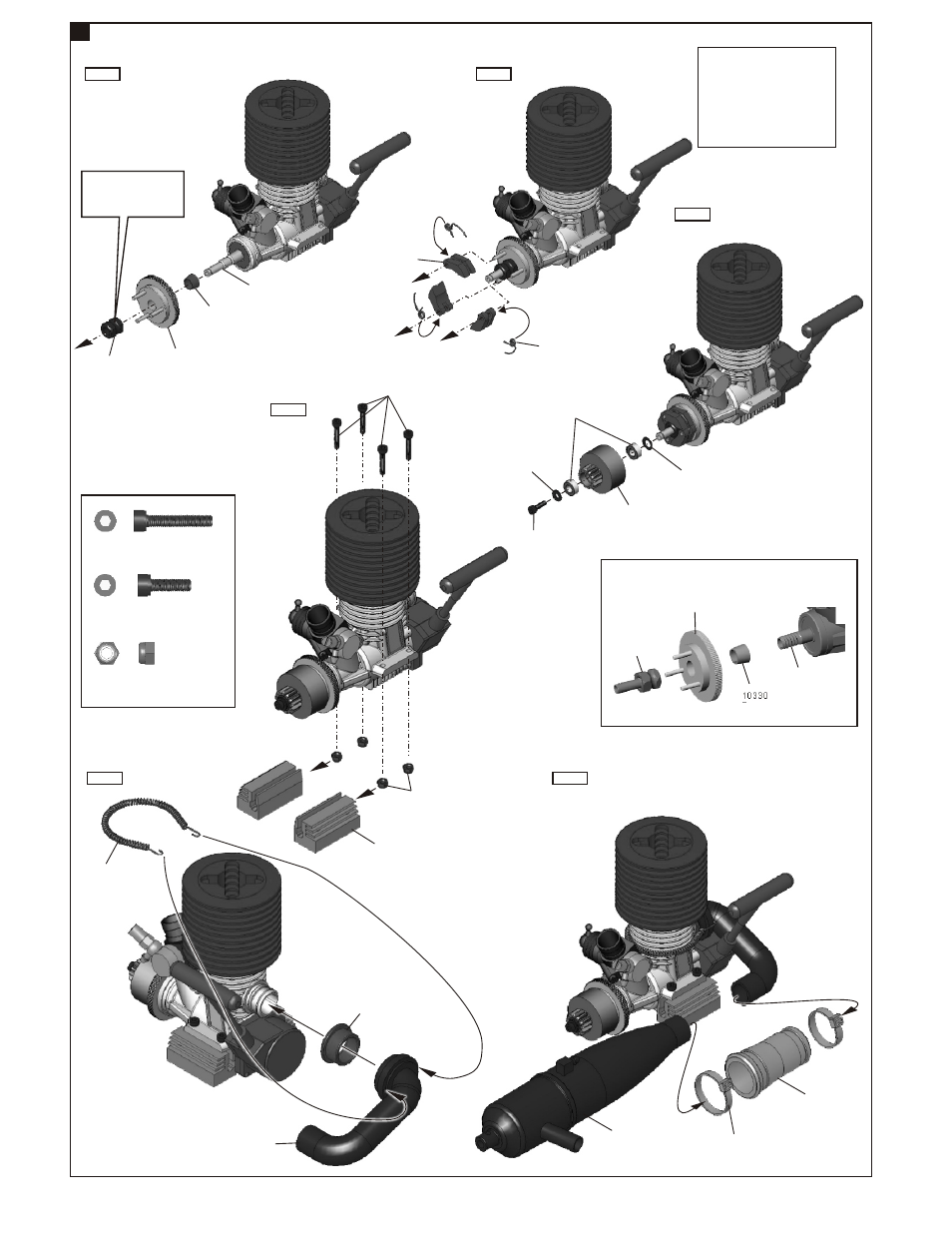

ASSEMBLY OF THE CLUTCH
* Only use this 10091 pilot shaft for threaded crank
shaft engine.
SG Type
Crank Shaft
10091
Pilot Shaft
Threaded Crank
Shaft Engine
Step4
30481
3x16mm
Cap Screw
*Put the nylon nut into the
groove of the engine mount.
10099
3x8x1mm
Washer
10100
Clutch Spring
10010
Clutch Shoes
30480
Engine Mount
30481
M3 Nylon Nut
10040
3 Pin Flywheel
31
