Assembly of the radio tray onto chassis – OFNA Racing Ultra Comp2 User Manual
Page 20
34070
Rear Stiffener
38120
Alum.
Fuel Tank Post
X7
94019
3x10mm
Flat Head Hex
Screw
94003
3x10mm
Flat Head Hex
Screw
94003
3x10mm
Flat Head Hex
Screw
94003
3X10mm
Hex Screw
X4
94003
3X10mm
Hex Screw
94003
3X10mm
Hex Screw
94019
3x10mm
Flat Head Hex
Screw
94004
3X12mm
Hex Screw
94004
3X12mm
Hex Screw
X2
40109
Fuel Tank
40109
Fuel Tank
Pressure
Nipple
Pressure
Nipple

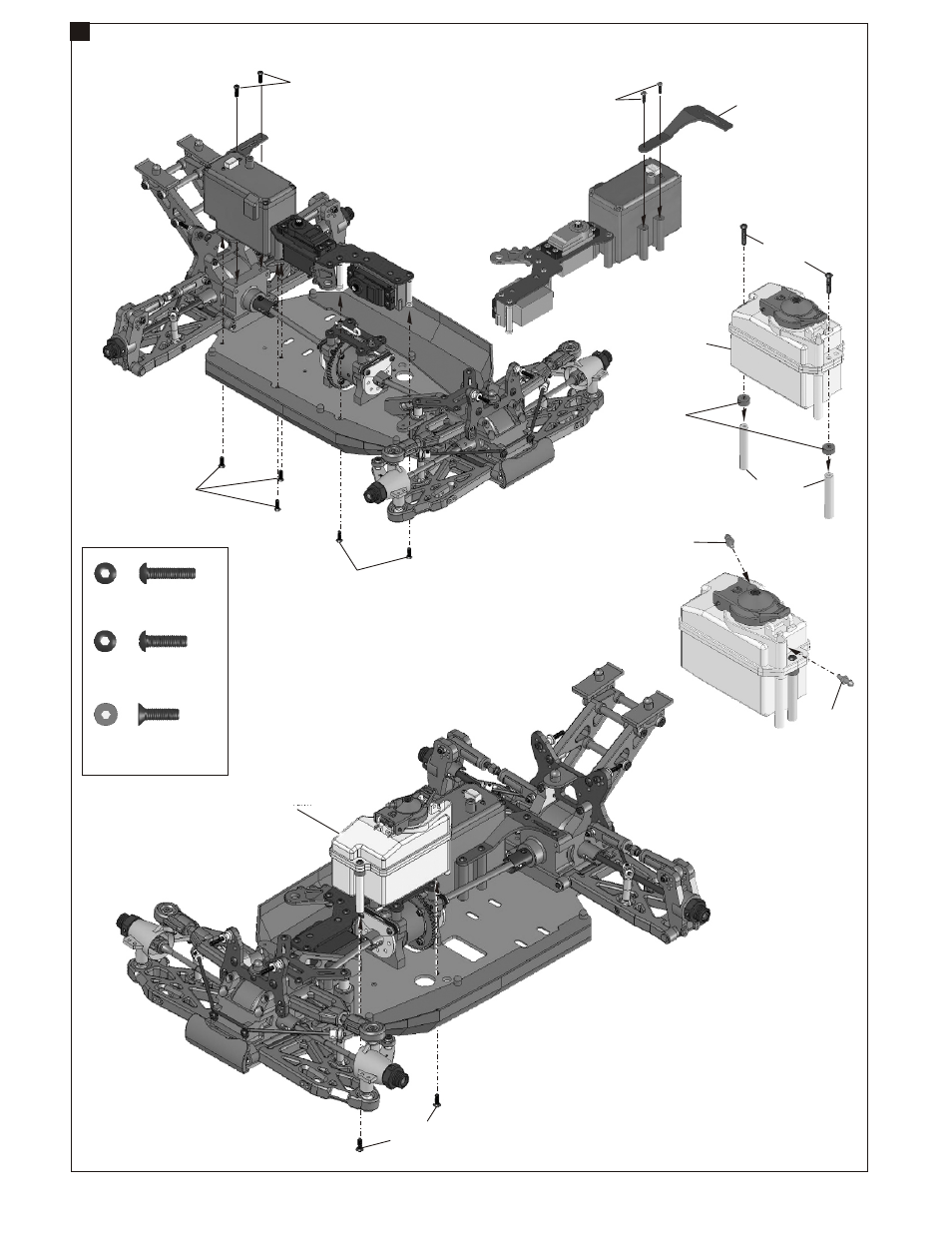

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS
30286
Plastic
Washer
30
