Assembly of the fuel tube – OFNA Racing Ultra Comp2 User Manual
Page 25
35313
3mm
Nylon Nut
40056
Plastic
Bushing
* Take the plastic bushing
from the shock plastic
parts tree.
* Take the plastic bushing
from the shock plastic
parts tree.
3x20mm
Cap Screw

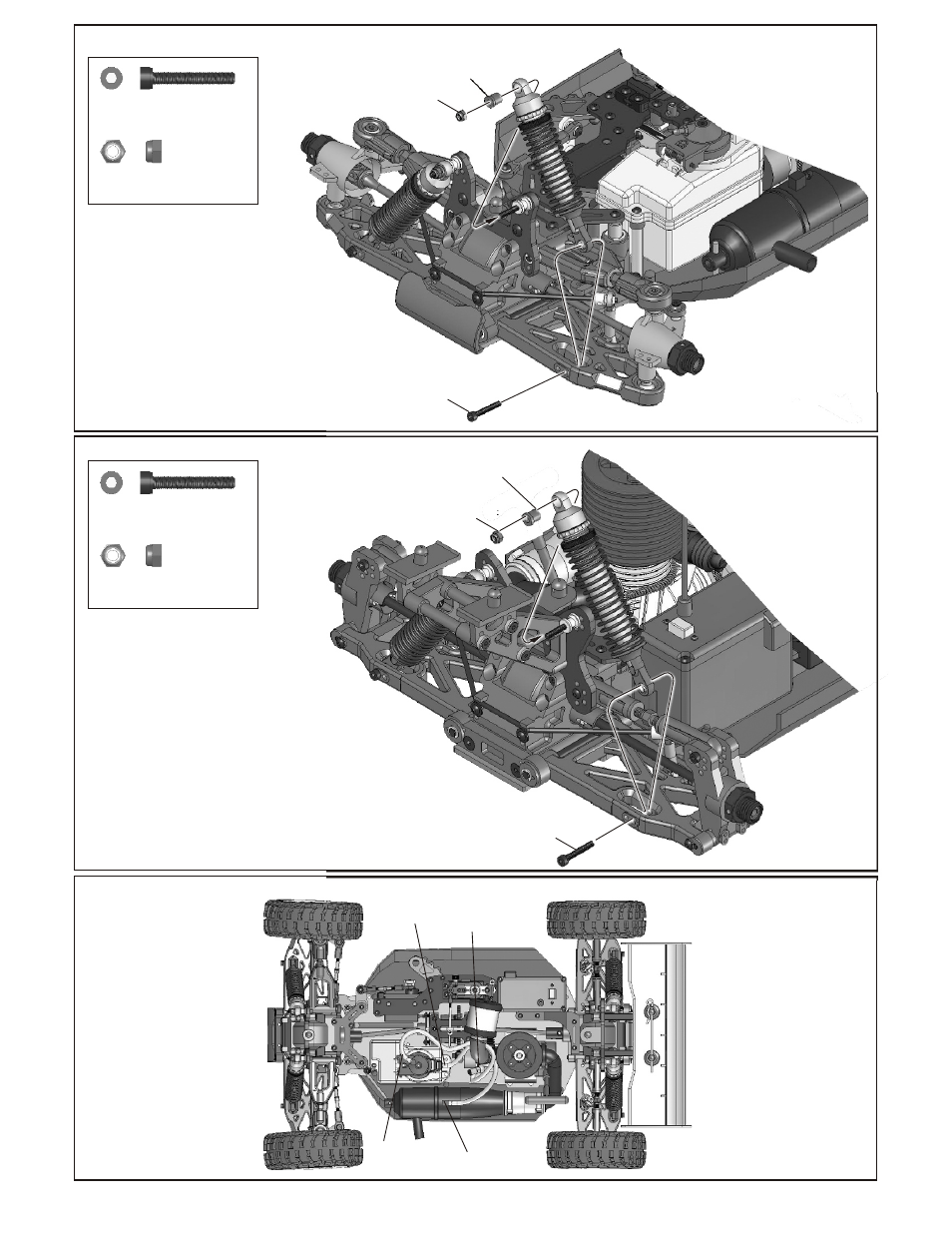

ASSEMBLY OF THE FRONT SHOCK ABSORBER
ASSEMBLY OF THE REAR SHOCK ABSORBER
3mm
Nylon Nut
40056
Plastic
Bushing
3x20mm
Cap Screw
35313
M3 Nylon Nut
M3 Nylon Nut
M3 Nylon Nut
X2
X4
X2
X2
X4
X2
3X20mm
Cap Screw
3X20mm
Cap Screw
3X20mm
Cap Screw
Cut the silicone tube depending on
engine and muffler.
Use the plastic clips to hold the
tubes lines together.
ASSEMBLY OF THE FUEL TUBE
Connect to
fuel tank Nipple.
Connect to
pressure nipple.
Connect to
fuel nipple.
Connect to
carburetor.
