OFNA Racing Ultra Comp2 - Manual (Page 14)

30151
4mm Arm Shaft
36170
3mm
Arm Shaft
40028
Driver Shaft
(93mm)
E « ¬ ¦ ©
90021
3mm
E-Ring
90021
3mm
E-Ring
34035
Plastic Washer
34035
Plastic Washer
36081
Wheel
Rear Hub
36053
8x16x5mm
Ball Bearings
36053
8x16x5mm
Ball Bearings
90026
5X5mm
Set Screw
X4
X4
X2
X2
X2
X2
X2
90021
3.0mm E-Ring
36850
7mm Ball
36850
7mm Ball
36880
Turnbuckle
35313
M3
Nylon Nut
35313
M3
Nylon Nut
X2
90026
5x5mm
Set screw
94006
3X18mm Screw
94001
3X4mm Screw
94001
3X4mm
Screw
35313
M3 Nylon Nut
40065
Upper arm
Plastic Rod End
40065
Upper arm
Plastic Rod End
36055
2.5x16.8mm
Pin
36082
Rear Wheel
Axle Shaft
18mm

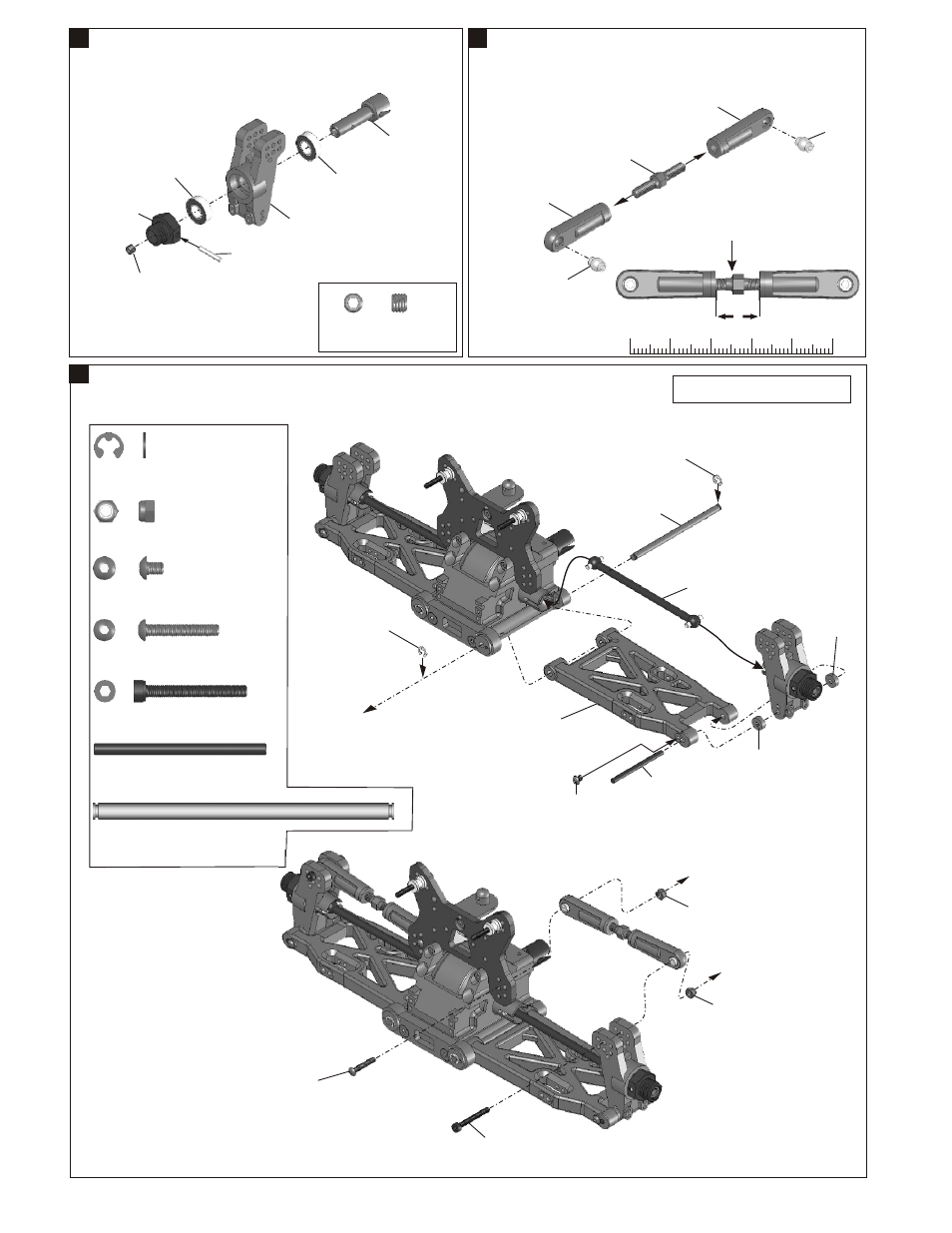

ASSEMBLY OF THE REAR WHEEL HUB ASSEMBLY OF THE REAR UPPER ARM ROD
*Builds two rear wheel hubs for use. * Builds two rear upper rods for left
and right hand-side.
* Anticlockwise mark.
90018
3X25mm Cap Screw
90018
3X25mm
Cap Screw
ASSEMBLY OF THE REAR LOW ARMS INTO GEAR BOX
0 10 20 30 40 50
mm
Assembly of the right and left hand side
are the same.
* Insert the rear drive shaft
before assembly.
36054
Wheel Hub
94006
3X18mm
Screw
36170
3mm Arm Shaft
30151
4mm Arm Shaft
34035
Rear Lower Arm
18 19
20
