OFNA Racing Ultra Comp2 User Manual

Page 10

90026
5x5mm Set Screw

36055
2.5x16.8mm Pin

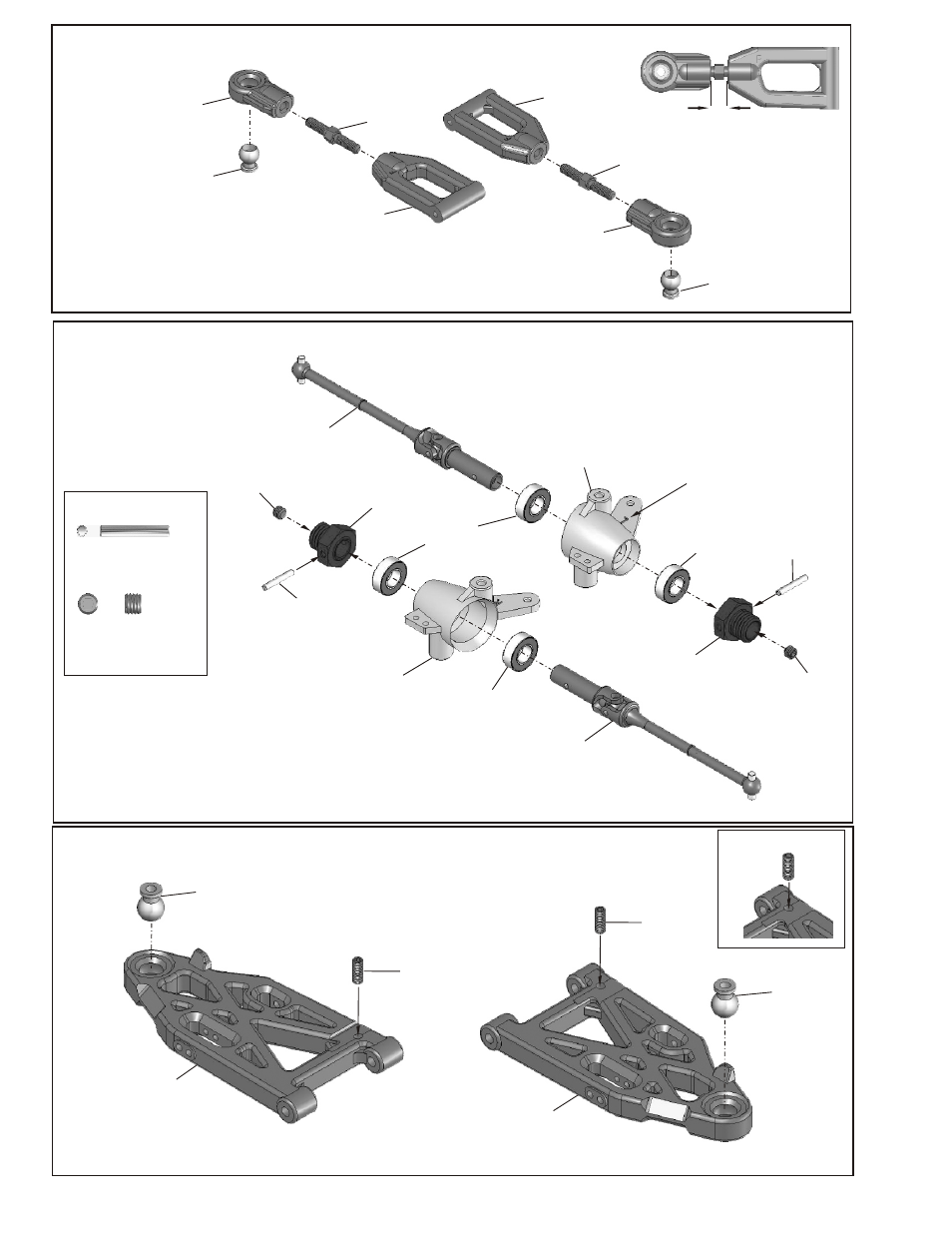

ASSEMBLY OF THE FRONT UPPER ARMS

ASSEMBLY OF THE KNUCKLE ARMS

ASSEMBLY OF THE FRONT LOWER ARMS

40104
10mm
Ball and Socket

36860
5x35mm

40104
10mm
Ball and Socket

34034
Front Upper
Arm Ball End

34034
Front Upper
Arm (Right)

34034
Front Upper
Arm (Left)

34034
Front Upper
Arm Ball End

40104
10mm
Steering Ball

40103
Knuckle Arm
(Right)

40103
Knuckle Arm
(Left)

34035
Front Lower
Arm

34036
Front Lower
Arm

36055
2.5x16.8mm
Pin

36054
Wheel Hub

36053
8x16x5mm
Ball bearings

36152
Universal Joint

36870
4x10mm
Set Screw

90026
5x5mm
Set Screw

36870
4x10mm
Set Screw

* Leave 8mm

*"L" mark for left side.

* Builds two upper arms for use.

* A4x10mm set screw is used
to adjust the ride heigh.
