94002
3x8mm
Screw

X2

X2

3x8x0.8mm
Washer

94002
3x8mm button Screw

3x8x0.8mm
Washer

30341
Stabilizer Ball

30403
6mm Ball

40029
Stabilizer
Ball End

40029
Stabilizer
Ball End

34035
M3x8mm
Set Screw

94006
3x18mm Screw

34035
M3x8mm Set Screw

X2

X2

A

B

94033
M3x3 Set Screw

X2

94033
M3x3
Set Screw

* Cut the plastic as shown.

34037
Caster Adjuster

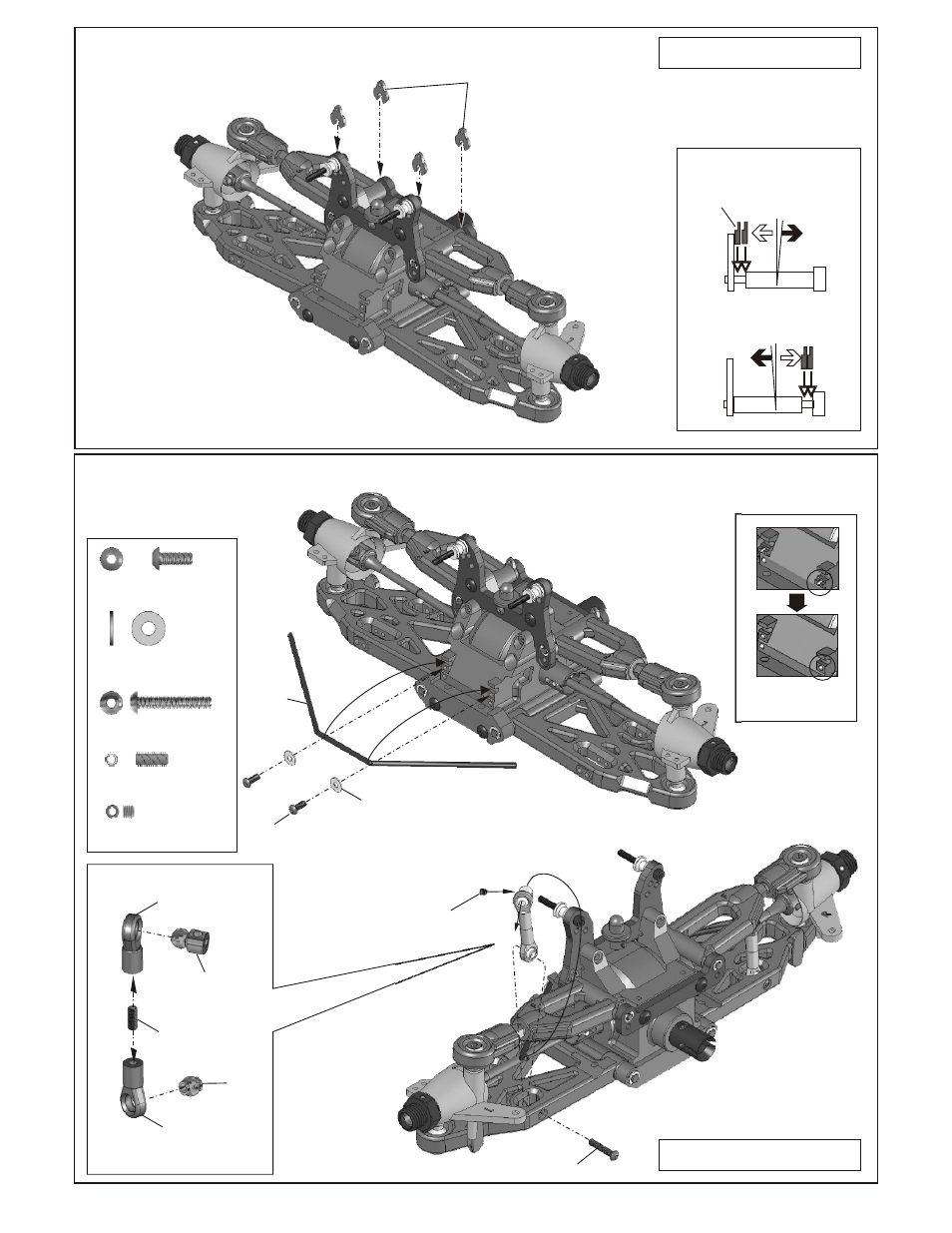

CLIP IN THE CASTER ADJUSTER

Assembly of the right and left hand side
are the same.

ASSEMBLY OF THE FRONT STABILIZER

34027
Stabilizer

*

o change the caster angle .

use adjuster t

*Caster angle will
become bigger.

*Caster angle will
become less.

Caster
Adjuster

94006
3x18mm
Screw

Assembly of the right and left hand side
are the same.
