Assembly of the gear box onto chassis – OFNA Racing Ultra Comp2 User Manual
Page 17
14.
14.
36100
Center Drive
Shaft(Front)
94027
4x16mm
Flat Head
Hex Screw
94023
3x25mm
Flat Head Hex Screw
x2
*Insert center drive shaft into
cap joint
Center Diff.
Assembly
94026
4x12mm
Flat Head Hex Screw
x2
94027
4x16mm
Flat Head Hex Screw
x8
94019
3x10mm
Flat Head Hex Screw
x2

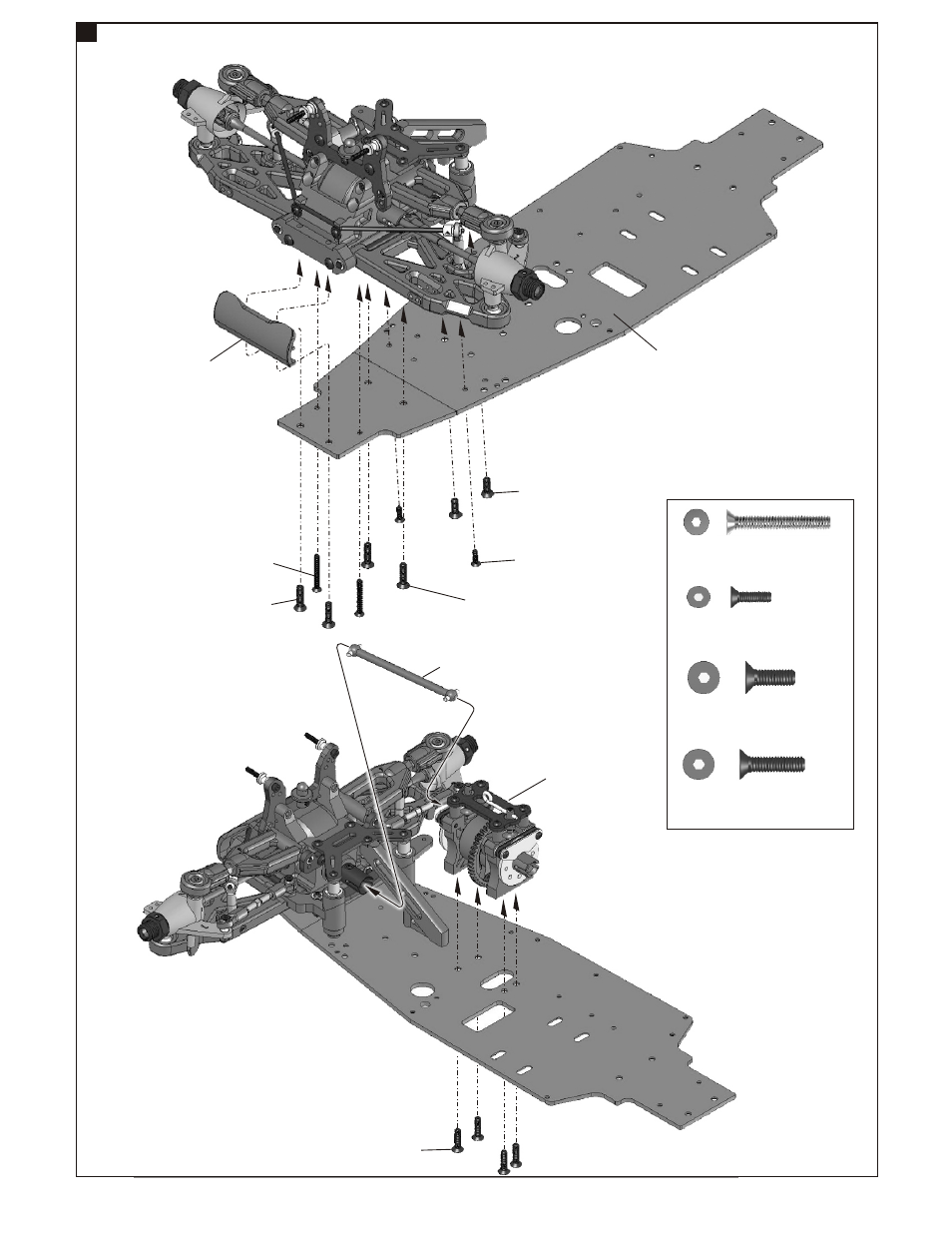

ASSEMBLY OF THE GEAR BOX ONTO CHASSIS
94023
3x25mm
Flat Head Hex Screw
94027
4x16mm
Flat Head Hex Screw
94019
3x10mm
Flat Head Hex Screw
94026
4x12mm
Flat Head Hex Screw
94027
4x16mm
Flat Head Hex Screw
34016
Chassis (Hard-Coated)
34035
Front Bumper
26
