Park Tool Spoke Tension Meter - Manual (Page 6)

Park Tool Co. 5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
1
7
2
6
6
8
3
3
4
5
9
9
10
11 12
13
14
15
16
17
17
18
18
19
20

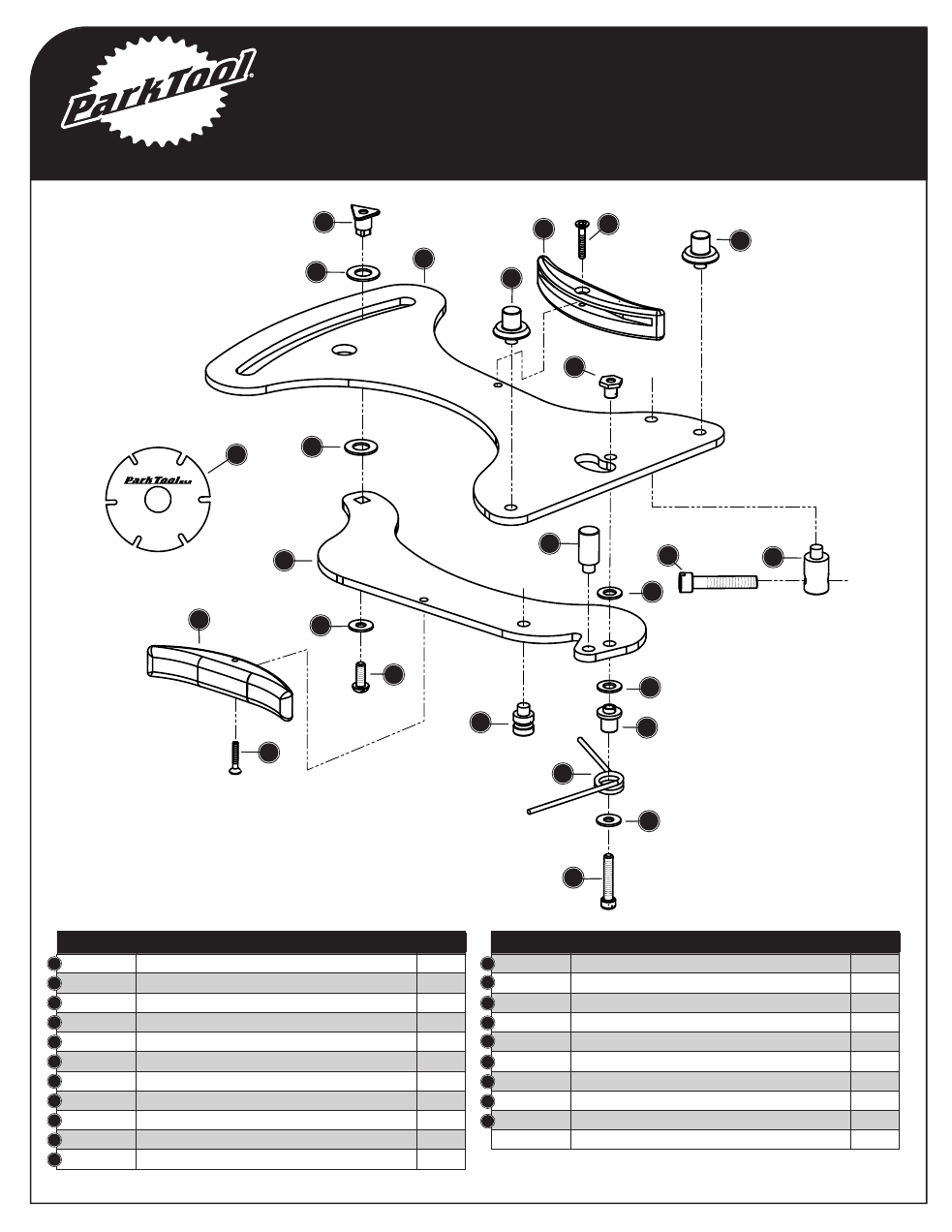

TM-1 Part Numbers
Part No. Description Qty.
1040 Body 1
1041 Lever 1
1042-2 Fixed Post 2
1043 Moveable Post 1
1044 Axle 1
1045-2 Axle Washer 2
1046 Spring Holder 1
1047 Spring 1
1048-2 Spring Holder/Pointer Washer 2
1049 Spring Holder Screw 1
1050 Spring Adjustment Post 1
Part No. Description Qty.
1051 Spring Adjustment Screw 1
1052 Spring Stop 1
1053 Pointer 1
1054 Thin Pointer Washer 1
1055 Thick Pointer Washer 1
1056-2 Grip 2
1057-2 Grip Screw 2
1058 Pointer Screw 1
1059 Spoke Gauge 1
1060 Conversion Table (not shown) 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TM-1 Tension Meter
