Saddle Box
USER INSTRUCTIONS
Page 15
ENGLISH

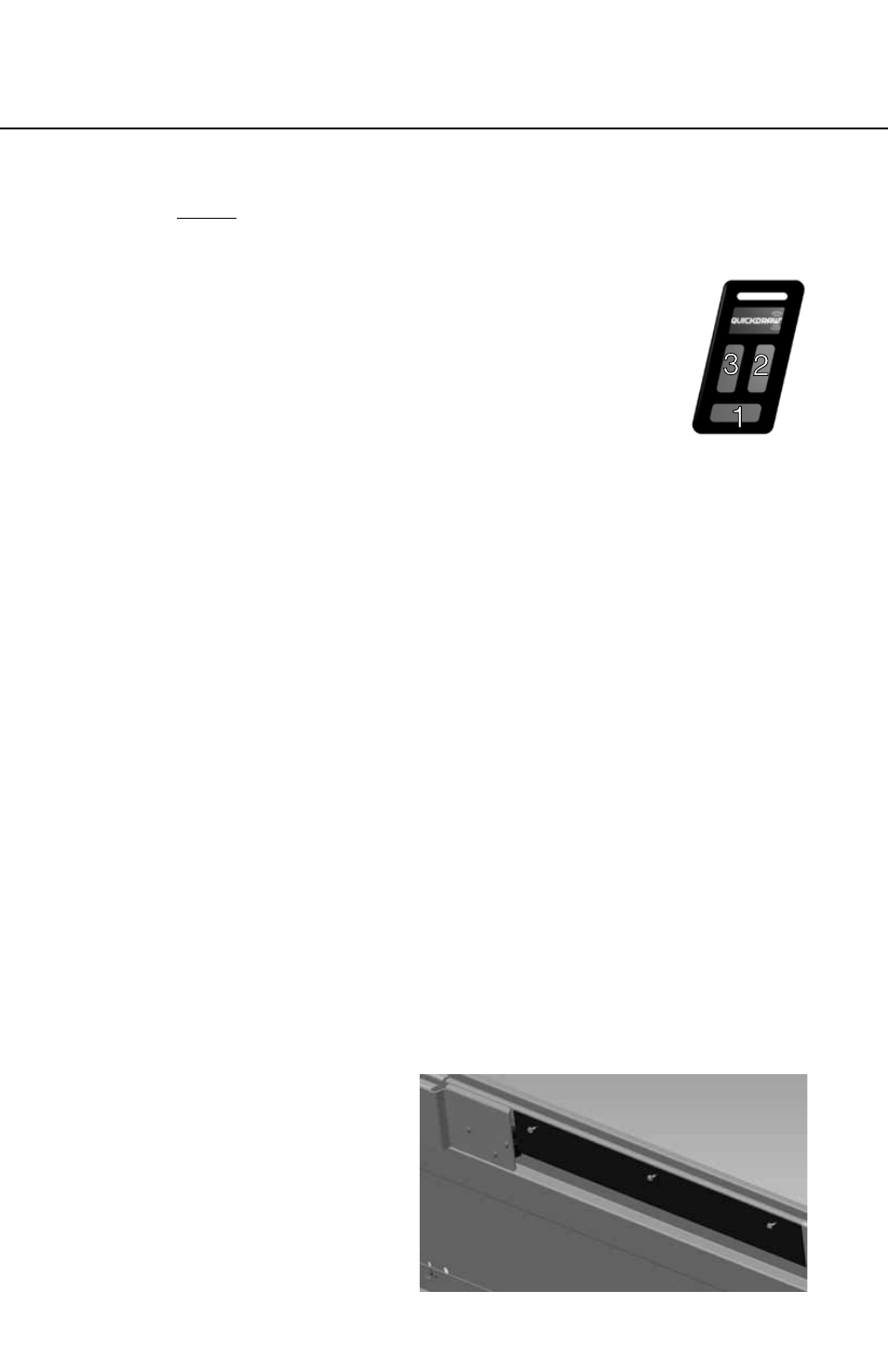

b. Test 2: Push Button Remote Operation
1. Ensure truck box lid is closed and all push button locks are in
locked position, and QuickDraw FOB is within
100 ft of the truck.
2. Test QuickDraw push button remote function by
depressing and holding button 1.
• If truck box opens correctly, proceed with
final installation steps. (Buttons 2 and 3
can be programmed for optional lo-side
QuickDraw Boxes)
• If truck box does not open correctly, double-check all
electrical connections and repeat testing.
VII. final Installation
a. Use the two large velcro disks to attach the system module to the
saddle box and use wire ties and adhesive squares to hold the wire
harness in place where needed.
b. Install Wire Harness Cover
Measure and trim to fit as necessary. Fasten wire harness
cover plate up and against the inside lip of the saddle
box, using three of the self-tapping screws provided. See
Figure 19. Tuck the wires between the ridges of the wire
cover.
c. Install system module cover
• Coil excess wire harnesses neatly and tie together
• Put protective cover in place using slotted tabs a guides.
Carefully tuck wiring underneath See Figure 20.
• Secure protective cover in place using self-tapping
screws provided.
figure 19
