Saddle Box
USER INSTRUCTIONS
Page 11
ENGLISH

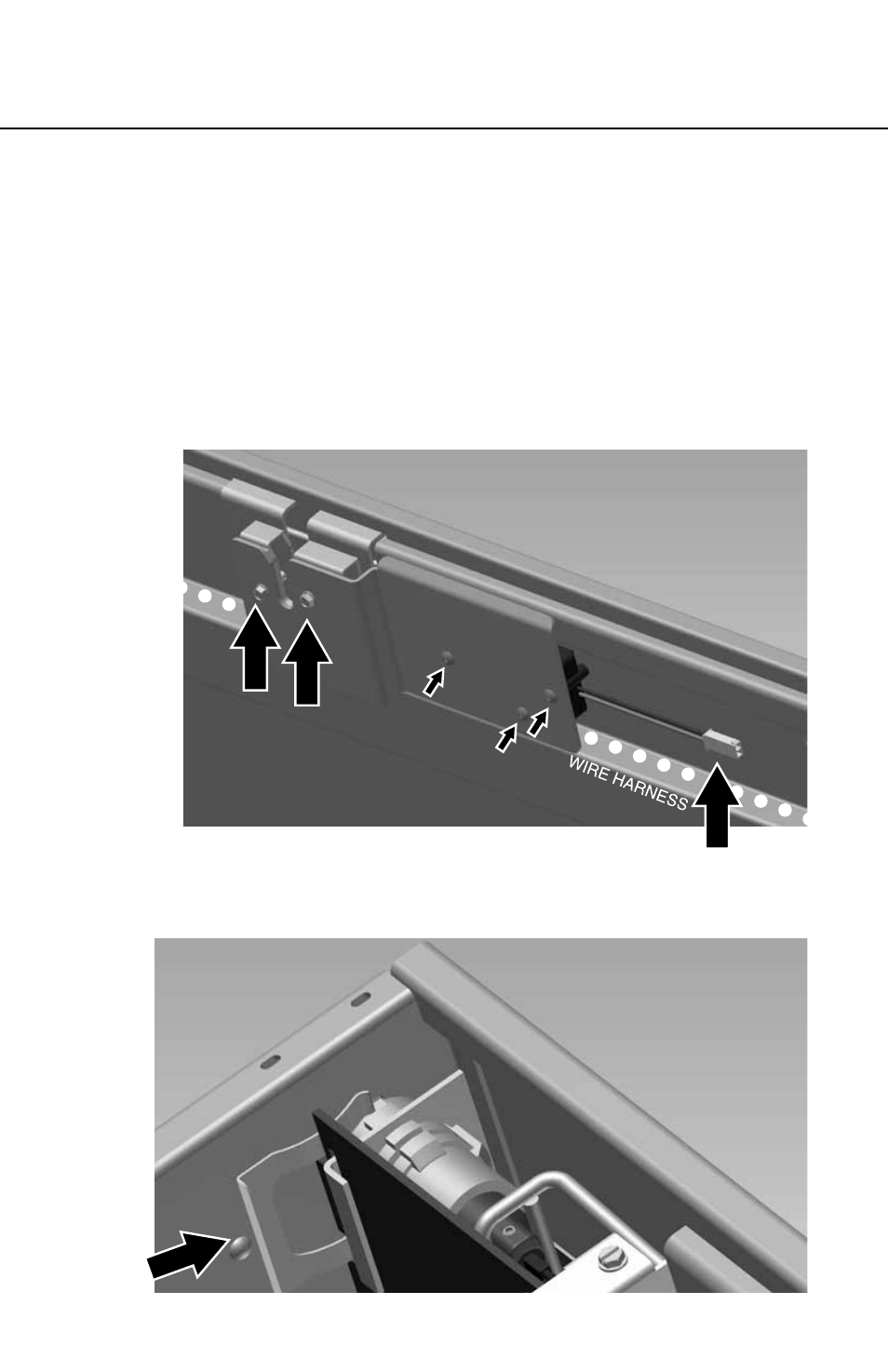

figure 11
figure 12
i. Install the new locks with switches and wire harnesses attached.
Use the original locking clips and gasket to fasten the locks in place.
See Figure 12.
g. Complete actuator and bracket assembly installation. See Figure 11.
1. Tighten the (3) screws holding the actuator to the bracket all the
way down.
2. Bolt the bracket and latch back to the box using the original
bolts. Be careful not to over tighten. See Figure 11.
h. Plug the actuator connector into the main saddle box wire harness.
See Figure 11.
