Satellite Paperguard 3 Roll - Manual (Page 2)

PN 18142/REV D 6/15/11
Taurus
®

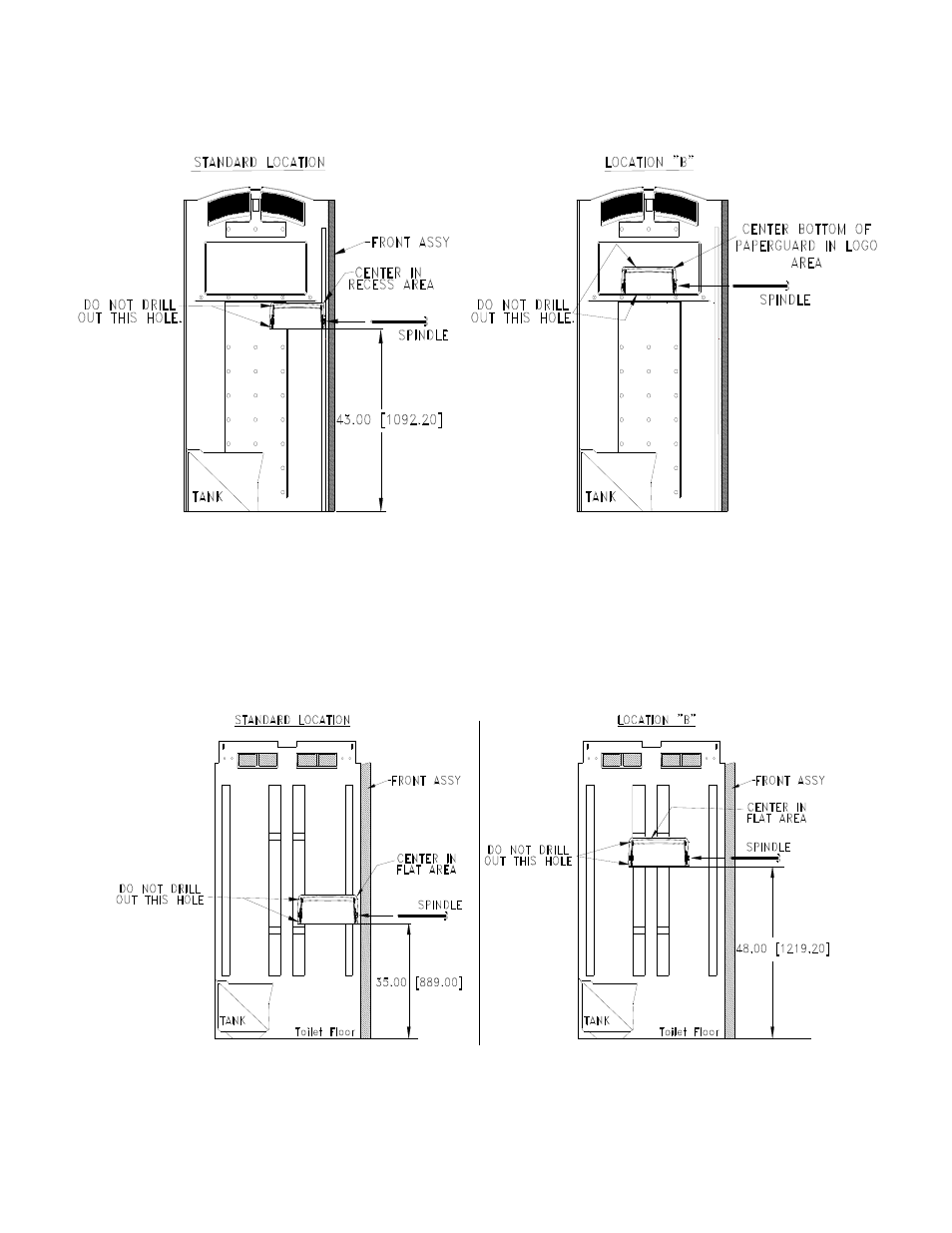

1. Hold and level paperguard in location shown below. Transfer drill through (4) holes in paperguard
with a #10 (3/16”) drill bit drill through panel wall.
2. Insert spindle as shown below.
3. Fasten with #11054 Rivet and #11315 Washer (Rivets on the outside of toilet).
High Tech 1
®
1. Hold and level paperguard in location shown below. Transfer drill through (4) holes in paperguard
and with a #10 (3/16”) drill bit drill into panel wall. NOTE: Be careful to drill through first layer
ONLY.
2. Insert spindle as shown below.
3. Fasten with #18543 Rivet Peel.
