Satellite MX3 Turbo Plst Bowl - Manual (Page 2)

19050 REV E 2

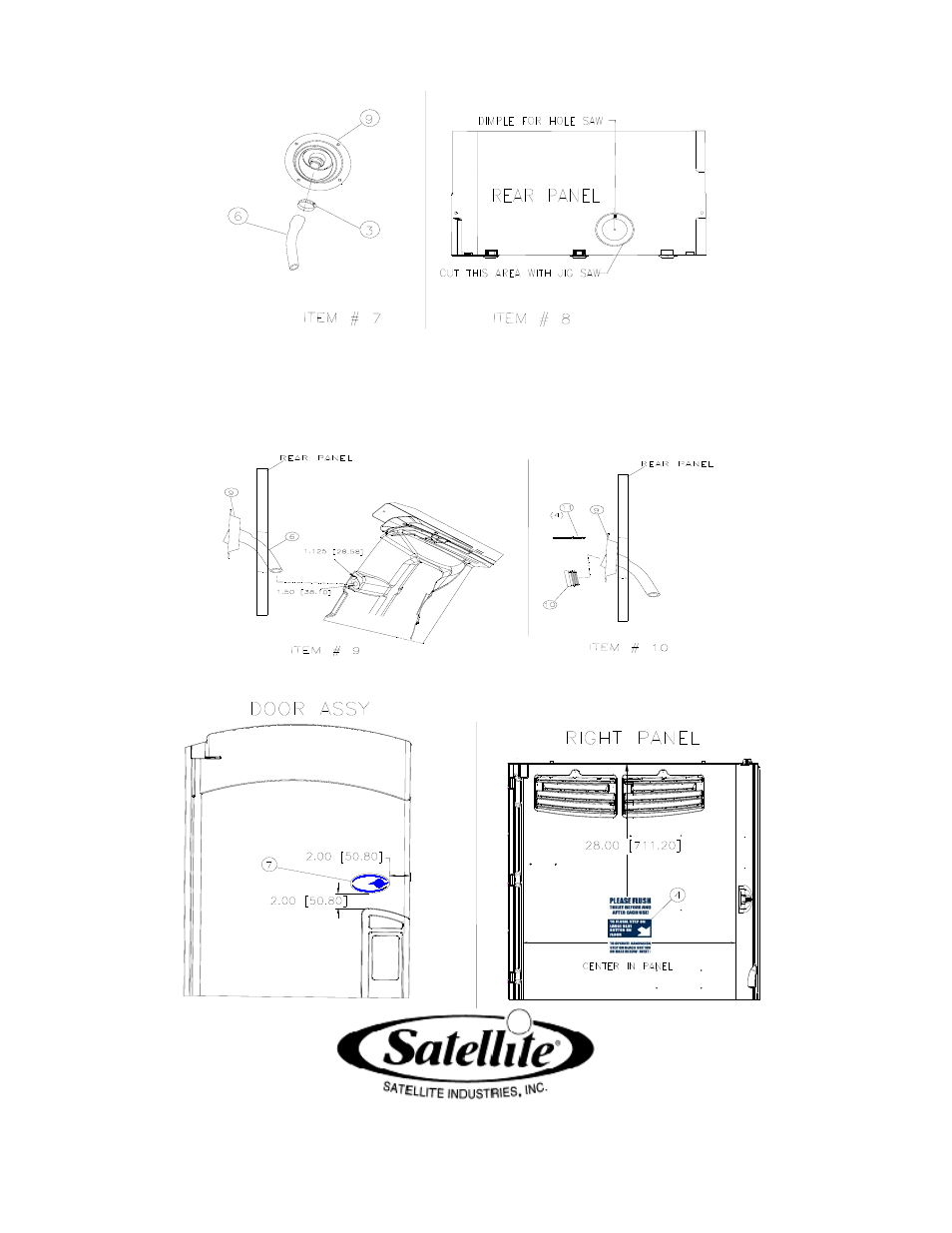

7. Fasten hose to plate fill/pump out with hose clamp. (SEE ITEM # 7)
8. Drill out hole in rear panel. If using a hole saw, use a 5-1/2’ hole saw and use dimple in panel for starting point. If using a jig
saw, cut out outside edge of the recess. (SEE ITEM # 8)
9. Insert the large hose into the 1-1/2” [38mm] hole in base. Note the curvature of the hose goes downward and fits into the
hole in the base hole without kinking. (SEE ITEM # 9)
10. Fasten plate to panel. Using the plate as a fixture, drill out a one of the holes with a #10 [5mm] drill bit. BEING CAREFUL
TO JUST DRILL THROUGH FIRST LAYER. Fasten plate to panel with rivet and repeat step to (3) remaining holes in
plate. (SEE ITEM # 10)
11. Push plug in plate hole. (SEE ITEM # 10)
12. Apply Icon and decal to door and panel.
