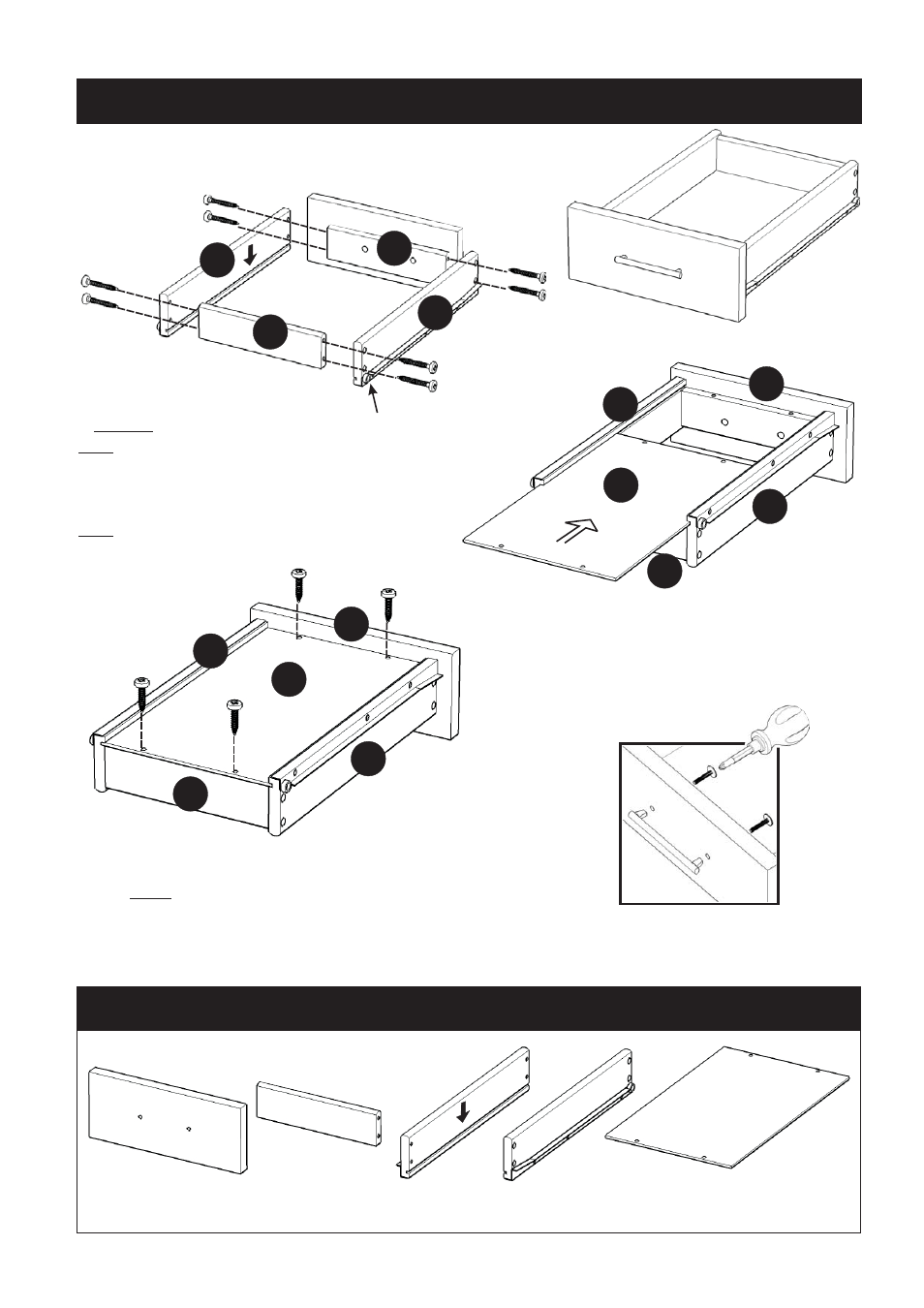

Figure 2
MAKE SURE ROLLER
IS ON THE BACK
X2
X3
X4
X5
X5
X1
Figure 3
Figure 4
Insert wood screws (4X)
into the pre-drilled holes in X5
and tighten. (see Figure 3)
short
Slide X5 into the grooves in X3
and X4. Be sure to push X5 all
the way forward so it meets X1.
(see Figure 2)
STEP 2
STEP 3
STEP 4
Tighten all screws used in drawer assembly.
Assemble Pull Handle with
machine screws. (see Figure 4)
Assembly Instructions 7/8
Part List
X1.
Front Part
1 pc. X5.
Base Part
1 pc. X2.
Back Part
1 pc. X3.
Side Part
1 pc. X4.
Side Part
1 pc.
Drawer (X)
Attach X1 to X3 and X4, using
a
and
wood screws ,
tighten halfway.
Attach X2 to X3 and X4 using
wood screws ,
tighten halfway. (see Figure 1)
Phillips screwdriver
(4X)
(4X)
long
long
X4
X3
X1
X2
Figure 1
STEP 1
N3
X4
X1
X2
X3
