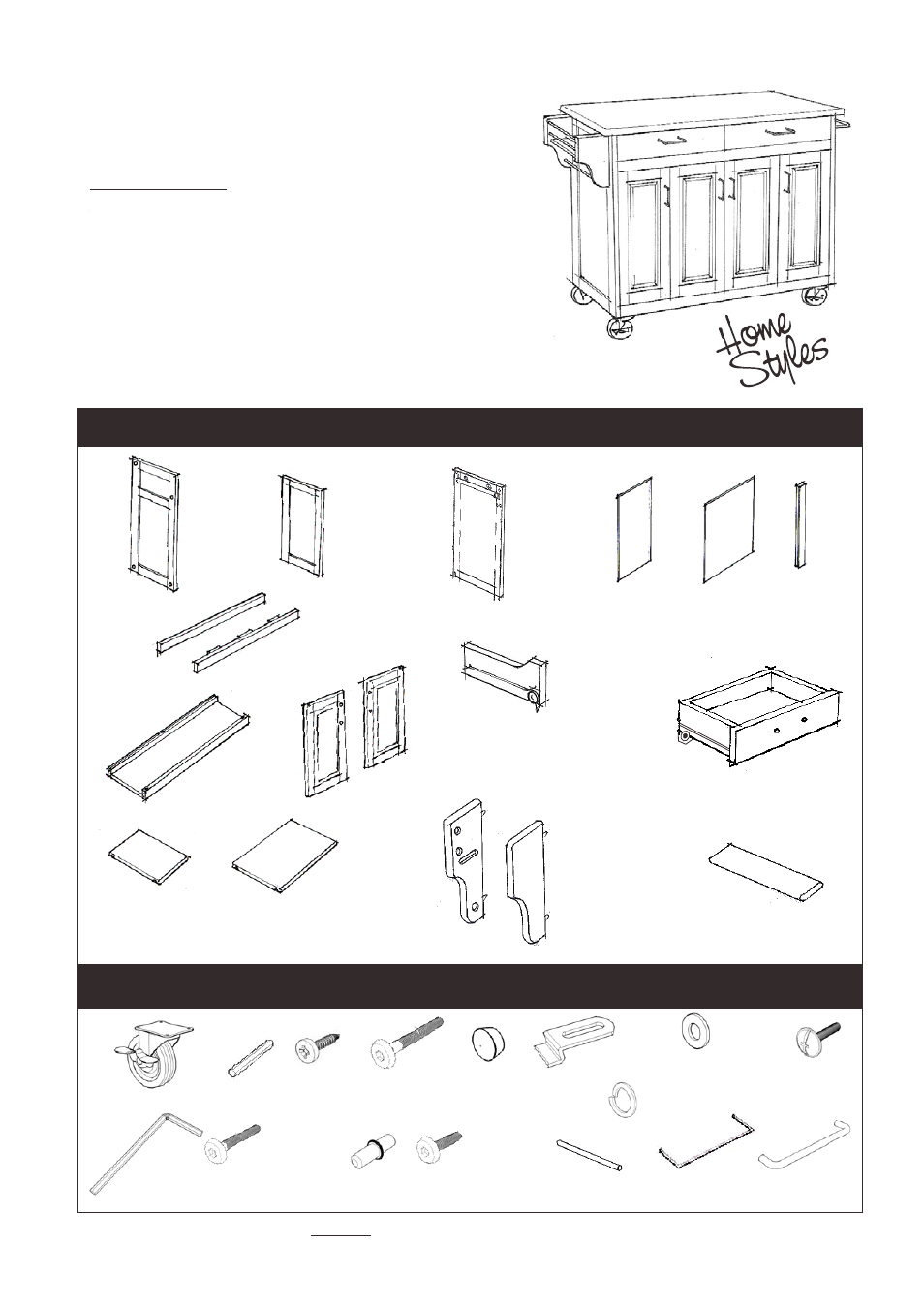

Part list, Hardware list, Kitchen cart

background image

Head Cap Bolt

11 pcs. (+1extra)

Hex Wrench

1 pc.

Pull Handle

4 pcs.

Machine Screw

for Pull Handle

8 pcs.

Wood Screw

for Caster

16 pcs. (+2 extra)

Adjustable Pin

12 pcs. (+2extra)

Head Cap Bolt (short)
for Side Towel Bar

2 pcs. (+1 extra)

Head Cap Bolt
(short) for Top

4 pcs. (+1 extra)

Wood Plug

8 pcs.

(+2 extra)

Caster
two lock
two non-lock

4 pcs.

Steel Plate
Connector
for Top

4 pcs.

Flat

Washer

for Top

4 pcs. (+1 extra)

Spring
Washer
for Top

4 pcs. (+1 extra)

88 9200 001C

Kitchen Cart

PART LIST

B.
Side Panel

1 pc.

C.
Middle Panel

2 pcs.

E.
Back Panel

2 pcs.

F.
Back Panel

1 pc.

G.
Back Piece

2 pcs.

H.
Back Stretcher

1 pc.

I.

Front

Stretcher

1 pc.

J.
Base

1 pc.

K.

Door

.

2 pcs

L.
Door

2 pcs.

(For Drawer N, packed in separate carton
with hardware and assembly instructions.)

P.
Adj. Shelf

2 pcs.

Q.
Adj. Shelf

1 pc.

HARDWARE LIST

D.
Side Panel

1 pc.

M.
Drawer
Divider

1 pc.

N.
KD. Drawer

2 pcs.

O.

Towel Bar

1 pc.

R.

Side Rack

1 pc.

S.
Side Rack

1 pc.

T.
Base Rack

1 pc.

IMPORTANT NOTE

Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.

We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

Tools required for assembly :

Phillips screwdriver

Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319

[email protected]

Small
Hex Wrench

1 pc.

Revised date : 30Oct2012

U.
Brush Chrome Pipes

3 pcs.
