Page 119

Pump size of shaft unit 55
1220:2
2)
Etanorm SYA
20
9.3

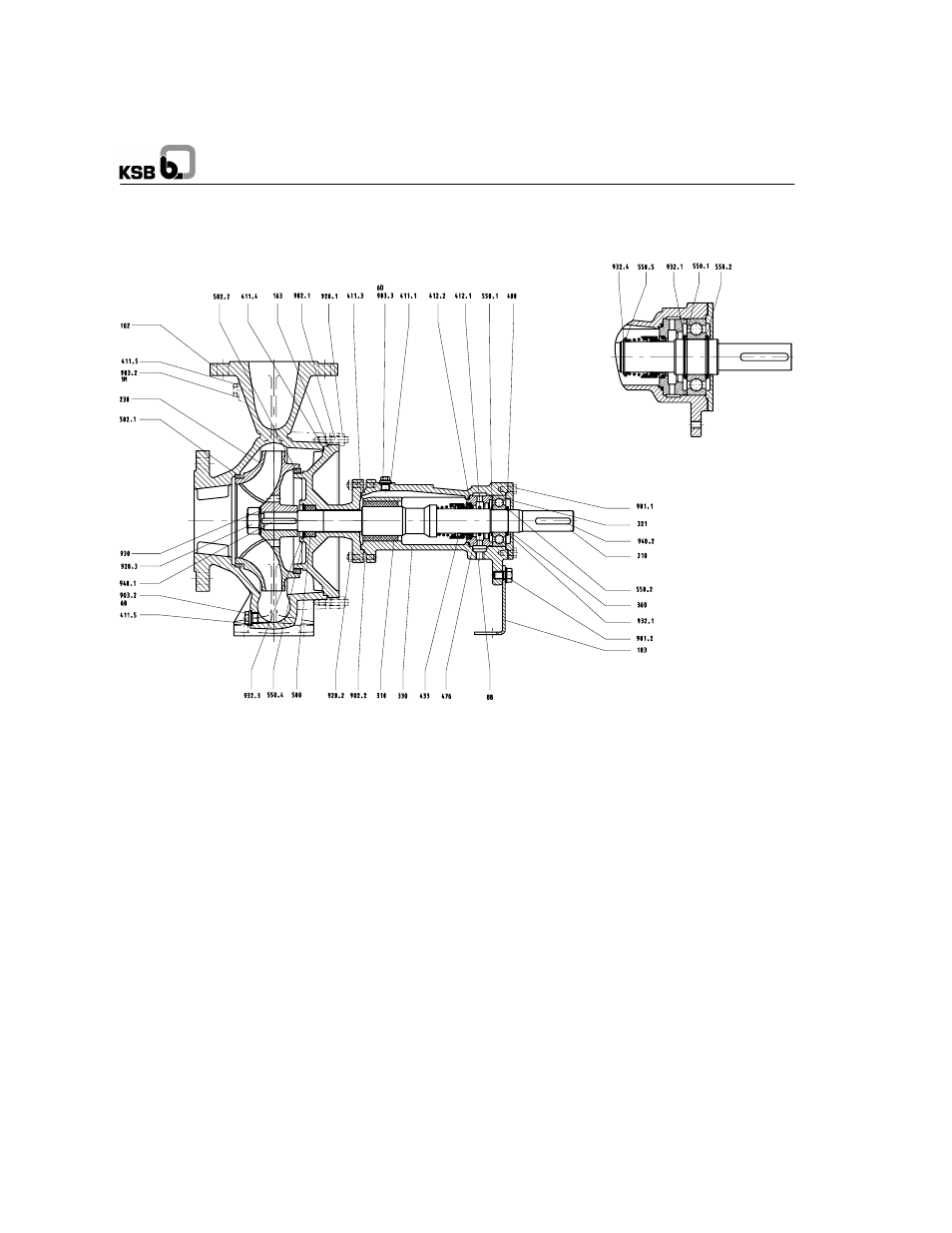

General Drawing and List of Components, Etanorm SYA, SU 35, 55
1)
1) For shaft unit / pump size combinations refer to section 7.6.1
2) Not fitted on pump size 150-400.1
Part No. Description
Part No.
Description
Part No.
Description
102
Volute casing
400
Gasket
902.1/.2
Stud with reduced shank
163
Discharge cover
411.1/.3/.4/.5
Joint ring
903.1/.2/.3
Screwed plug
183
Support foot
412.1/.2
O-ring
920.1-/.3
Hex. nut
210
Shaft
433
Mechanical seal
930
Spring washer
230
Impeller
476
Seat ring holder
932.1/.3/.4
Circlip
310
Plain bearing
500
Ring
940.1/.2
Key
321
Deep-groove ball bearing
502.1/.2
2)
Casing wear ring
99-20
Repair kit
330
Bearing bracket
550.1/.2/.4/.5
Disc
1 M
Pressure gauge connection
360
Bearing cover
901.1/.2
Hex. head bolt
6 B
Medium drain
6 D
Medium venting
8 B
Leakage drain
109
