DU-PR-0013-06 Rev A 2/28/07 GCX Corp Page 4 of 5

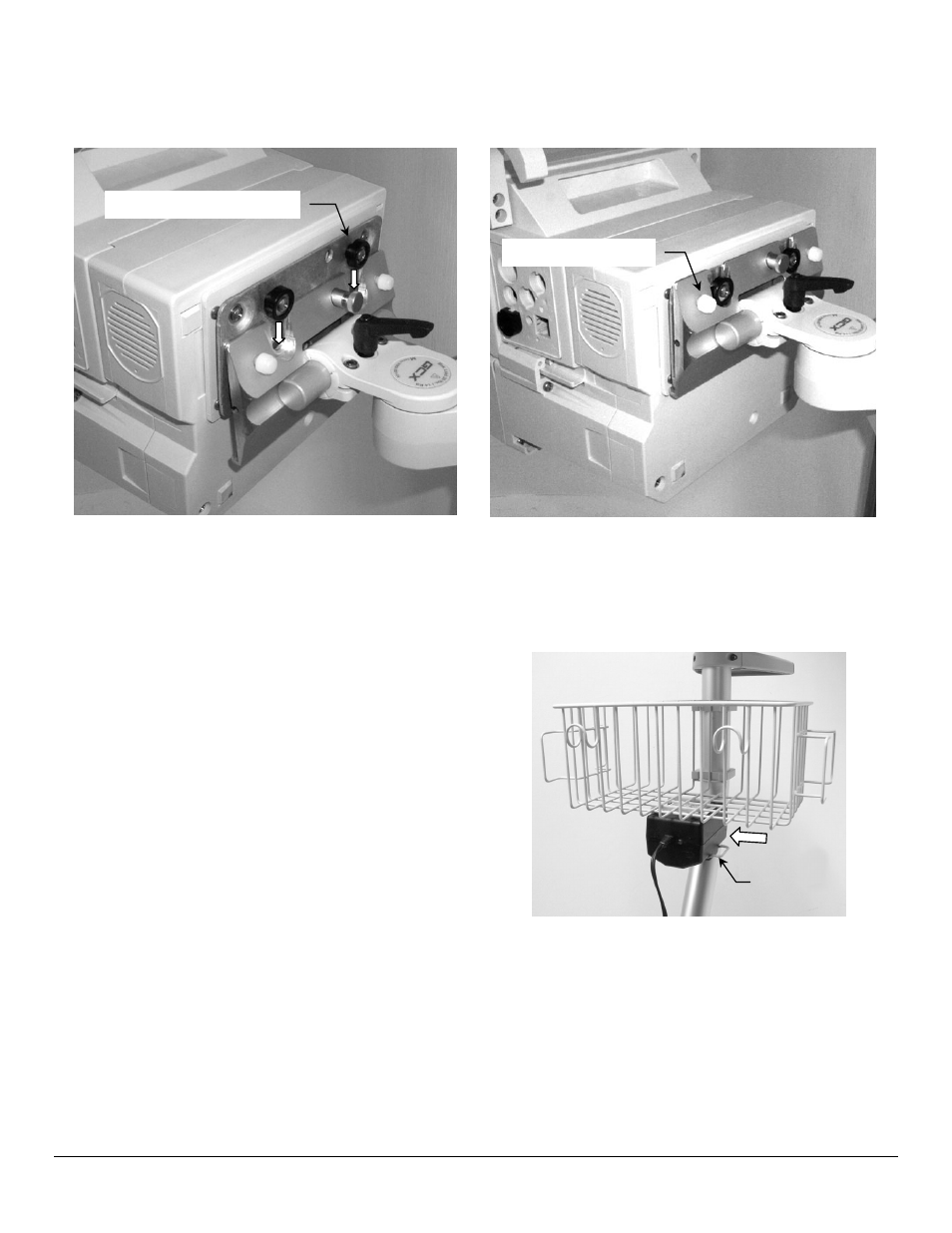

8. Lower two (2) Guide Bushings into slots in the Mounting Plate (below left). The Plunger must snap into the clearance
hole to secure the monitor. Ensure bottom edge of Mounting Adapter engages bottom lip of Mounting Plate. Tighten
two (2) Nylon screws to further secure monitor on Mounting Plate (below right).
9. Insert power supply in the Power Supply Hook on the bottom of the Basket. Note: Power supply shown below is
mounted in a Roll Stand-mounted Basket. Wall-mounted Basket is identical.
10. Install the Wall Channel Cover in accordance with the Channel Cover Installation Guide (DU-UT-0001-20).
Power Supply Hook
Tighten Nylon Screws (2)
Lower Guide Bushings into Slots
