8

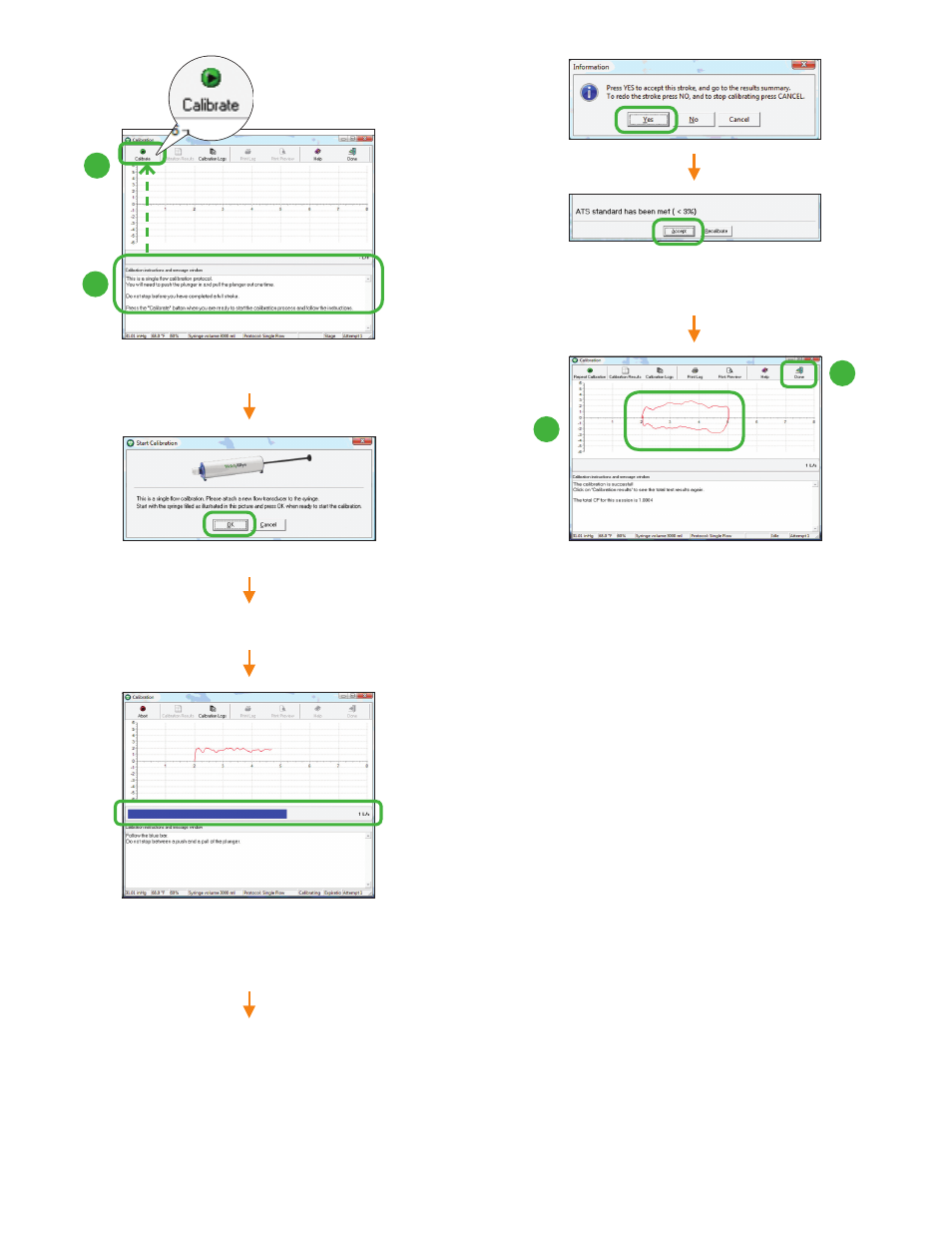

Follow the instructions on this screen.
..3.. ..2.. ..1..
Push and then pull the plunger in sync with the side-
to-side motion of the blue bar. Move steadily, all the
way in and then all the way out, without hesitating
during the stroke.
Don’t worry if your screen says ATS standard has
NOT been met. You don’t need to meet the standard
for this verification.
a
b
(a) Verify that you see a flow loop. Each flow loop looks
slightly different.
(b) Click Done. You have verified that your spirometer is
communicating with the Workstation.
Before performing spirometry tests, be sure to
perform a successful calibration.
(a) Read the instructions on this screen.
(b) Click Calibrate.
a
b
