10
Welch Allyn
CardioPerfect

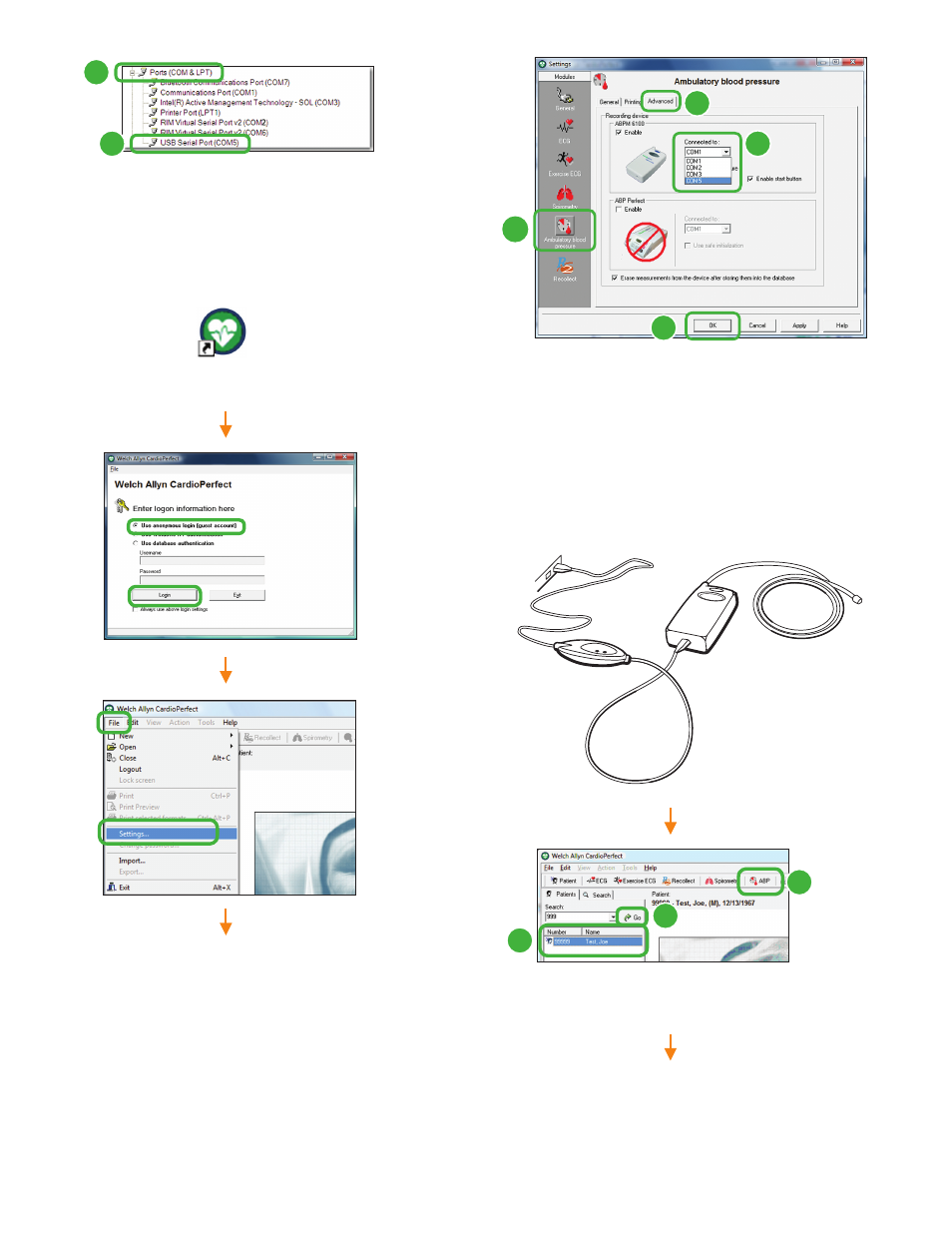

(a) Click this icon.
(b) Click this tab.
(c) Select the COM number appropriate for your recorder.
Use the number you previously made a note of in Step 2, (g).
(d) Click OK.
You can leave the main screen open.
a
b
d
c
4 Verify the installation of the ABPM 6100 recorder.
Attach the cable to the recorder.
(a) Click Go.
(b) Select your test patient.
(c) Click ABP.
b
(next page)
(f) Double-click Ports (COM & LPT).
(g) Make a note of the number associated with the selected
COM port. You will need this number in the next steps.
Allow Windows to install the driver.
3 Select the proper CardioPerfect settings.
g
f
a
c
