After loosening the clamping screw (H), unscrew the
slotted screw (L) found on the back surface until the lens
barrel (J) is removed from the video adapter.
Focus the video device on an object at infinity (at least
100 meters). The image on the monitor is focused by
adjusting the link setting, knurled screw (E), of the con-
nection between the C-mount and the video camera.
After adjusting the link setting of the video camera,
replace the lens barrel by reversing the procedure
described above. Recheck the focusing and adjustment
of the video device according to the procedure laid out in
the sections adjusting and focusing the video adapter.
If the camera does not allow for the link setting adjust-
ment, then the C-mount is already factory adjusted. If
this is not the case, then the video device is only adjust-
able to fit the camera by Welch Allyn. FOR THIS
ADJUSTMENT THE COLPOSCOPE IS NOT REQUIRED.
Replacement Parts
Warranty
One Year Limited Warranty On New
Instruments
Instrumentation purchased new from Welch Allyn, Inc.
(Welch Allyn) is warranted to be free from original
defects in the material and workmanship under normal
use and service for a period of one year from the date of
first shipment from Welch Allyn. This warranty shall be
fulfilled by Welch Allyn or its authorized representative
repairing or replacing at Welch Allyn’s discretion, any
such defect, free of charge for parts and labor.
Welch Allyn should be notified via telephone of any
defective product and the item should be immediately
returned, securely packaged and postage prepaid to
Welch Allyn. Loss or damage in shipment shall be at pur-
chaser’s risk.
Welch Allyn will not be responsible for loss associated
with the use of any Welch Allyn product that (1) has had
the serial number defaced, (2) has been repaired by any-
one other than an authorized Welch Allyn Service Repre-
sentative, (3) has been altered, or (4) has been used in a
manner other than in accordance with instructions.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY
IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS
FOR PARTICULAR PURPOSE, OR OTHER WARRANTY
OF QUALITY, WHETHER EXPRESSED OR IMPLIED.
WELCH ALLYN WILL NOT BE LIABLE FOR ANY INCI-
DENTAL OR CONSEQUENTIAL DAMAGES.
If you have questions regarding any Welch Allyn prod-
ucts, please call Customer Service at (800) 535-6663,
315-685-4100, or FAX:315-685-4653
Service
Customers with instruments requiring service should
contact the Welch Allyn Technical Service Department at
(800) 535-6663, 315-685-4100, or FAX:315-685-4653.

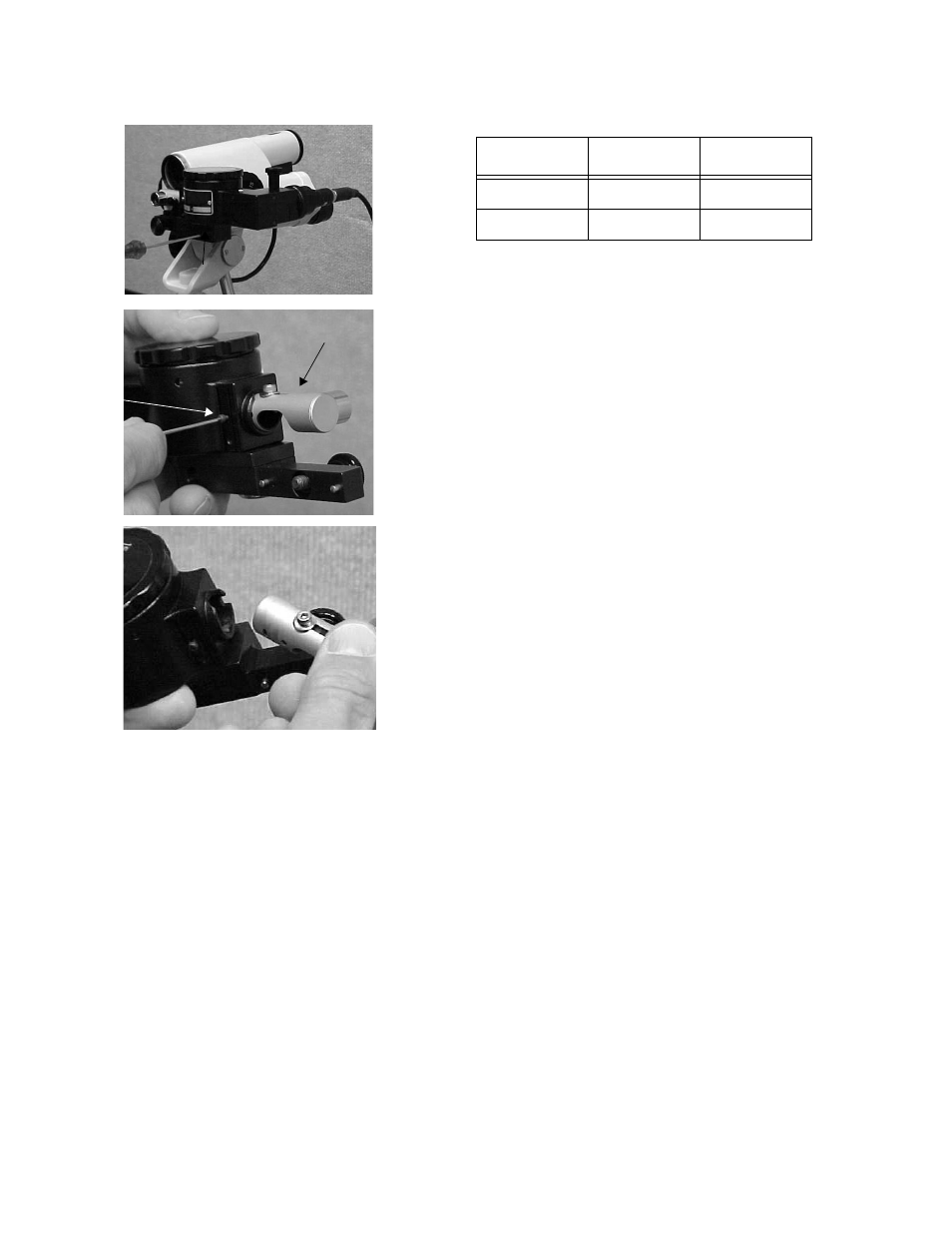

H
L
J
Part REF Quantity
Lamp 08100 1
Fuse 88427 2
