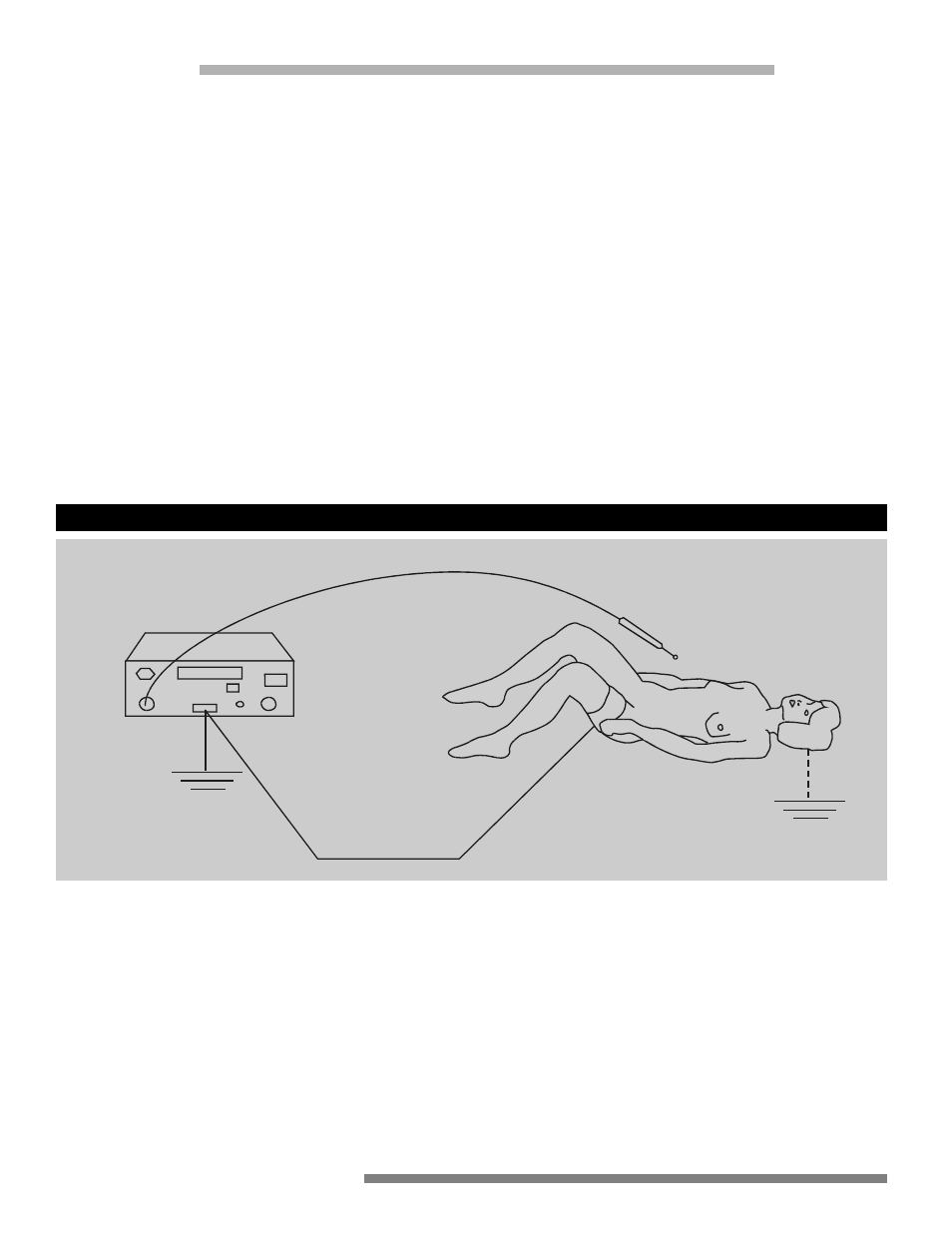

PROPER

Generator

RF current through

patient to return pad

Active Electrode

Grounded

Metal Case

Patient

Two conductor patient

electrode continuity

monitor

Patient return pad

(Thigh)

Patient may be

grounded

3.

Only connect this equipment to a properly grounded receptacle. NEVER use an
adapter that defeats the ground of the built-in three (3) prong plug.

4.

Exercise care when handling liquids around electrical equipment. DO NOT
attempt to operate this equipment if liquids have spilled on the unit. DO NOT
use flammable liquids around electrical equipment.

5.

Never use this equipment in conjunction with other equipment for which safe-
ty against leakage current is not established.

6.

When this equipment is operated:

a.

Use a properly attached Patient Return Pad (dispersive pad) of adequate sur-
face area to the patient or the risk of accidental burns will exist.

b.

Place the Patient Return Pad (dispersive pad) as close as possible to the site
of use of the active accessory but NEVER placed so that the patient’s heart
is in the pathway from the active accessory to the return electrode!

7.

The user should thoroughly understand the principles and use of radio frequen-
cy (RF) current before using this equipment. This understanding is essential to
avoid the hazard of shocks or burns to the user and/or the patient.

I.

PROFESSIONAL USE GUIDE (cont.)

4

Electrosurgical Unit

• Instruction Manual
