Microprocessor controlled for increased precision, accuracy, repeatability, and safety.
•
Adequate power for all monopolar electrosurgical procedures.
•
Accurate selection of discrete power levels.
•
Digital display of output power levels.
•
Choice of radio frequency wave forms including CUT, BLEND, and COAG to
accommodate subtle differences in technique and accessory performance.
•
Patient plate continuity monitoring with audible alarm.
•
Distinct audible tones for CUT/BLEND modes and COAG mode with associated
MODE light.
•
Fully regulated isolated output power.
•
Meets or exceeds IEC 601-2-2, second edition.
•
Non-electric pneumatic foot pedal to maximize safety.
•
Disposable patient plate.
•
Disposable handpiece.
•
Disposable electrodes.
•
Output power safety audible alarm with automatic power shut off.
•
Class 1, type BF, protected for use with defibrillator.
•
Membrane switching to maximize cleanliness and ease of use.

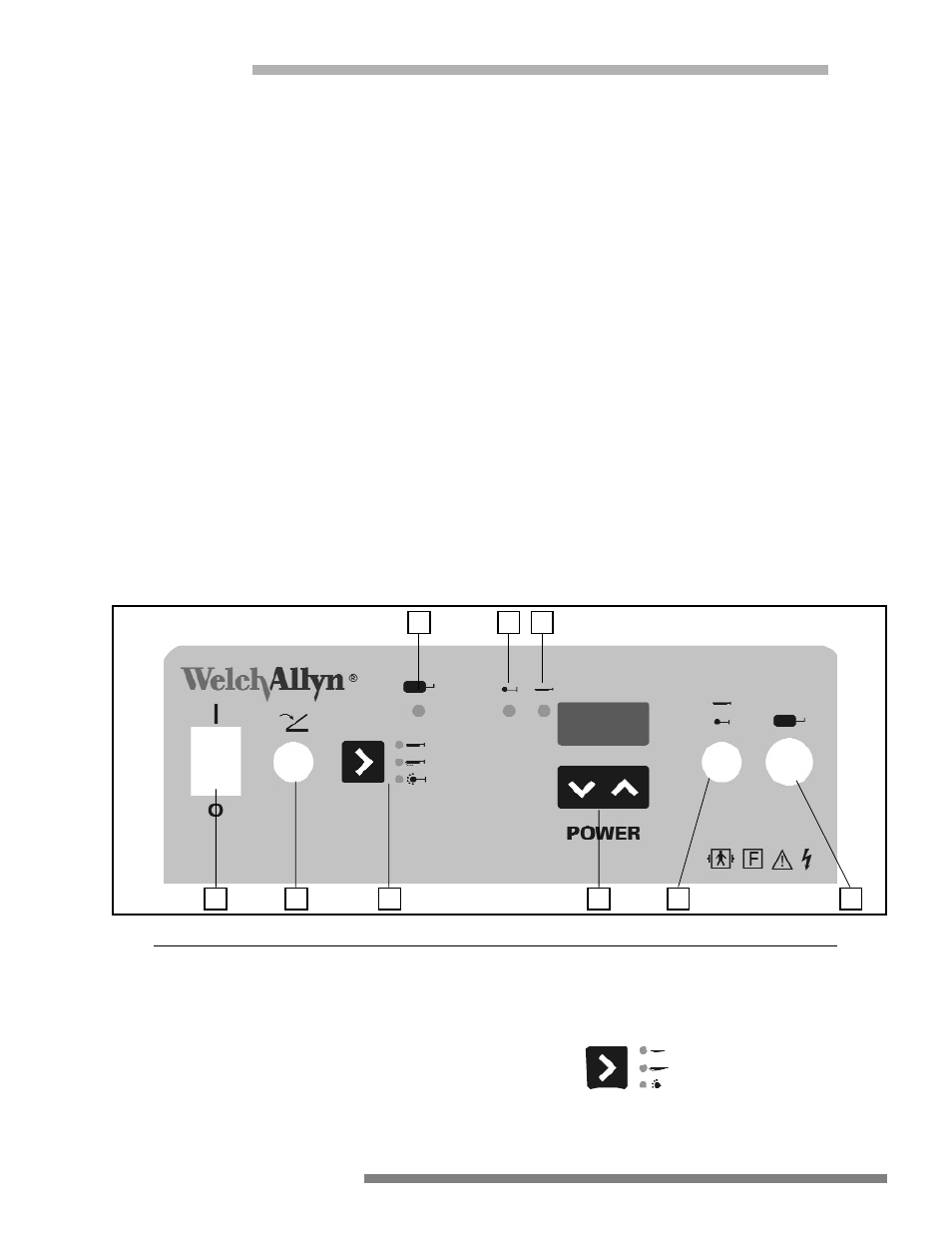

CONTROLS
1. Main
switch
2. Socket for pedal switch
3. Socket for active electrodes
4. Socket for neutral electrode
5. Warning light of neutral
electrode alarm (red)
6. Coagulation light (blue)
7. Pure cut and blend light (yellow)
8. Mode
control:
9. Power
control
II. SYSTEM
FEATURES
1
2
8
9
3
4
7
6
5
Pure Cut
Blend Cut
Coag
10
Electrosurgical Unit
