CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. F 14 / 26
2. Installation
Before using the system, the CardioPerfect Pro cardiograph needs to be connected to the
computer and the software must be properly configured.

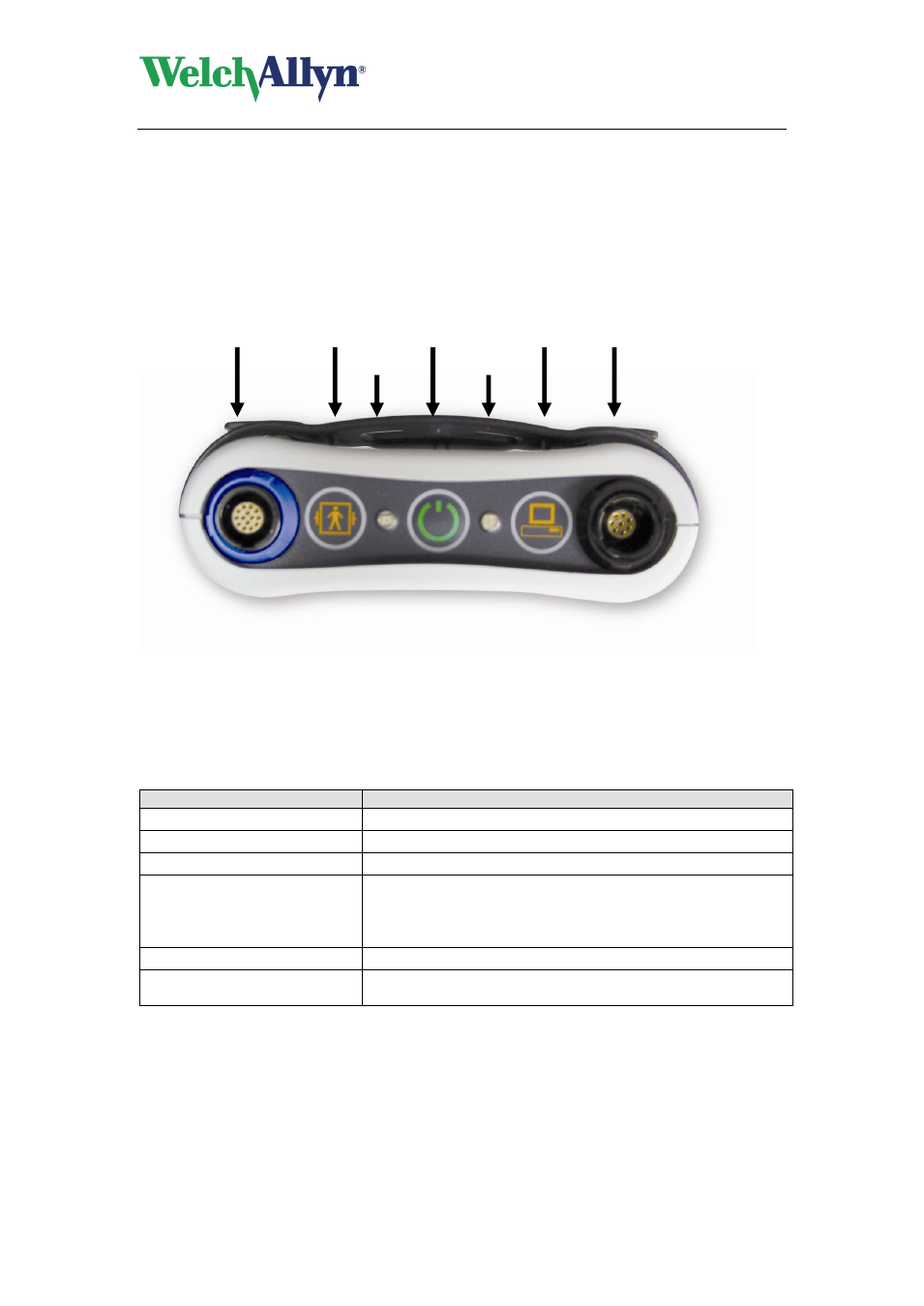

Figure 1 Front view CardioPerfect Pro Cardiograph
Figure 1 is a front view of the CardioPerfect Pro. A description of the items indicated is given
in table 1.
Table 1 Description of CardioPerfect Pro Cardiograph front panel.
DESCRIPTION EXPLANATION
Patent Cable Connection Connection for the patient cable
Type BF Symbol IEC symbol, type BF equipment, defibrillator proof
On/Off Switch Manual switch to switch on cardiograph
LED Power indicator, red indicates battery is low and needs to
be recharged immediately, green indicates that sufficient
battery power exists to record an ECG, no LED indicates
ECG recording is not possible.
PC Symbol Input for computer cable
PC Interface Cable
Connection Connection for the PC interface cable (Prolink)
Before you can start recordi
ng ECG’s with the CardioPerfect Pro cardiograph, you
need to:
1. Install the applicable software (refer to the Welch Allyn CardioPerfect Workstation
Installation User Manual)
2. Install the hardware, including the required drivers. (Please refer to the Rest manual
chapters 11 & 12 or Stress manual chapters 10 & 11)
3. Configure the software (Please refer to the Rest manual chapters 11 &12 or Stress
manual chapters 10 & 11)
Type BF Symbol On/Off Switch PC Symbol PC Interface Cable Connection Patient Cable Connection
LED LED
