Directions for Use 17

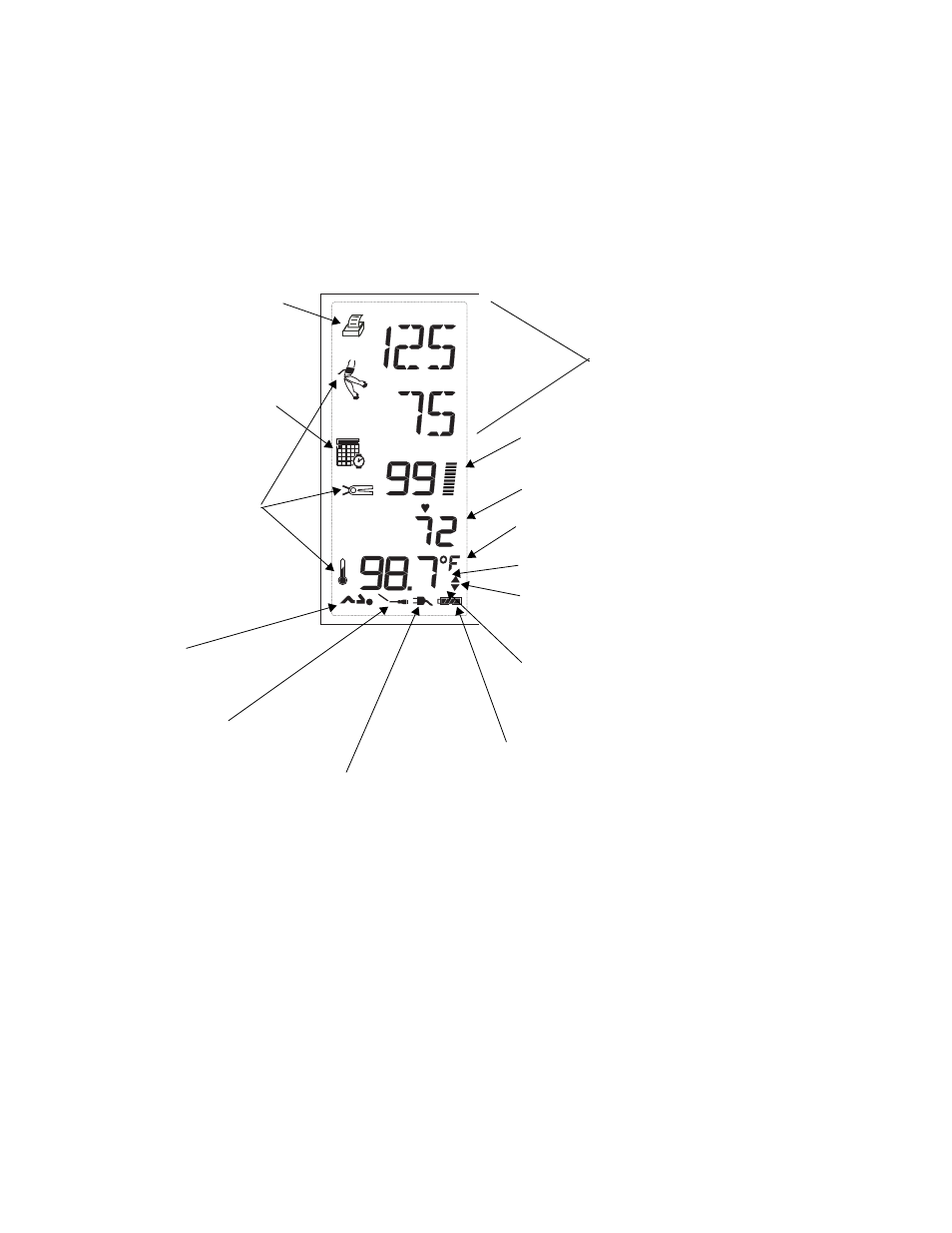

LCD (Liquid Crystal Display)
The LCD may indicate any of the following: systolic blood pressure (mmHg or kPa),
diastolic blood pressure (mmHg or kPa), temperature (
F or C), thermometer mode,
pulse rate, pulse signal level, SpO
2
, MAP (mmHg or kPa), and battery charge level.
.
SpO
2
S S mm g
min
M
P
IA mm g
Systolic and Diastolic display:
if MAP is turned on, the screen
toggles between the systolic and
diastolic values, and the word
“MAP” and the MAP value.
SpO
2
Display: shows the percent saturation of arterial
hemoglobin (for devices with SpO
2
only).
Pulse Display: shows the pulse rate.
Temperature Display and Indicator: shows the
temperature in Fahrenheit or Celsius (for devices with
SureTemp only).
Thermometer Mode icon:
shows temperature mode (for
devices with SureTemp only).
Icon not used.
Out-of-range indicator: shows the patient’s temperature
reading above or below the measurement range limits (for
devices with SureTemp only).
Temperature Probe Problem:
indicates a temperature probe problem
(for devices with SureTemp only).
Battery Charging: indicates the device is
powered through the AC power transformer.
Monitor Mode Temperature: indicates the thermometer is
in Monitor Mode (for devices with SureTemp only).
Battery Level indicator: displays the battery charge level.
Measurement Indicator:
displays the blood
pressure, SpO2, or
temperature icon as Spot
Vital Signs is taking the
respective measurement.
Date/Time: indicates that the
user must set/re-set the
current date and time.
Option no longer available.
